Eugene Color Camera Accessories sku-11929471449 48MP

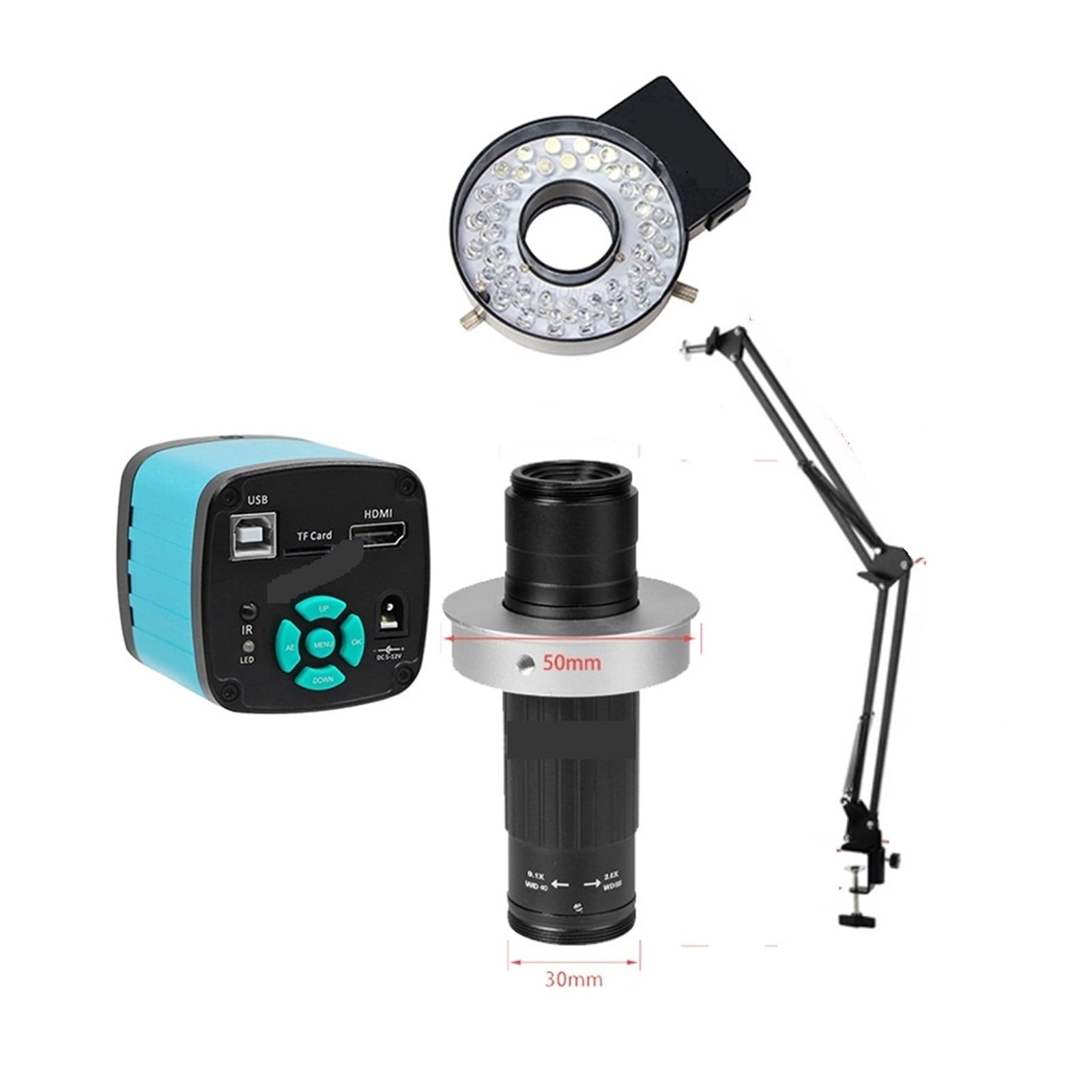

Eugene Color Camera Accessories item sku-11929471449 is a 48MP USB industrial microscope camera for inspection, soldering, repair, coin inspection, laboratory work and use with microscopes, optical instruments, and measurement and analysis instruments. The camera has a 48 megapixel sensor, USB2.0 two-output capability, HDMI/USB output and a cantilever stand. It captures still images and live video. Video output is 1920*1080 at 60F/S. MOV recording options are 4K (25fps), 2K (30fps), 1080P (60fps) and 720P (60fps). Recording 4K or 2K video requires an SDHC class10 TF card; the TF card interface supports a maximum of 32G. Still-image options are 48M 8000X6000, 38M 7168X5376, 26M 5888X4416, 20M 5120X3840 and 16M 4608X3456. Supported monitor aspect ratios are 16:9, 16:10 and 4:3, with 50Hz or 60Hz frequency and mirroring support. Grid options include 15 horizontal lines, 15 vertical lines and a central scale line, with selectable colors and size adjustments. The power supply is 5-12V 1A. The C-MOUNT lens is specified as 1X-130X, with a 50mm-1000mm working distance, a 1 : 15 zoom ratio and 0.13-2X magnification, or about 1-130X on the display. The view field is 4.2mm*2.4mm at maximum magnification and 130mm*70mm at minimum magnification. Lens dimensions are 30mm in diameter by 99mm in length. Available languages are Chinese and English.
