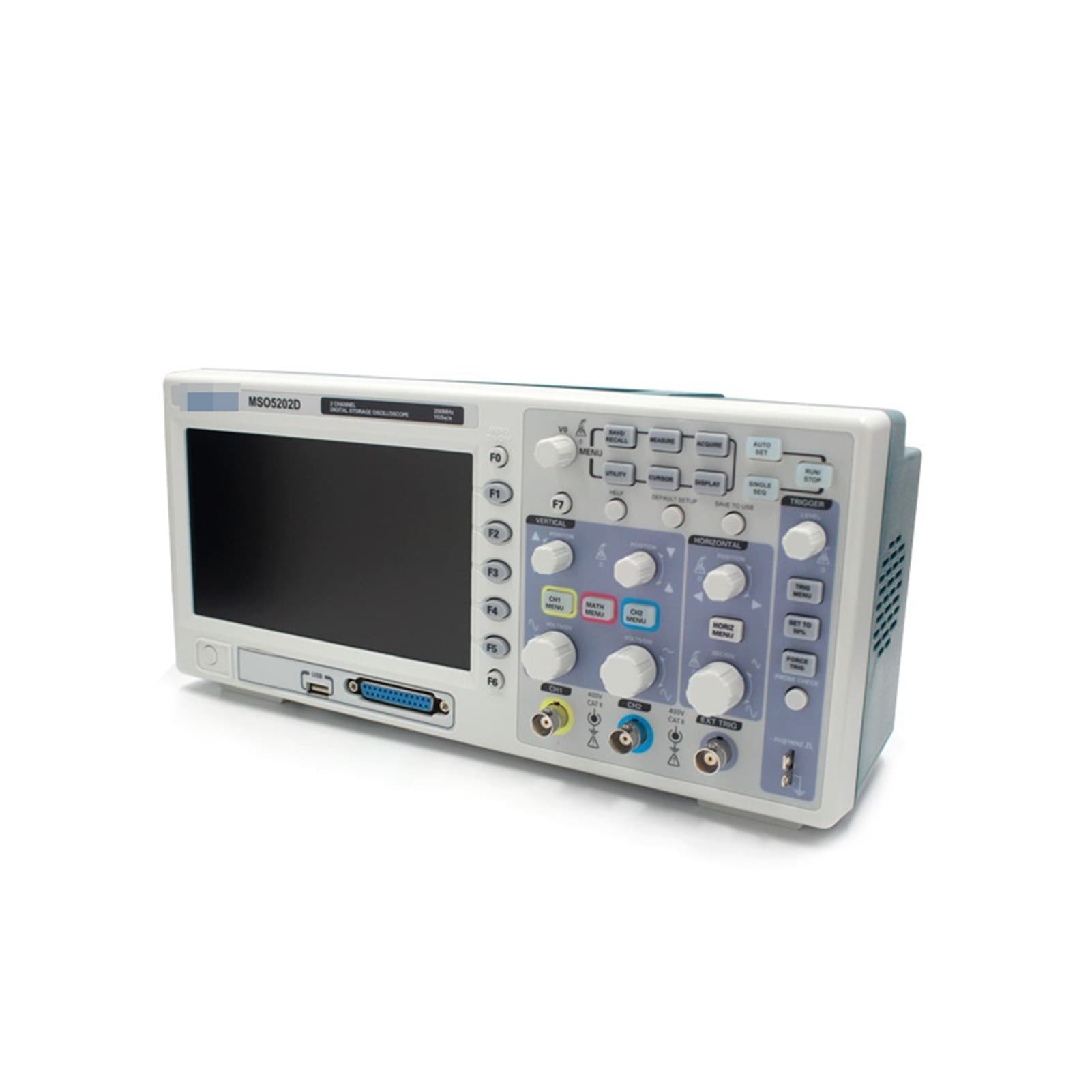

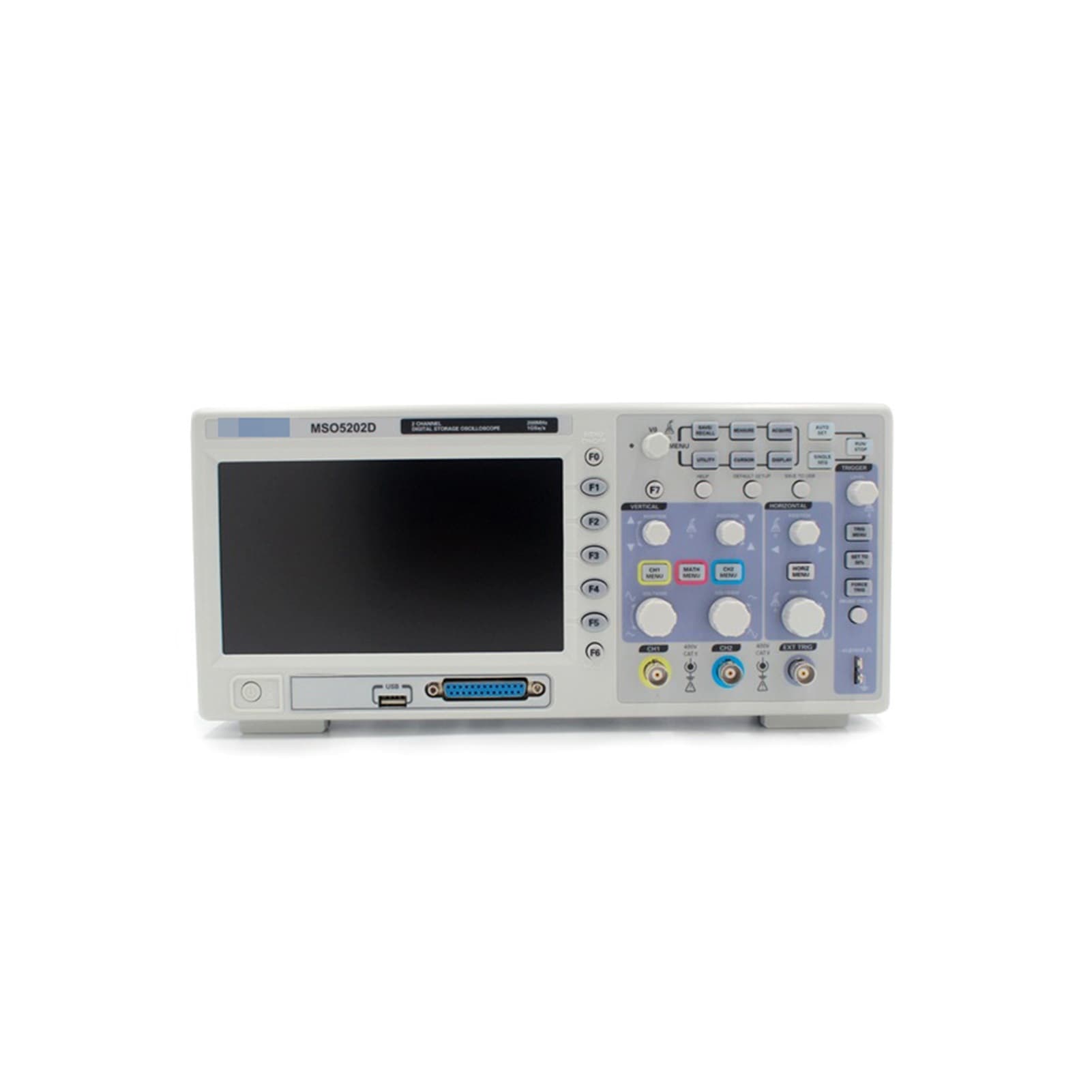

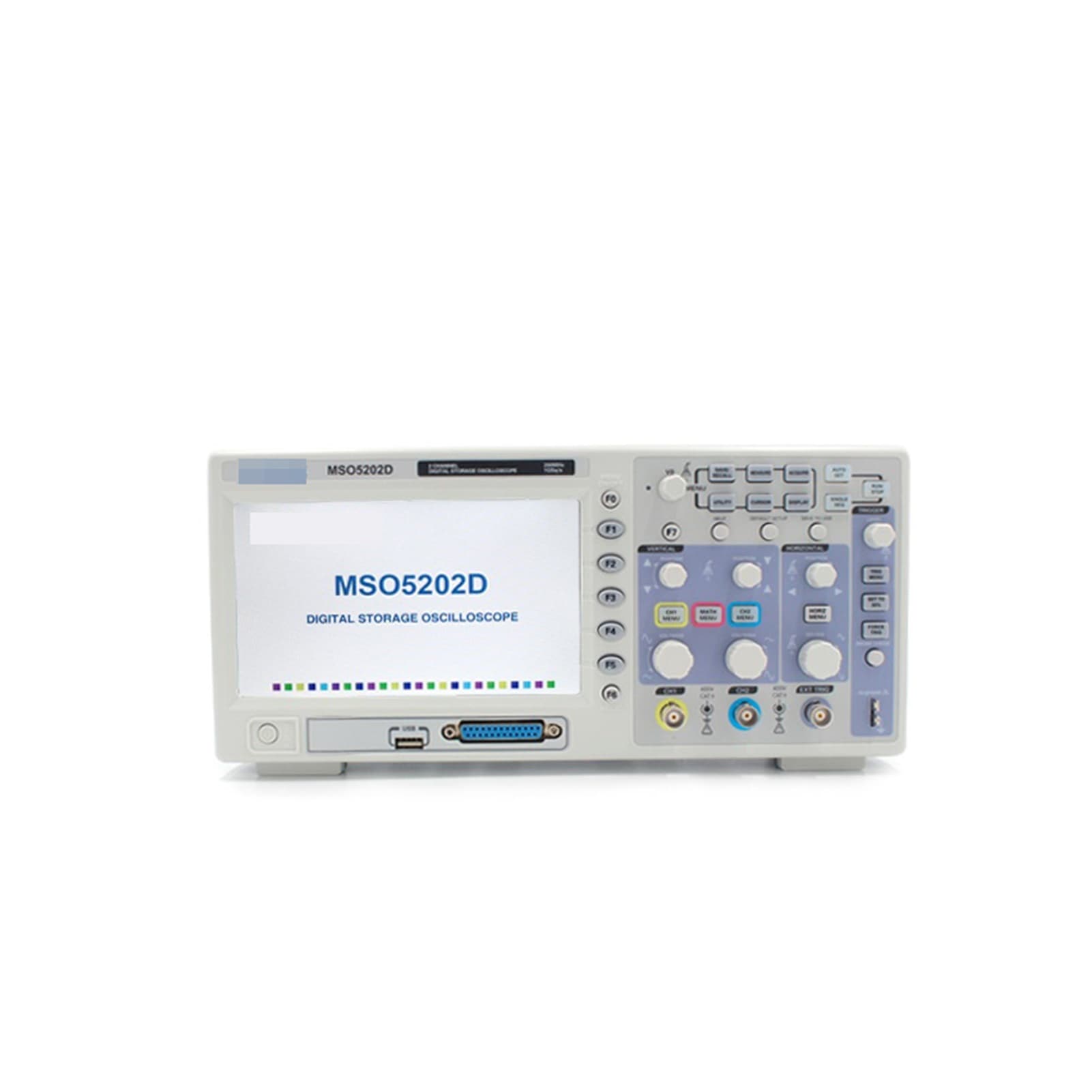

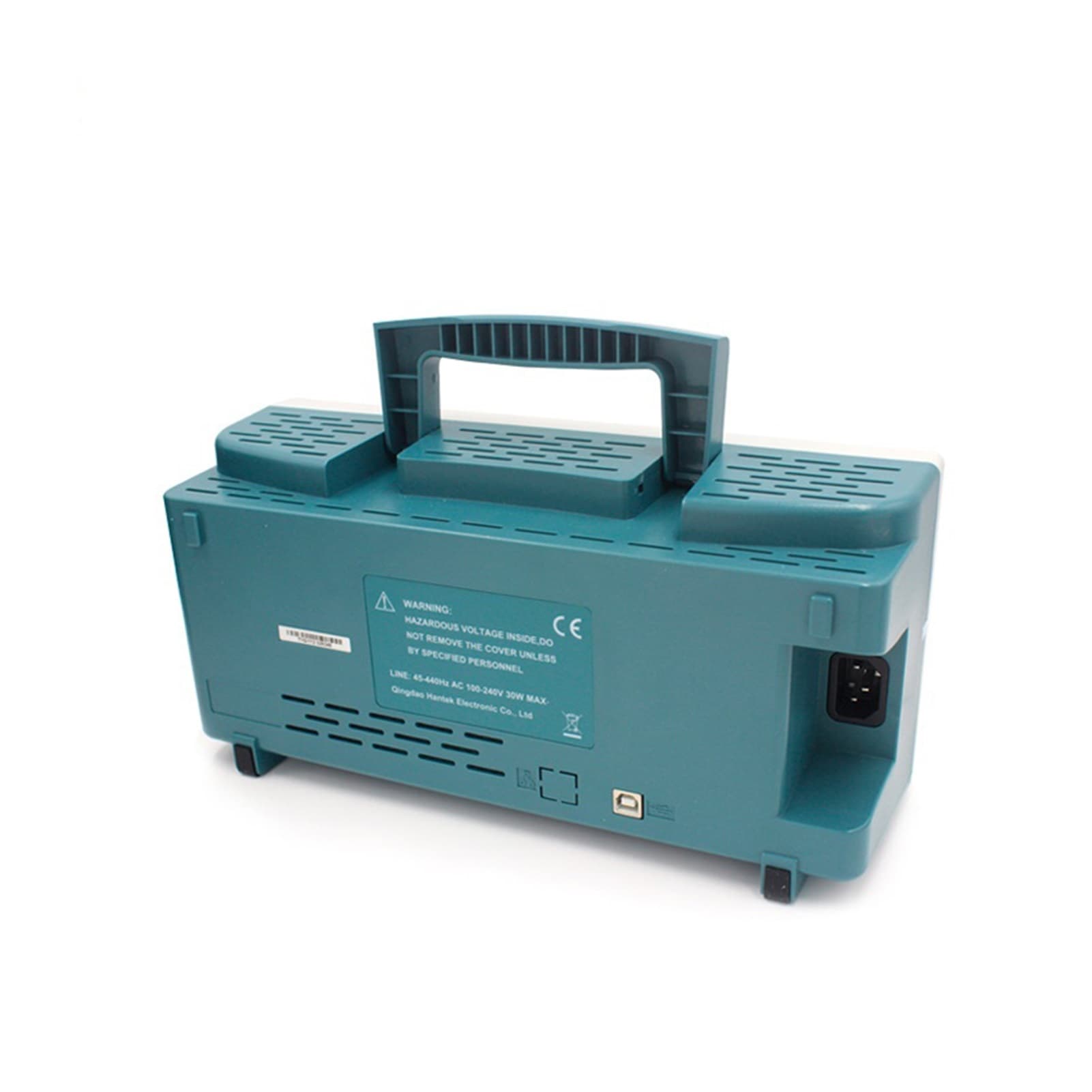

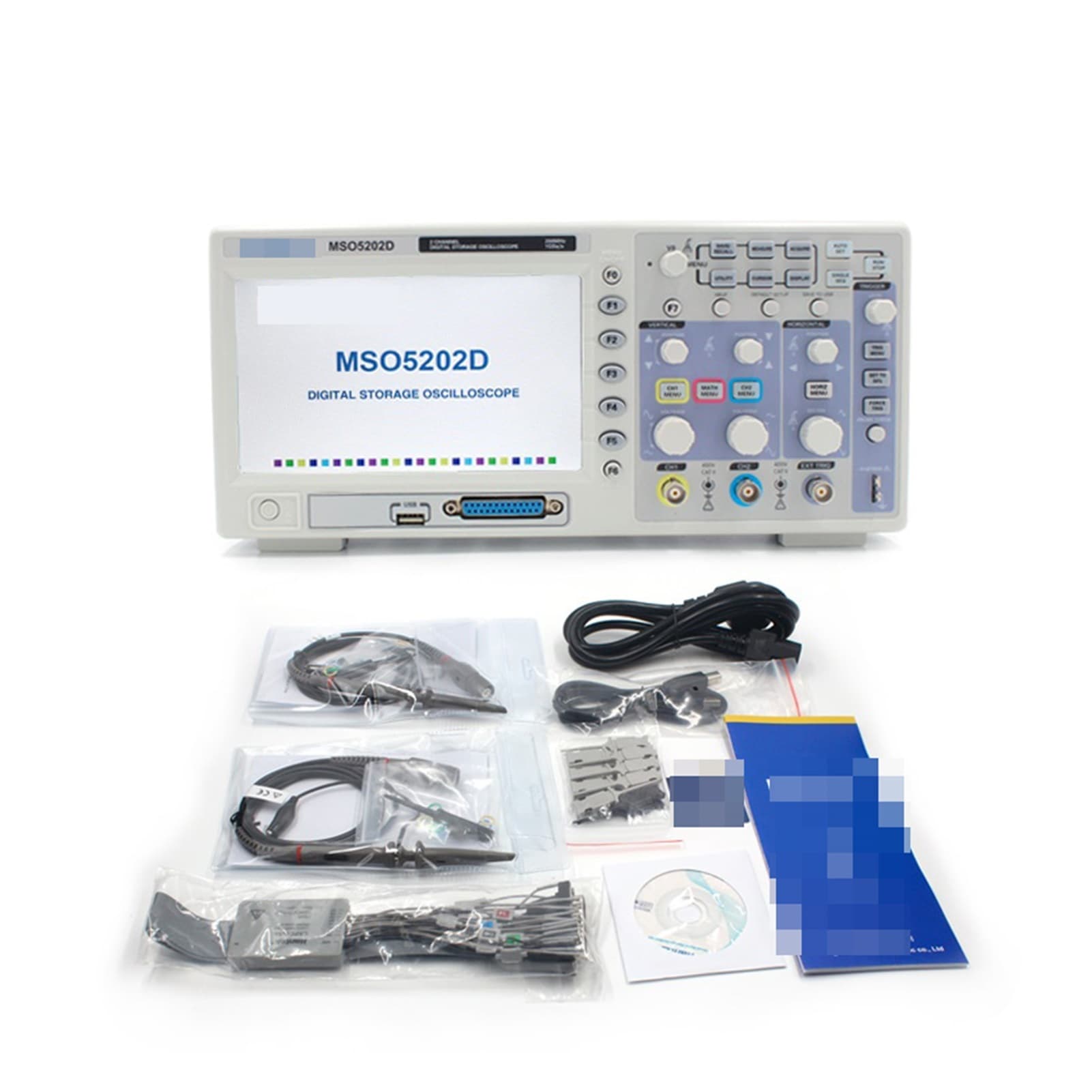

3-in-1 200MHz 2CH 1GSa / S Oscilloscope + 16CH Logic Analyzer + 2 Analog Channels + External Trigger Channel

MSO5202D 200MHz Oscilloscope & 16Ch Logic Analyzer 2in1 Product Details MSO5000D Series Mixed Signal Oscilloscope; Bandwidth:60-200MHz; Real Time Sample Rate:1GSa/s;Record Length: 1M; Large (7.0-inch) color,WVGA(800x480); 16 channels Logic Analyzer,500MSa/s sample rate; Power Trigger mode: edge/pulse width/line selectable video/slop/overtime etc. Feature: 200/100/60MHz bandwidth 1GSa/s Real Time sample rate Large (7.0-inch) color ,WVGA(800x480) Record length up to 1M Trigger mode: edge/pulse width/line selectable video/slop/overtime etc. USB host and device connectivity, standard Multiple automatic measurements Four math functions, including FFTs standard Bandwidth 200MHz 100MHz 60MHz Channel 2 Real-Time Sample 1GSa/s Equivalent Sample 25GSa/s Memory Depth 1M Rise Time 1.7ns/3.5ns/5.8ns Time Base Accuracy ±50ppm Time Base Range 4ns-40s/div 8ns-40s/div 8ns-40s/div Video Help -- SD card -- Input Impendance 1M VOLTS/DIV Range 2mV/div-5V/div A/D Converter 8 bit Position Range ±50V(5V/div), ±40V(2V/div-500mV/div), ±2V(200mV/div-50mV/div),±400mV(20mV/div-2mV/div) DC Gain Accuracy ±3% for Normal or Average acquisition mode, 5V/div to 10mV/div; ±4% for Normal or Average acquisition mode, 5mV/div to 2mV/div Bandwidth Limit 20MHz Trigger Types Edge, Video, Pulse, Slope, Over time, Alternative,Code-type, Duration, Queue, Repeat Trigger Source CH1, CH2, EXT, EXT/5, AC Line Math +,-,x,÷,FFT Cursor Measurement Voltage difference between cursors: V; Time difference between cursors: T; Reciprocal of T in Hertz (1/T); 7" 16K Color LCD, 800*480 dots Size 313mm x 108mm x 142mm Weight 2.08KG Standard Probe PP200x2 PP150X2 PP80X2 Select Model Bandwidth Channels Sampling rate Other MSO5000D Series 200/100/60MHz 2CH+16CH(LA)+EXT 1GSa/s(Analog) 500MSa/s(LA) 7powerful trigger function, 1M Record Length, USB interface system upgrade, 16CH Logic Analyzer, 7'' LCD WVGA 800*480; VGA Optional DSO5000P Series 200/100/70MHz 2CH + EXT 1GSa/s 40K Record Length, USB interface system upgrade, 7'' LCD WVGA 800*480, Powerful trigger function; VGA Optional DSO5000B Series 200/100/60MHz 2CH+EXT 1GSa/s 1M Record Length, USB interface system upgrade, 7'' LCD WVGA 800*480, 7powerful trigger function; VGA Optional DSO5000BM Series 200/100/60MHz 2CH+EXT 1GSa/s 2M Record Length, USB interface system upgrade, 7'' LCD WVGA 800*480 7powerful trigger function; VGA Optional DSO5000BMV Series 200/100/60MHz 2CH+EXT 1GSa/s 2M Record Length, Video Help function; Built in 4G SD Card 7'' LCD WVGA 800*480 7powerful trigger function, USB interface system upgrade; VGA Optional MSO5074F(G) 70MHz 8CH(LA)+4CH+ 12bit Pattern Generator 1GSa/s(Analog) 500MSa/s (LA) DSO/LA/AWG/ Pattern Generator 1M Record Length, 16CH Logic Analyzer, USB interface system upgrade 7'' LCD WVGA 800*480 powerful trigger function;
