2 Axis Linear Scales Set/Kit SDS2MS Digital Readout 5U TTL For Lathe Mill Machine Encoder Dimensions 100MM To 1000MM

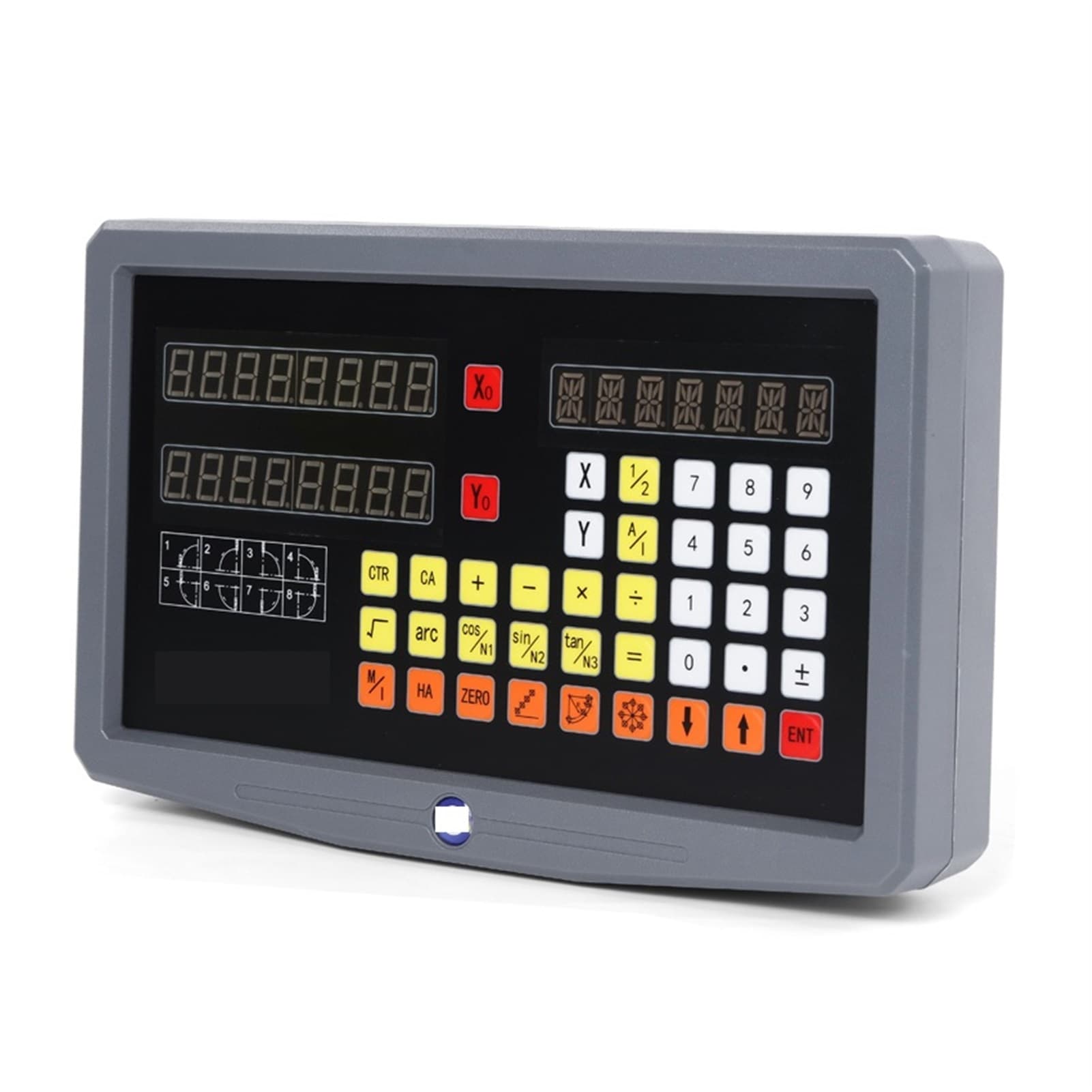

SDS2MS Dro Digital Readout System Functions 1:Zero clearing 2:Reset 3:mm/inch mode 4:ABS/INC coordinate conversion 5: 200sets sub datum 6:Power off Memory; 7:Center of 1/2 8:Liner error compensation 9:Sleepping mode 10:Clear 200 sets Sdm datum; 11:ABS/INC mode 12:Calculator 13:Drilling of circumference 14:Drilling of oblique line 15:Machining of inclined plane 16:Machining of circular arc 17:Lathe function(match) 18:Rectangular lumen gradual processing 19:Digital filtering 20:Vibration filtering 21:Radius /Diameter fucntion 22: Lathe function SDS2MS Digital Readout System Parameter 1.Voltage Range: AC 80V~250V/50HZ~60HZ 2.Acceptable Signal: TTL 3. : DB9 4.Acceptable resolution: 10um ,5um ,2um ,1um , 0.5um. 5. If yo order only one piece dro, please confirm your old linear scales can work with our dro. SDS2MS Advantage 1. It is new 2 axis SDS2MS, smaller, better performance. Take less space on your machines. 2. can widely used for mill, lathe, drilling, boring machine. 3. We offer different type suite for different countries if need. 5U Linear Scals/Linear Encoder/Linear Sensor/Linear Ruler Parameters 1. Travel (measuring) length: 0-1000mm / 0-40inch 2. Total (overall) length: Travel length + 140mm (0-1140mm) 3. : DB9 4. Resolution: 0.005mm(5u), {we can offer you 1u(0.001mm), 0.5u(0.0005mm), need extra fee.} 5. Input voltage: 5V 6. Grating pitch: 0.02mm (50LP/min) 7. Cable length: 3 Meter 8. Normal size: About 22*34 The Signal of 5u Linear Optical Ruler/Linear Glass Scales/Linear Encoder/Linear Sensor Pin 2 Black 0V Pin 6 Green A Pin 7 Red 5V Pin 8 White B Picture of 5U Linear Scales/Linear Encoders
