Eugene Color DY2015A Hand Tools Tester | sku-12017250815

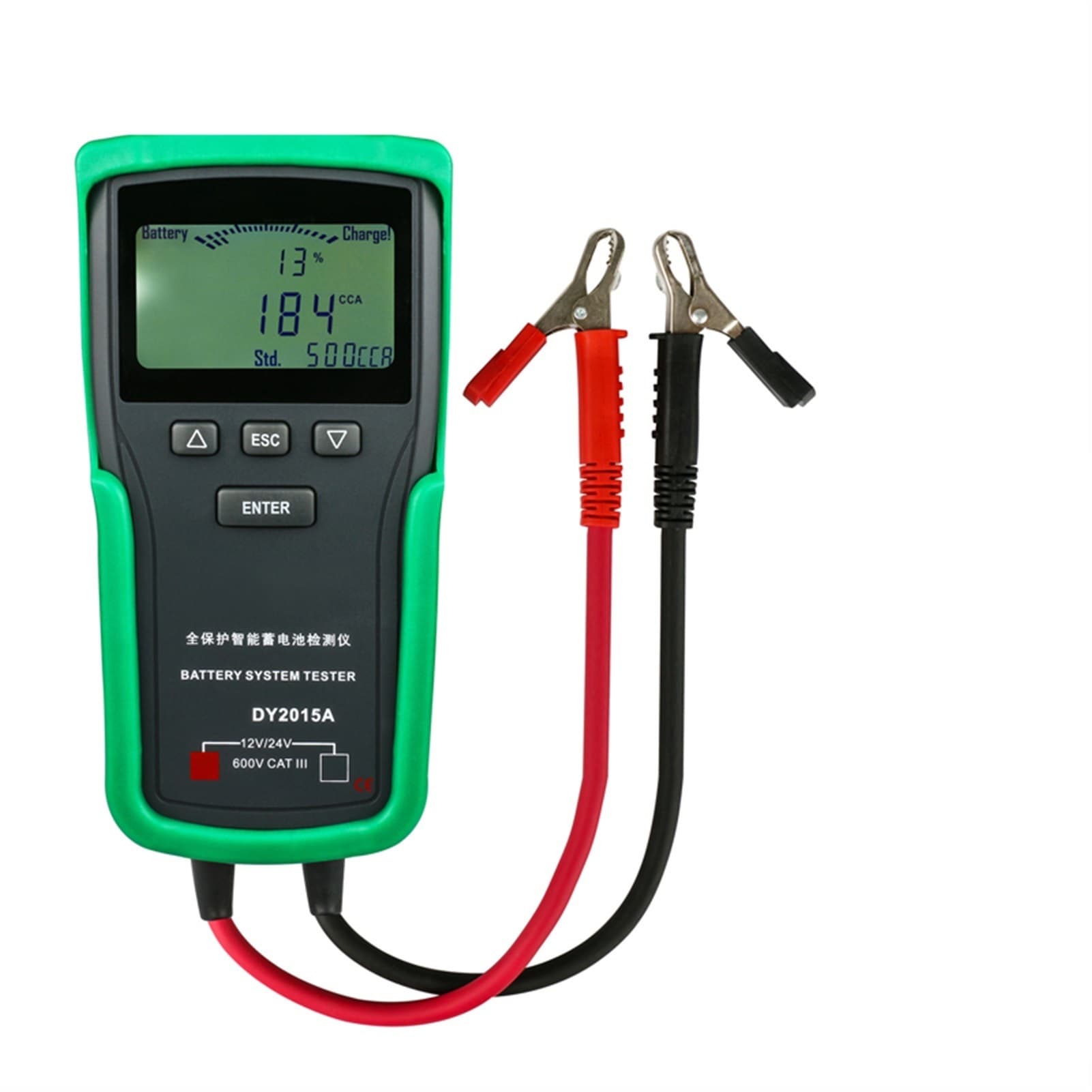

Eugene Color DY2015A battery tester, sku-12017250815, is listed under Hand Tools. It tests lead-acid batteries used in vehicles, trucks and motorcycles, including 12V batteries and 24V systems. Its DC working range is 9V to 35V; do not test batteries connected in series. Supported battery standards are CCA 100-1700, IEC 100-1000, EN 100-1700 and DIN 100-1000.

JIS ratings require comparison with the CCA table in the manual. Battery ratings are generally marked on the battery body. A higher CCA value generally corresponds to lower internal resistance. The tester uses a 4-wire Kelvin connection and has a 700mm cable and 180 x 90 x 32mm dimensions.

It displays voltage, internal resistance, battery condition, state of health and state of charge; it also provides quick, maximum-load, engine-cranking, start-up-load and charging-system tests. Features include Ah input, reverse-polarity and overload protection, and loose-lead detection.

The listed ranges are 0-99m for internal resistance and 0-100% for both SOH and SOC; operating temperature is -18 to 50. The comparison table lists DY2015 for 12V, DC 9-18V, and DY2015A for 12/24V, DC 9-35V; both show a 100-1700CCA battery range and English operation. For starting-system testing, turn the key to OFF first: a result above 9.6V is listed as normal, and a lower result as abnormal.

For charging checks, start the engine. Below 12.8V, or 25.60V on a 24V system, check the generator belt and wiring for wear or a short circuit. Above 15.0V, or 30.00V on a 24V system, check the regulator. Below 13.3V, or, as listed for a 24V system, above 26.60V, check the connections, wires and engine.

The package contains a storage battery tester, rubber protective sleeve, English user manual, quick guide and DIN.EN transcoding table.
