1500 Μm Automotive Paint Tester Paint Layers Meter Paint Meter Layer Thickness Meter

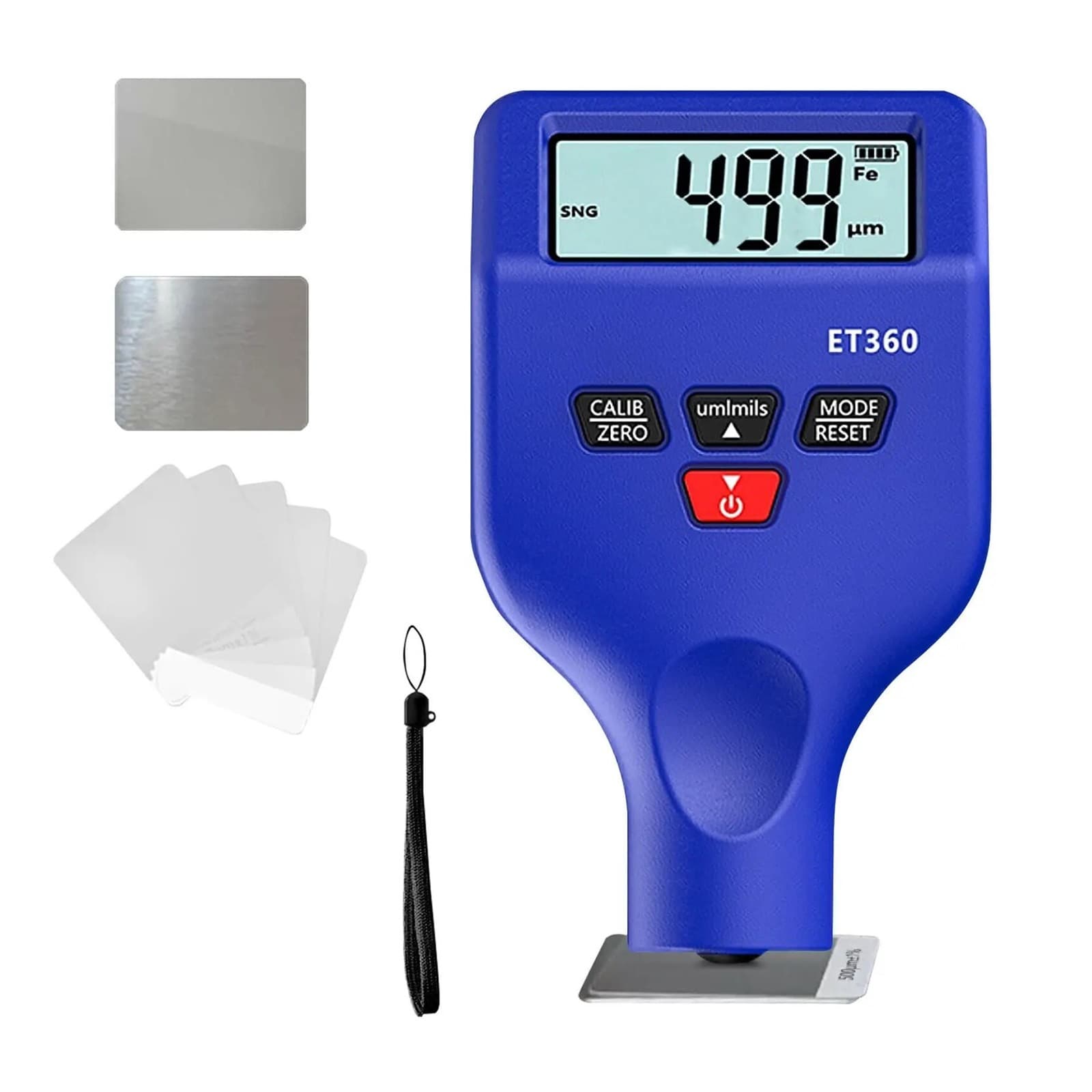

Specification: Name: Coating Thickness Gauge Model: ET360 Shell material: ABS Blue colour Dimensions: 105 to 62.8 to 23.8 mm Weight: 60 g Supply voltage: 2 to AAA batteries Base material of identification: iron, aluminium and zinc Measuring principle: Electromagnetic induction and eddy current effect Display: Digital; Unit m Measuring range: 0-1500 m Resolution: 0.1 m per 0.01 mil Accuracy: ± (3%+ 2 m) /± (3%+ 0.08 mil) Minimum radius of convex curvature: 1.5mm Minimum concave bending radius: 25 mm Minimum diameter of the measuring range: 6 mm Operating environment: Temperature: -20-40 °C (-4-104 °F) Humidity: 20%-90% relative humidity; No strong magnetic field Product list ((battery not included) 1. Thickness gauge 1. Storage bag 1. lanyard 1. Negative iron base 1. Negative aluminium base Calibration sheet: 50/100/250/500 to 1000m 1. Manual
