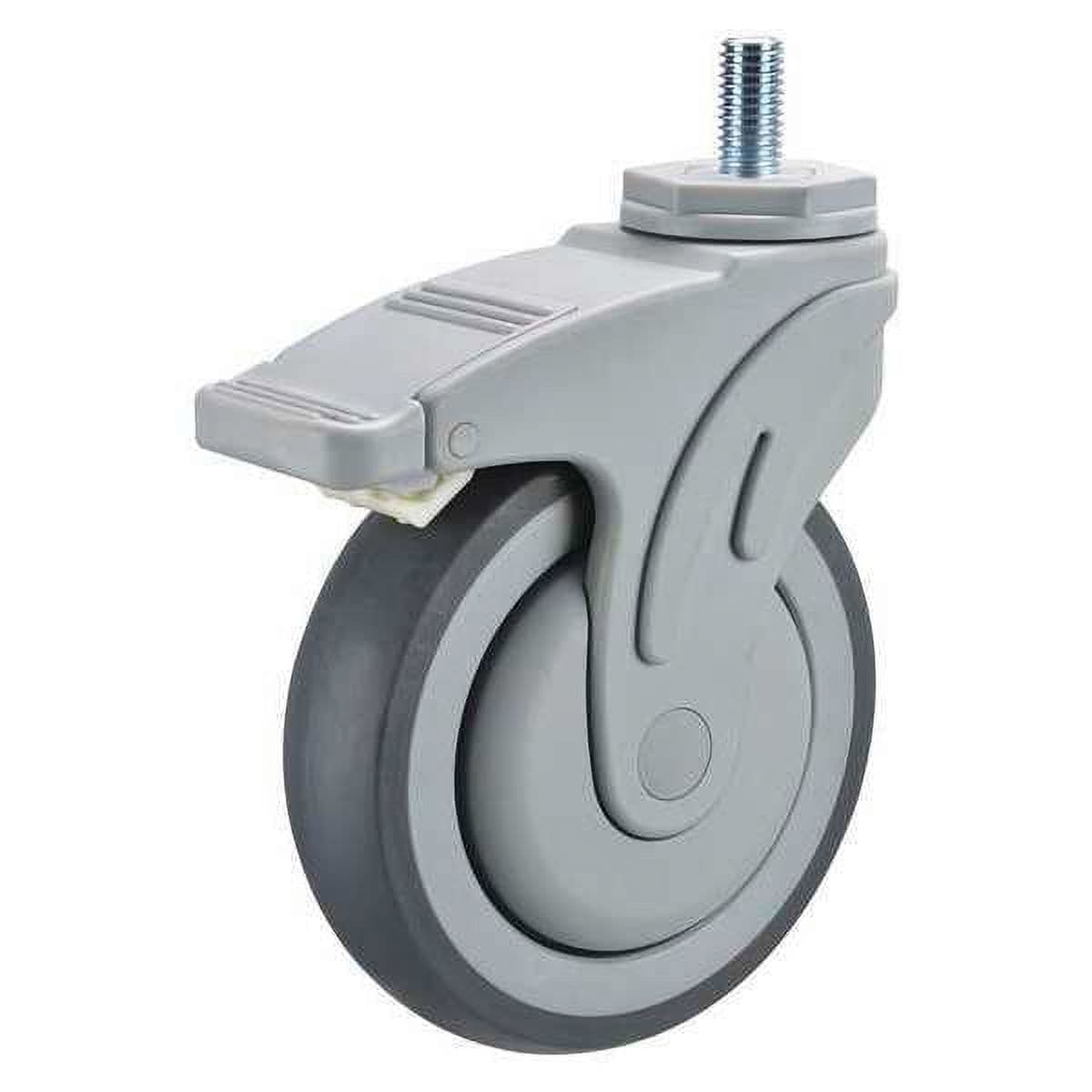

Zoro Select P17S-RP040K-ST2-TB-001 sku-2924846614 Caster

Zoro Select P17S-RP040K-ST2-TB-001 is a P17 Series swivel stem caster with total lock. It is listed as Furniture Hardware under SKU sku-2924846614 and UPC 013080955979. The title lists a 275 lb capacity; the specifications give a 190 lb load rating and load capacity and classify the caster as light duty. The caster has a threaded stem measuring 1/2"-13 x 1 in, with a 1/2 in stem diameter, a 5 13/16 in mounting height, a 5-13/16 in overall height and a 3-5/16 in swivel radius. Its single 4 in gray wheel has a standard tread, a 1-1/4 in width, a polypropylene core and a gray core color. The wheel and tread are described as polyolefin in one specification and thermoplastic rubber in another. The tread is non-marking, has a hardness of 85-95 Shore A and uses precision ball bearings. The caster has a glass-filled nylon body, a nylon frame with a natural light gray finish, a precision ball raceway and a sealed single ball bearing swivel raceway. It includes a total-lock brake and thread guards. The listed replacement wheel is Mfr. No. NG-04QDP-125-05. One temperature range is listed as -4 to 140 degrees F; the operating temperature range is listed as -45 to 180 degrees F. A caster temperature range is marked as available. The caster is specified for retail, industrial and commercial use and has high chemical resistance to many aggressive substances. It is not ESD conductive, has no extended lead, uses inch measurements and meets RoHS and ICWM standards. Country of origin is China, subject to change.
