Dosilkc F22 Black Door sku-15516151054 094759691299

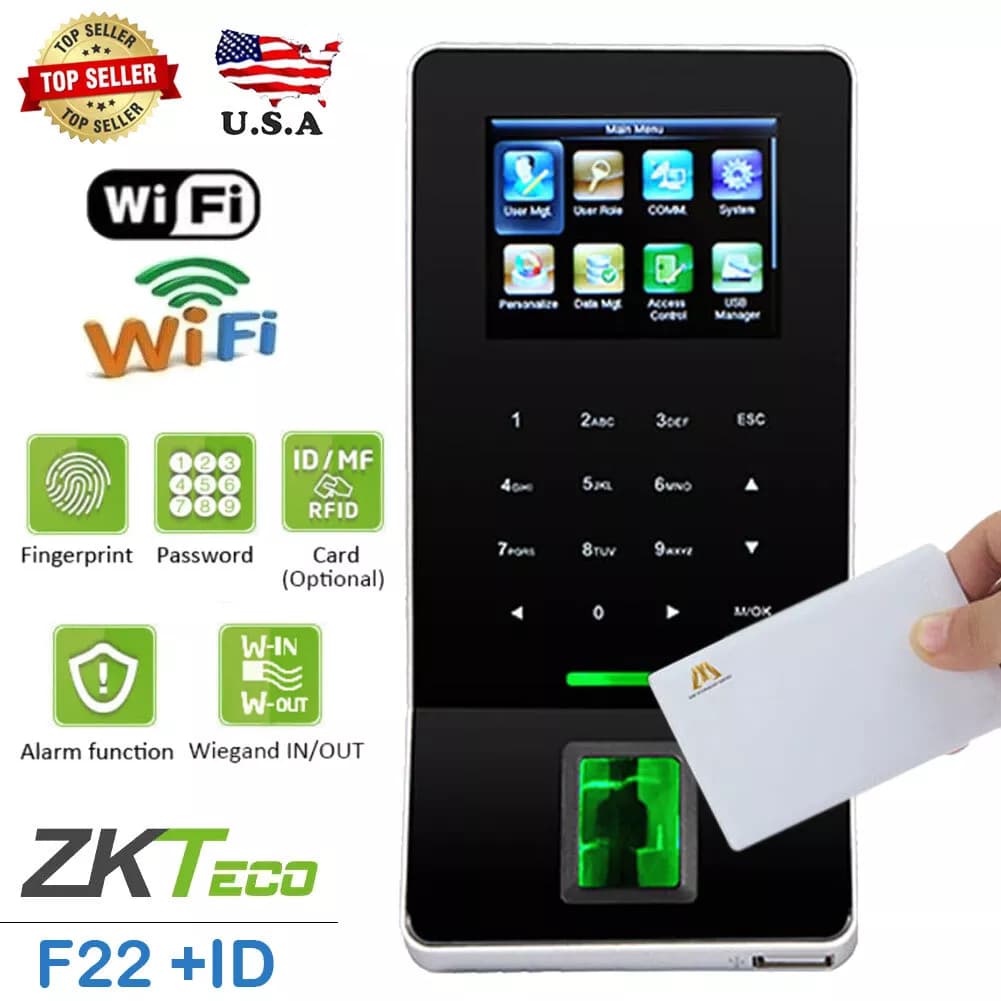

The Black Dosilkc F22 is listed as Surveillance Equipment under sku-15516151054 and UPC 094759691299. This ZK F22 (F22+ID) biometric door access and time attendance terminal has a 2.4-inch TFT color touchscreen with touch keys. It uses an optical fingerprint sensor with Finger V10.0 and holds 3,000 fingerprints and 50,000 logs. An optional ID RF card reader supports 5,000 cards.

Verification options are fingerprint, RF card or PIN alone, or FP&RF/PIN, PIN&FP and PIN&RF combinations. The terminal has an auxiliary input for wired detectors or an emergency switch, anti-passback, and connections for a third-party electric lock, door sensor, exit button and alarm. It supports Wiegand input/output, WiFi, TCP/IP, RS232/485 and USB-host data transfer.

Other functions include DST support, automatic status switching, record query, T9 input, a 14-digit user ID, a scheduled bell and optional ADMS management. Power supply is 12VDC 3A; operating temperature is 0~45℃. Dimensions are 158.5mm×78mm×19.4mm.
