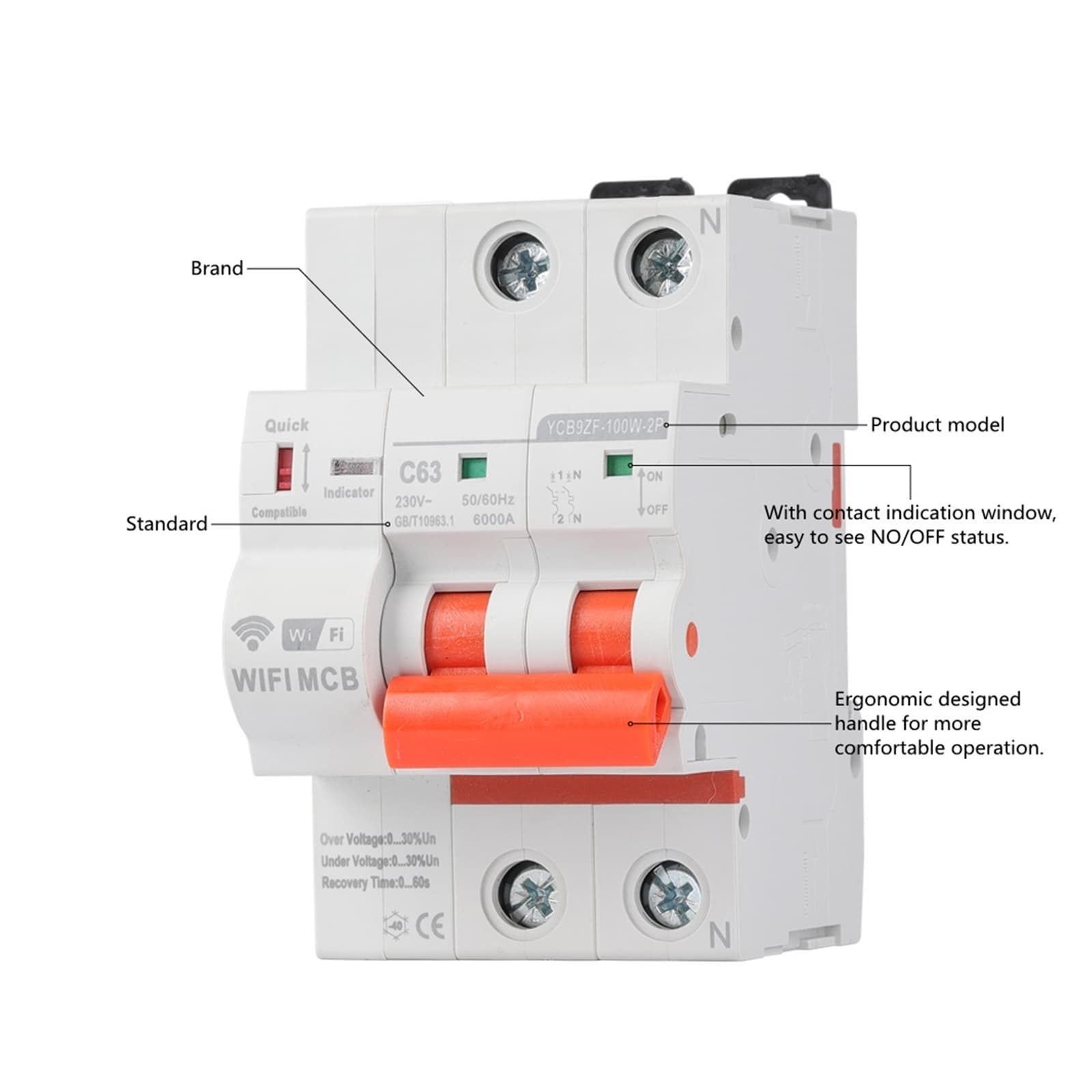

YCB9ZF-100W 2P Smart Circuit Breaker Short Circuit Protection Timed Smart Reclosing Switch Remote Control -------- ,Long Lasting

Type:YCB9ZF-100W Poles:1P/2P/3P/4P Thermo-magnetic release characteristic:C type (Other types can be customized) Rated current In:16A,20A,25A,32A,40A,50A,63A,80A,100A Rated short-circuit capacity Icn:6kA Short-circuit protection:When there is short circuit fault, it can trip within 100ms Over and under voltage protection:When there is over or under voltage fault, it can trip after 3s(0~99s can be set); Percentage can be set for over and under voltage Overload delay protection:according to rated current, meet standard IEC 60898-1 requirement Timing control:Set according to requirements Check:The voltage and switching status can be checked through the APP on the phone Manual automatic integrated control:Mobile phone APP control, can also be controlled through the handle Communication mode:Wireless Related Products:smart breaker,smart circuit breaker,wifi metering circuit breaker,energy monitor,power monitor,power consumption monitor,electric meter,smart meter
