Win Max Diesel Injector Nozzle Tester/ Pop Pressure Tester Dual Scale bar/ psi Gauge

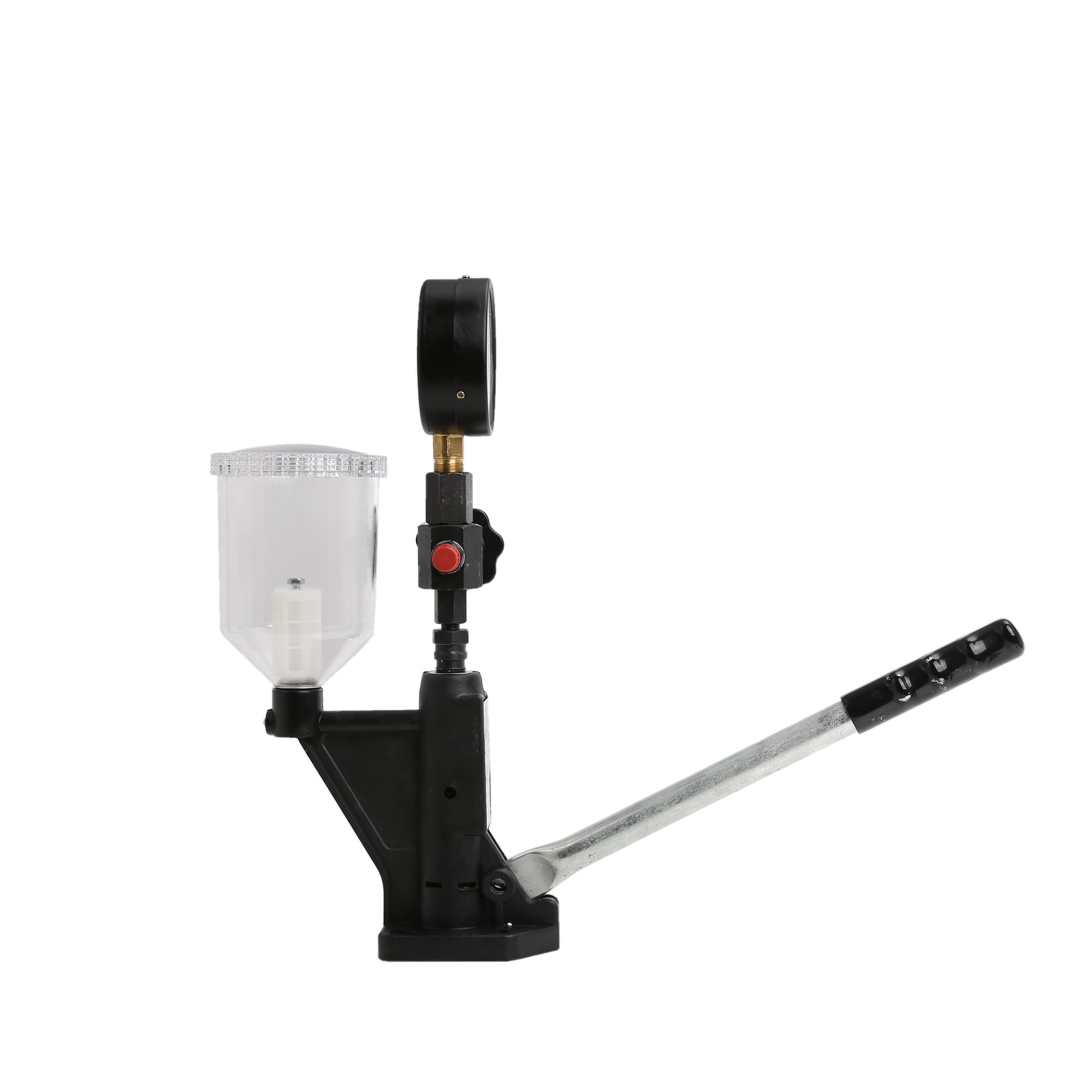

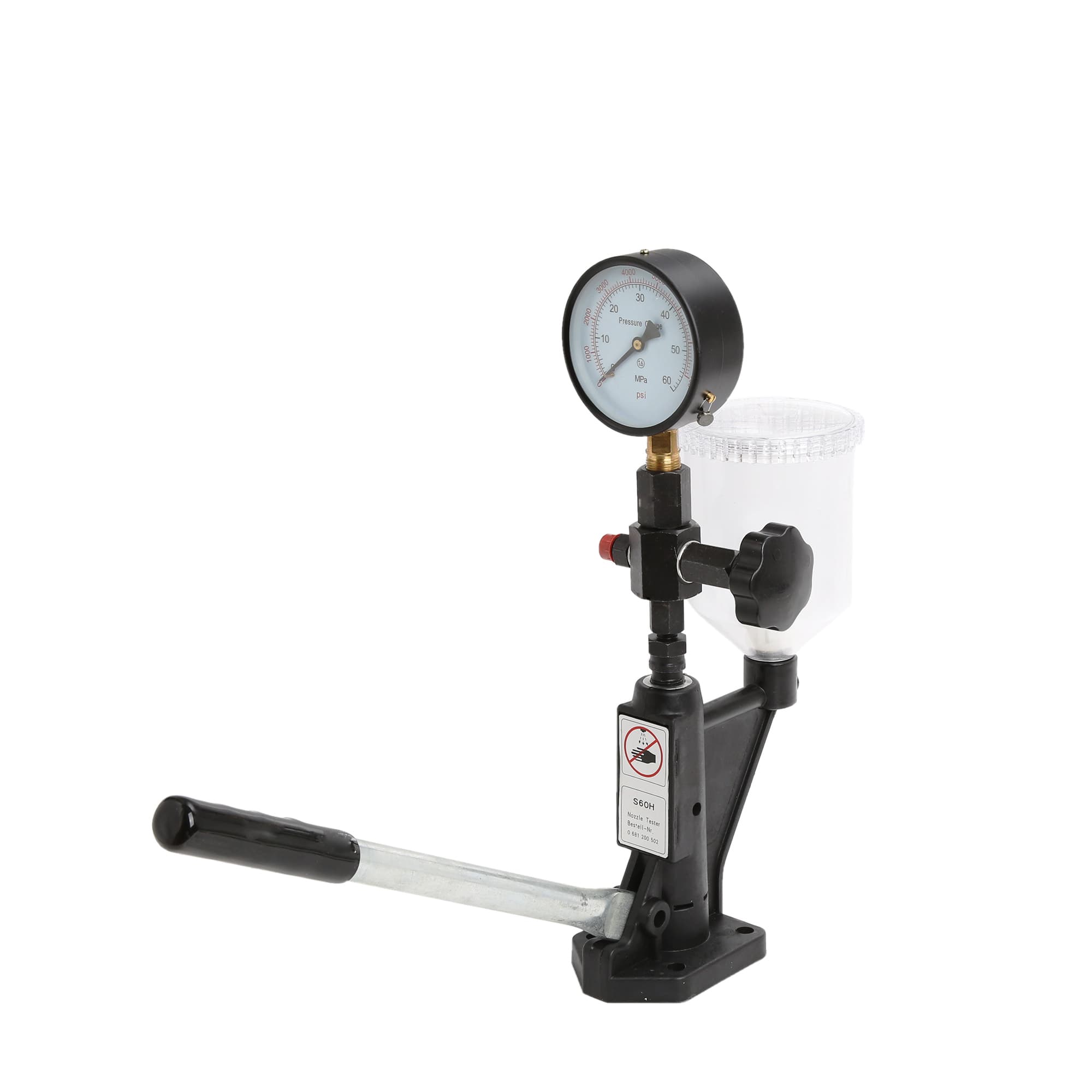

PS-400A type diesel fuel injector tester is a special instrument for the operation test of diesel engine. It is suitable for following performance tests: 1.initiatve injecting press of injector 2.sound of needle valve vibration 3.spraying shape 4.sealing function of needle valve and nozzle body mating pair 5.sealing function in response to press Brass Bourdon tube Pressure gauge - 100 mm Dial, 3/8 " BSP thread Dual Scale Gauge Range:0 - 60 Mpa & 0 - 8000 PSI (See image 2 Above) 2 High pressure pipes 'A' and 'B' type with m.m. size nuts (12 X 1.5) and (14 X 1.5) for connections
