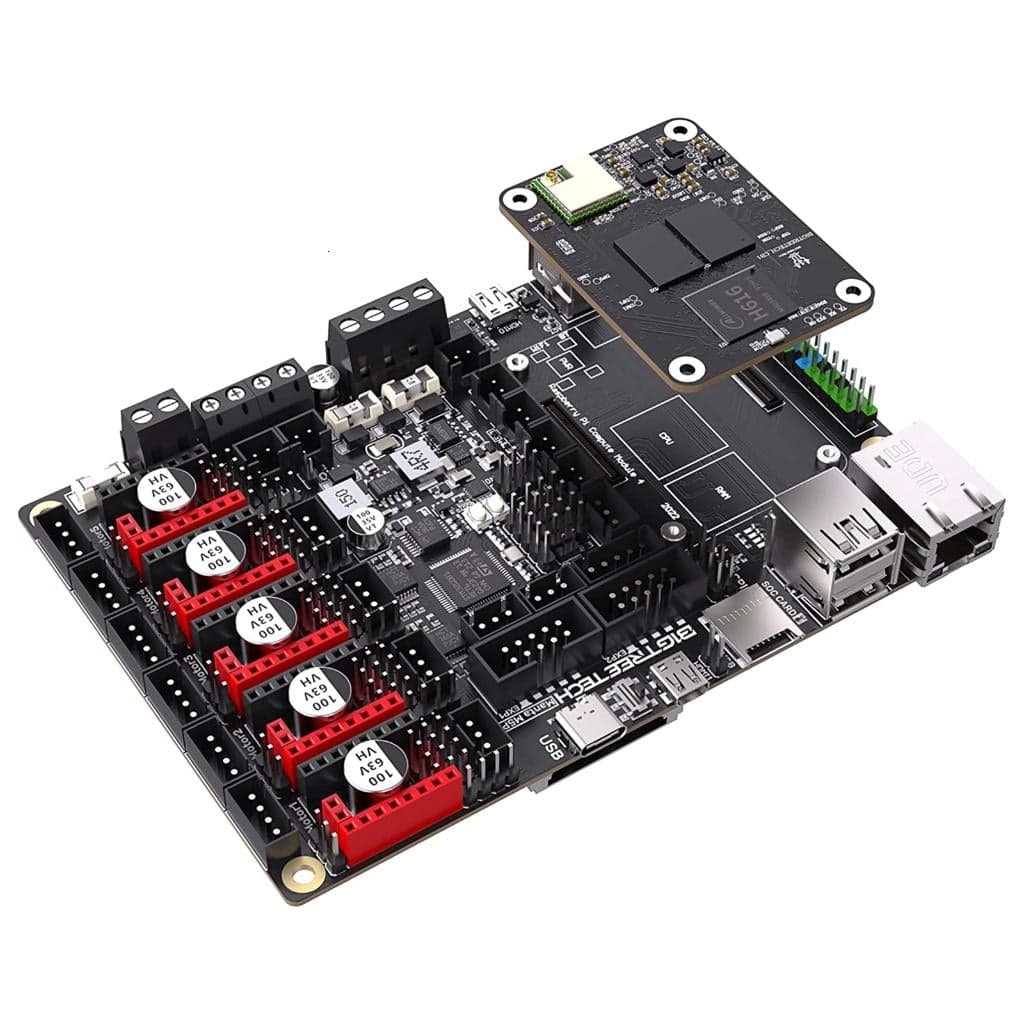

WE-POLUJ BIGTREETECH Manta M5P V1.0 + CB1 V2.2 64Bit Silent Mainboard — Klipper-Ready Drop-in Control Board

Overview: This combo pairs the BIGTREETECH Manta M5P V1.0 control board with the CB1 V2.2 core board so you can run a full Linux environment and install Klipper directly. If the CB1 is not used, the Manta M5P can operate with Marlin firmware instead. CB1 Core Board Details: The BIGTREETECH CB1 is a quad-core, 62bit design powered by an ARM Cortex-A53 @ 1.5GHz processor and equipped with 1GB DDR3 RAM. It supports 100M Ethernet and 100M WIFI, runs Linux (Debian supported) and is fully programmable for DIY projects. High speed and stable operation are core strengths of this module. Display & Camera Connectivity: A built-in HDMI interface lets you send video to BIGTREETECH HDMI 5/HDMI7 Screen using a single HDMI cable. The onboard SPI interface works with SPI touch screens for a responsive, intuitive UI. A Plug and Play USB Camera is supported for wireless monitoring of your 3D prints. Motion Driver & Hardware Upgrades: The board integrates SPI and UART modes for TMC drivers and includes a DIAG pin, all easily selectable with jumpers. It uses a replaceable fuse for simple serviceability and high efficiency Mostfet components to minimize heat generation. Firmware & Updates: MCU firmware can be updated from an SD card, or you can flash using DFU through Klipper’s make flash command. After-sales Support: If you encounter any issues with the BTT Manta M5P + CB1 V2.2 combo, contact us anytime. Our professional technical support team is available to assist.
