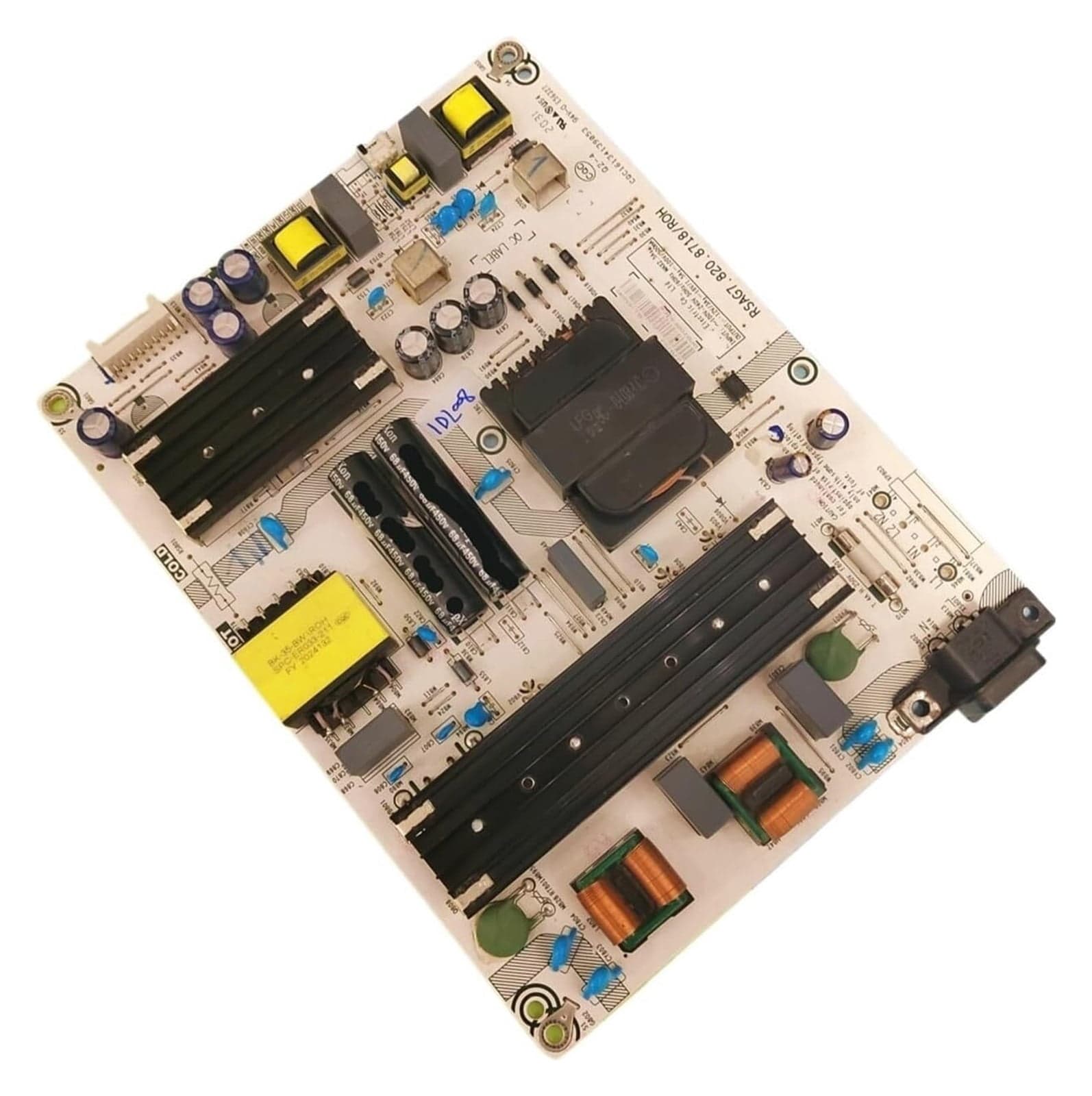

Wasachi TV Power Control Board Replacement for Hisense RSAG7.820.8718/ROH

Overview: Replacement power control board compatible with Hisense RSAG7.820.8718/ROH models. This module converts incoming AC mains into the multiple stable DC voltages required by the TV’s internal circuits and subsystems. Power conversion and functional blocks: The board transforms AC input into several regulated DC rails to feed different components. Its internal layout depends on TV power rating and panel type, but typically incorporates the main power supply, secondary power supply, PFC (power factor correction) circuitry, and a backlight drive circuit. Startup sequencing: The board enforces the correct power-on order for the set. It provides the +5V standby rail first to initialize the CPU and control logic, then brings up the remaining voltages in the proper sequence under CPU control. Thermal and durability design: Because power electronics produce heat, the board is engineered for reliable thermal performance. Common measures include fitted heat sinks, optimized component placement to improve airflow and heat transfer, and the use of low-impedance components to reduce heat generation. Protection features: Built-in safeguards such as overload protection, overtemperature protection, and overvoltage protection help prevent damage during abnormal conditions and extend the service life of the power board.
