VNA-H Vector Network Antenna Analyzer 10KHz-1.5GHz MF HF VHF UHF W/ Shell SD Card Slot Supprt 32G Digital VNA-H Tester ,Signal Generator

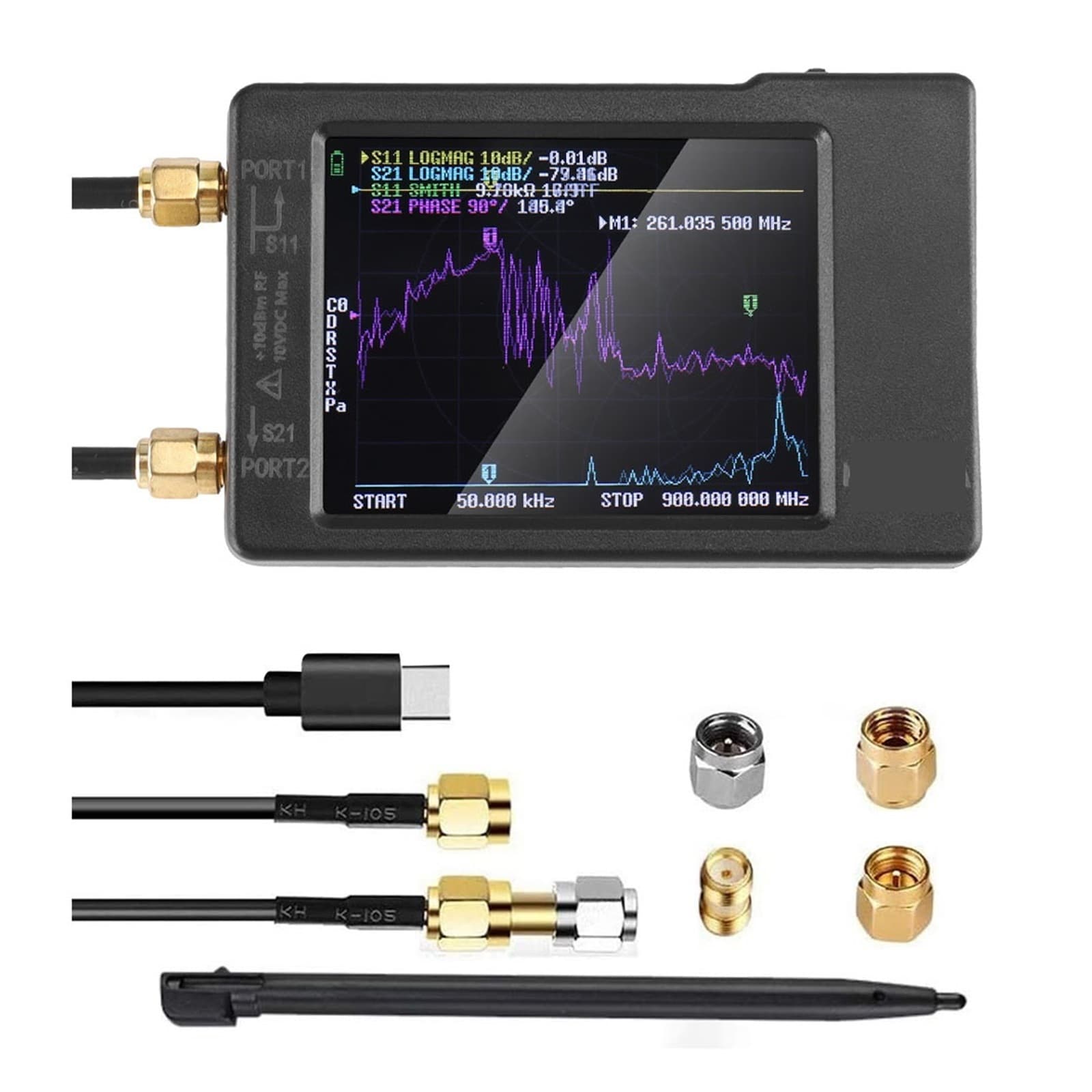

Spectrum Analyzer Specification: - Spectrum Analyzer PCB: 54mm x 85.5mm x 11mm (without the size of connectors, switches) - Measurement Frequency: 10KHz -1.5GHz - Output: -13dbm (maximum -9dbm) <0.5ppm - Measurement Range: 70dB (50kHz-300MHz), 50dB (300M-600MHz), 40dB (600M-900MHz) enable extended firmware) < 1.1 - Display: 2.8 inch TFT (320 x240) - USB Interface: USB Type-C; Communications Mode: CDC (Serial) - Power Supply: USB 5V 120mA, built-in 650mAh electricity, maximum charging current 0.8A - Number of Calibration Points: 101 (Fixed) - Number of Scanning Points: 101 (Fixed) - Display Tracking: 4, Marking: 4, Save Setting : 5 - Measuring S parameters, voltage standing wave ratio, phase, delay, Smith chart and the like Package List: 1X Spectrum Analyzer VNA Host (2.8-inch touch screen and 650mAh battery is included) 2X 20cm SMA Male to Male RG174Cable 2X SMA Female to Female Connector 1X SMA Simple Calibration Kit SHORT 1X SMA Simple Calibration kit OPEN 1X SMA Simple Calibration kit LOAD 1X USB Type-C Data Cable 1X Type-c to Type-c Line 1X Touch Paddle H Spectrum Analyzer Related Products: spectrum analyzer,signal generator,frequency counter,logic analyzer,handheld spectrum analyzer,frequency analyser,usb spectrum analyser,signal analyser,wifi analyzer,ultra spectrum analyzer,antenna analyser,led music spectrum,rf analyzer,radiation meter
