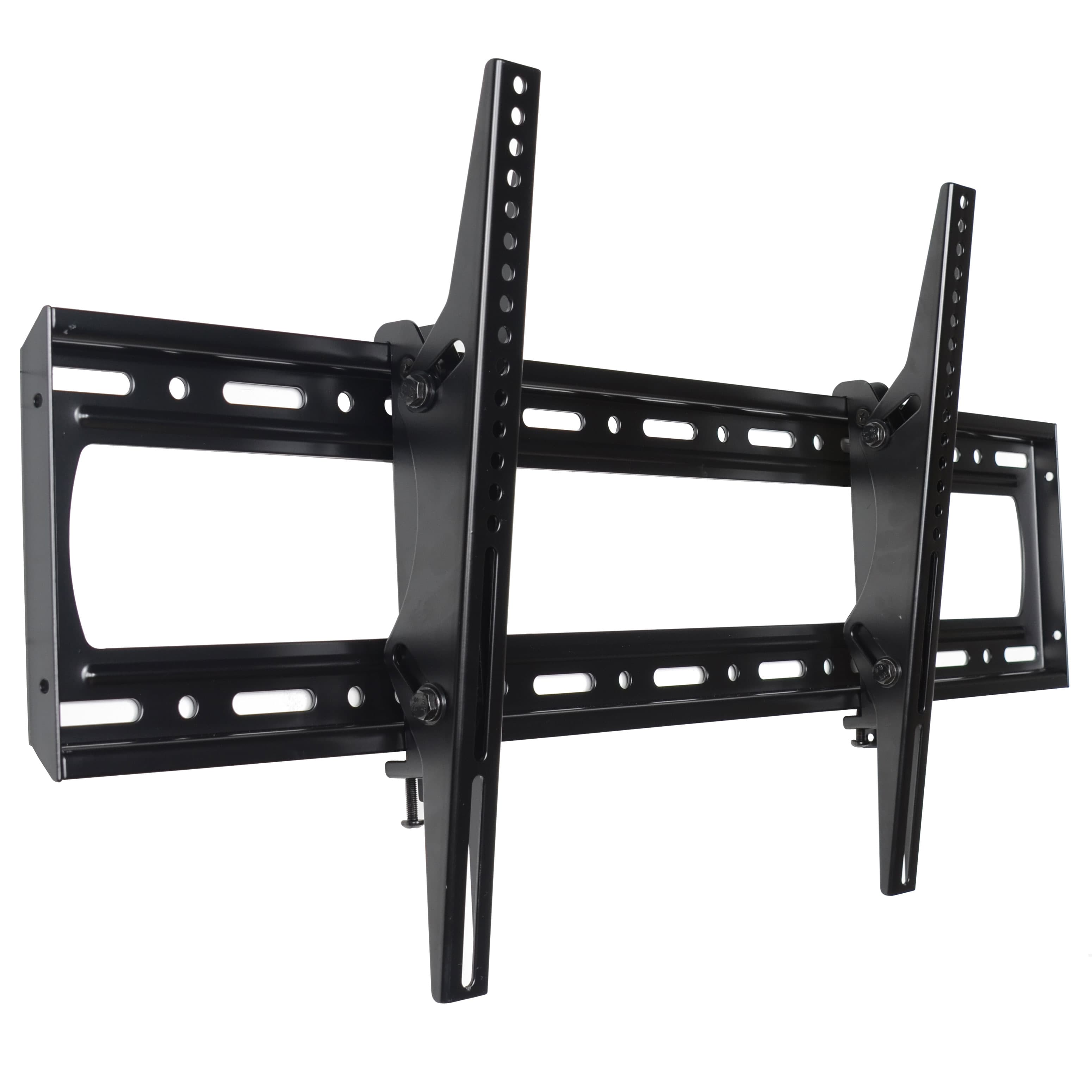

VideoSecu One-Touch Tilting TV Wall Mount for VIZIO 60-90" TVs - Compatible with M70-C3, P702ui-B3, M75-C1, M80-C3

Overview: Heavy-duty VideoSecu wall mount engineered for large-screen LCD, LED and Plasma TVs. Constructed from 2.5mm thick steel with a black powder-coated finish, this bracket supports up to 220lbs / 100kg and fits most 60-90 inch displays (confirm your TV's weight and mounting pattern before purchase). The low-profile design places the back of the TV 2.5 inch from the wall. Tilt and Security: The one-touch tilting mechanism lets you adjust the viewing angle ±15 degrees forward or backward without tools. A lift-and-lock feature secures the TV into place and security screws on both mounting arms lock the screen for added safety. Horizontal movement adjustment allows fine positioning after installation. Cable Management & Installation Features: Large access ports in the wall plate keep cables neatly routed behind the screen. The mount fits standard stud layouts — works with 16" and 24" studs and larger studs spacing up to 34". Supported VESA Patterns: 800x400mm (31.5"x16"), 684x300mm (27"x12"), 600x400mm (24"x16"), 500x300mm (20"x12"), 400x400mm (16"x16"), 400x300mm (16"x12"), 400x200mm (16"x8"), 300x300mm (12"x12"), 200x200mm (8"x8") or any hole patterns between 200x200mm (8"x8") and 860x480mm (34"x19"). Loading capacity up to 220lbs / 100kg. Package Contents: TV Wall Mount, Standard Mounting Hardware, User Manual. Compatibility Check: Please verify your TV weighs less than 220 lbs. Measure the horizontal and vertical spacing of the mounting holes on your TV — if the horizontal distance is within 31.5" and the vertical distance is within 16.5", this mount will fit. This universal mount fits the following VIZIO displays as well as many other brands (please check mounting hole patterns and weight): E600I-B3E601i-A3E601I-A3EE60-C3M601D-A3 M601d-A3RM602I-B3M60-C3P602ui-B3D65U-D2 E650i-A2E650i-B2E65-C3E65x-C2 M3D650SV M3D651SVM650VSEM651d-A2RM652i-B2M65-C1 P652ui-B2RS65-B2E700i-B3E701i-A3E701i-A3E E70-C3E70-C3M701d-A3RM702i-B3M70-C3 P702ui-B3M75-C1M801d-A3M801D-A3RM801I-A3 M80-C3
