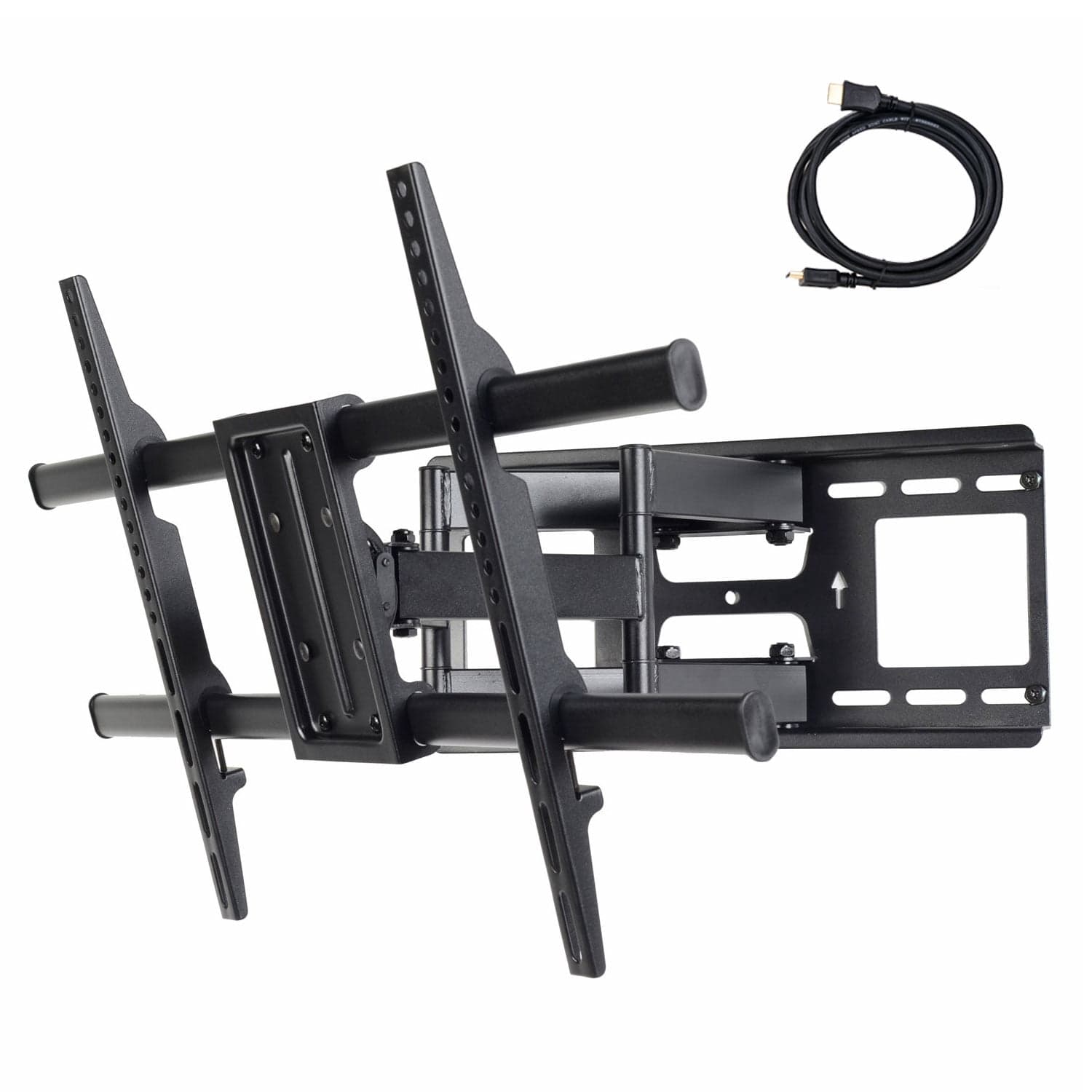

VideoSecu Full-Motion TV Wall Mount for VIZIO 40-70" LED/LCD/Plasma — Compatible with D40f-E1 D40n-E3 D43-E2 D43n-E1 D48f-E0 D50n-E1 D50u-D1 D55-E0 E55-E1 P55-E1 E60-E3 D65-E0 M65-D0 M65-E0 P65-E1 E70-E3 M70-E3 b09

Robust full-motion mount built from heavy-duty steel with a black powder-coated finish for long-lasting use. The articulating arm provides tilt, swivel and extension so you can achieve the ideal viewing angle, and integrated cable management keeps wires tidy. Safety screws on both arms hold the display securely in place while the nesting arm design lets the mount fold nearly flat to the wall to save space. Key features: - Construction: Premium heavy-duty steel with durable powder-coated black finish - Movement: Multi-directional adjustment — tilt 15 degrees forward or backward; swivel left and right (depends on TV size); extends up to 16 inch from the wall; folds parallel to the wall less than 3 inch - Leveling: Post-installation level adjustment (rotate 6 degrees for level adjustment) - Security: Safety screws on both arms to secure the display - Cable management: Integrated routing on the articulating arm - Space-saving: Nesting arm design allows the display to fold flat against the wall Specifications: - Fits most 39 - 70 inch LED LCD Plasma TV displays, some LED up to 80 inch (Please check mounting hole patterns and weight) - Loading capacity up to 125lbs/56.7kg - Fits mounting hole patterns 684x400/684x300/600x400/500x300/400x400/400x300/300x300/300x200/200x200/200x100mm or any hole patterns within 200-684mm wide and 100-400mm high - Also compatible with mounting hole patterns 684x400/600x400/400x400/400x300/300x300/200x200mm - Extension & depth: pulls out up to 16 inch from the wall or folds parallel to the wall less than 3 inch - Tilt: Adjustable 15 degrees forward or backward for optimal viewing - Level adjustment: Rotate 6 degrees for post-installation leveling - Swivel: Left and right swivel for comfortable viewing (depends on TV size) - Studs: Fits 16 inch apart wood studs - Wall plate dimension: 428x213mm (16.9"x8.4") Warning: This mount does not fit 65" or above TVs which were manufactured before 2013 Package contents: TV wall mount, HDMI cable, standard mounting hardware, user manual Please check whether the mount is suitable for your TV: Verify your TV weight is less than 125 lbs. On the back of your TV locate the mounting holes and measure the width and height; if the width is within 27" and the height is within 16" the mount will work perfectly. The width of your TV should be at least 37"; otherwise the mount may be too wide to hide behind your TV.
