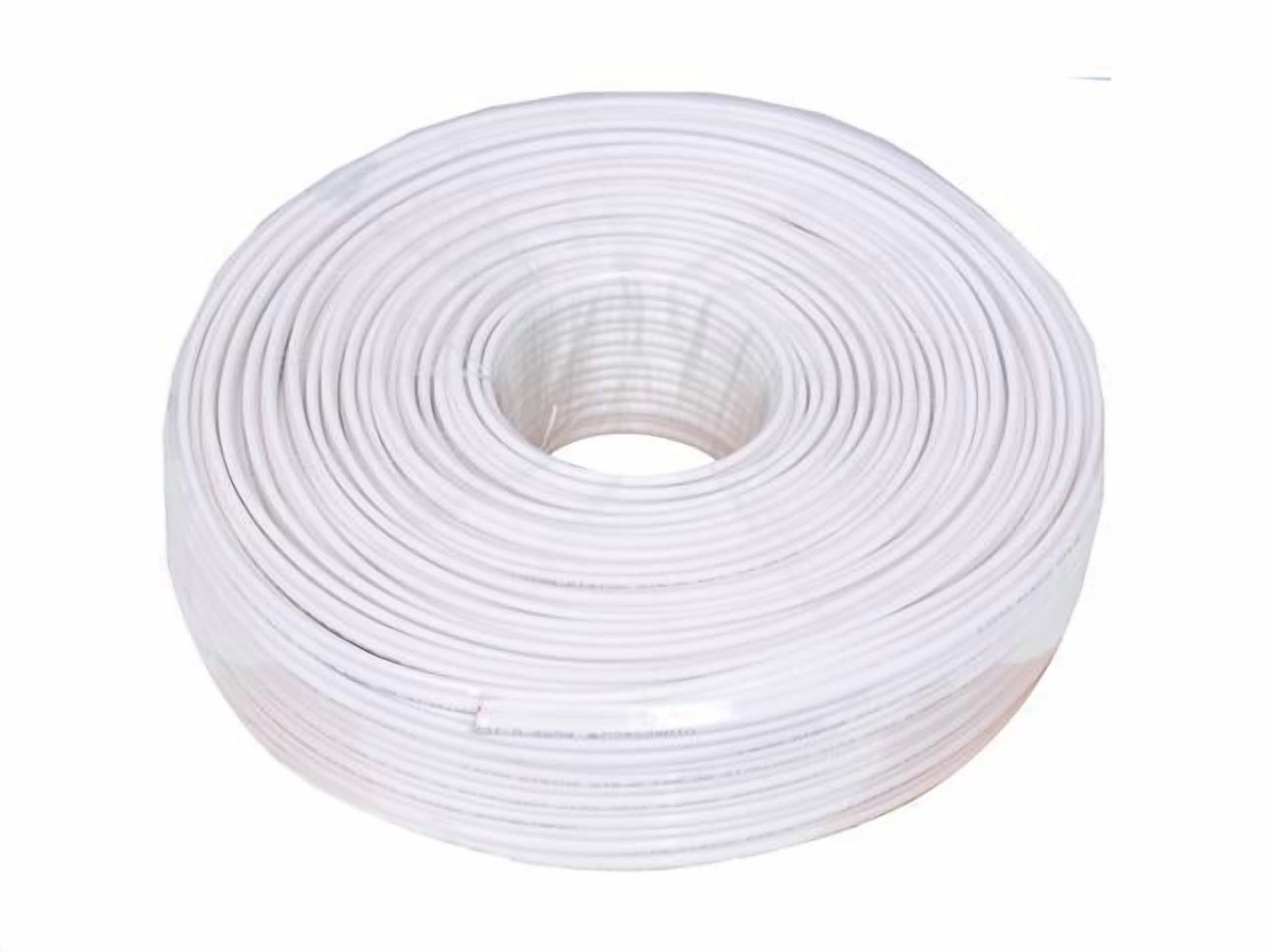

VideoSecu BYU 300ft Siamese RG59/18/2 CCTV Coax & Power Cable — 20AWG Solid Bare Copper Video, 2×18AWG Stranded Power, White PVC

Purpose-built for surveillance camera installs, this VideoSecu BYU siamese cable packs an RG59/U coaxial video run and a paired power pair into one white outer jacket. The video conductor uses a 20AWG solid bare copper center with 95% braid shielding for reliable signal transmission, while the power side consists of 2 x 18AWG (7 strand) copper conductors. Siamese construction includes a separation web so the video and power leads remain distinct yet housed together; the power and video conductors are each independently wrapped inside the single jacket. The cable accepts twist-on BNC connectors or any other standard RG59 coaxial connectors and is compatible with power pigtails for camera power hookups. Specifications: - Cable type: RG59/U coaxial plus one pair 18 AWG stranded power (Siamese configuration with separation web) - Video conductor: 20AWG solid bare copper center conductor, 95% braid shield - Power conductors: 2 x 18AWG (7 strand) copper - Length: 300 feet - Jacket: White PVC, power and video independently wrapped in a single jacket - Connector compatibility: Accepts twist-on BNC connectors or any other standard RG59 coaxial connectors and power pigtails Professional-grade siamese coaxial cable ideal for CCTV surveillance cameras and security system installations.
