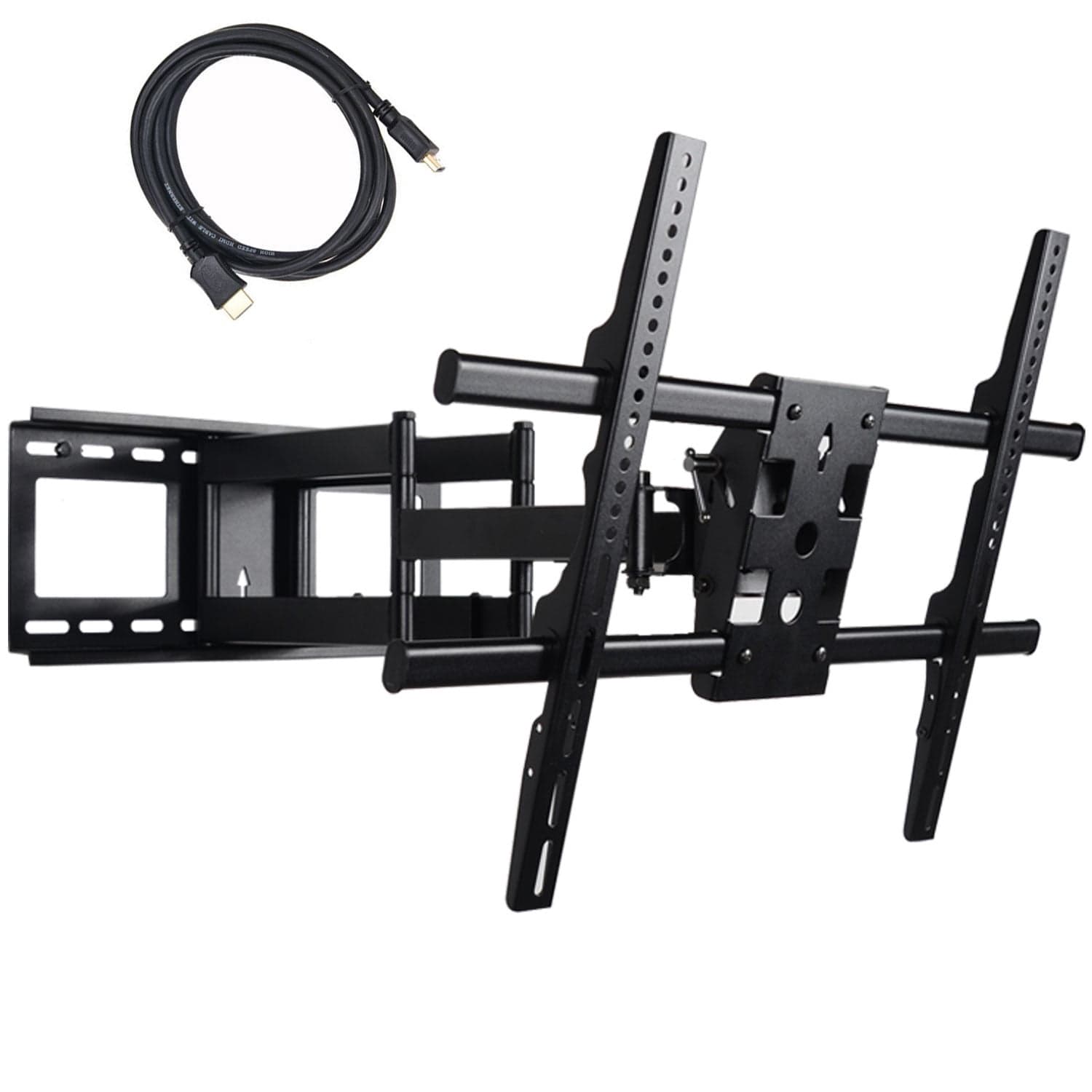

VideoSecu B06 Dual-Arm Full-Motion TV Wall Mount for 39"–70" (Some 80") LED/LCD/Plasma — VESA to 684x400mm, 165lbs/75kg

Overview: Heavy-duty VideoSecu articulating dual-arm mount engineered for most 39"–70" flat-panel LED, LCD and plasma TVs (some LED models up to 80"). Built from thick, high-grade steel with a black powder-coated finish, this full-motion mount provides flexible positioning and secure support. Compatibility & Load: Fits VESA mounting patterns 684x400 / 684x300 / 600x400 / 500x300 / 400x400 / 400x300 / 300x300 / 300x200 / 200x200 / 200x100 mm or any hole pattern within 200–684mm wide and 100–400mm high. Maximum loading capacity: up to 165lbs/75kg. Adjustment & Range of Motion: Tilt is adjustable 15 degrees forward or backward for optimal viewing. Small rotate (6 degrees) allows post-installation leveling. Swivel up to 160 degrees left and right (depends on TV size). The articulating arm extends out as far as 25 inch from the wall and nests back to under 4 inch for a low-profile fit. Installation Details: Wall plate dimension: 490x213mm (19"x8.4"). Designed to mount on 16 inch apart wood studs or on studs up to 17.8 inch apart. Lock-and-release arm mechanism secures the display in place and includes post-installation level adjustment for fine tuning. Security & Cable Management: The mount supports an optional locker to deter removal/theft (locker not included). Integrated rectangular cable-management covers along the articulating arm keep wires tidy and help prevent pinching. Nesting arm design allows the display to fold parallel to the wall to save space. Package Contents: TV wall mount, 10ft HDMI cable, standard mounting hardware, user manual. Compatibility Check (please read before purchase): Verify your TV weighs less than 165 lbs. On the back of your TV measure the mounting hole pattern: if the hole pattern width is within 27" and height is within 16", this mount will work perfectly. The TV’s overall width should be at least 32"; if it is smaller the mount may extend beyond the TV and not be fully concealed. Features Summary: Premium heavy-duty steel construction with powder-coated black finish; multi-directional tilt, swivel, rotate and extend adjustments; lock-and-release arms for added security; post-installation leveling; integrated cable management; folds flat to conserve space.
