Eugene Color Restored Automotive VFD, Other, Size 0

Eugene Color Restored Automotive variable frequency drives are listed in color Other and size 0. These drives regulate motor speed for CNC equipment, pumps, compressors, extruders, winders, mixers, elevators and other machinery. They support 816-segment speed programming and 4-segment acceleration/deceleration switching.

Each has an ABS flame-retardant housing with a non-corrosive coating, a capacitor rated to 105°C rather than the 80°C rating cited for ordinary units, fan cooling, a built-in heatsink, an independent air duct and a removable panel that can connect to an appropriate interface for remote control. Protections include overload, fuse, overvoltage and undervoltage protection.

Models include a 2.2 kW drive with 110 input and 0-110 output; a 3 kW drive with 220V input and 0-220 output, 0-14A input and output current, and 4 horsepower; a 4 kW drive with 220 input and 0-220 output, 0-17A input and output current, and 5.5 horsepower; and a 7.5 kW drive with 220 input and 0-220 output, 0-33A input and output current, and 10 horsepower.

The 2.2 kW drive has 0-17.5A input and output current and 3 horsepower. All models accept 1 or 3 phase input and provide 3 phase output, with 50/60 Hz input and 0-1000 Hz output frequency. Operating conditions are listed as 23~104/-5 ~ 40 temperature, 0-90% relative humidity without dew and vibration below 0.5 G.

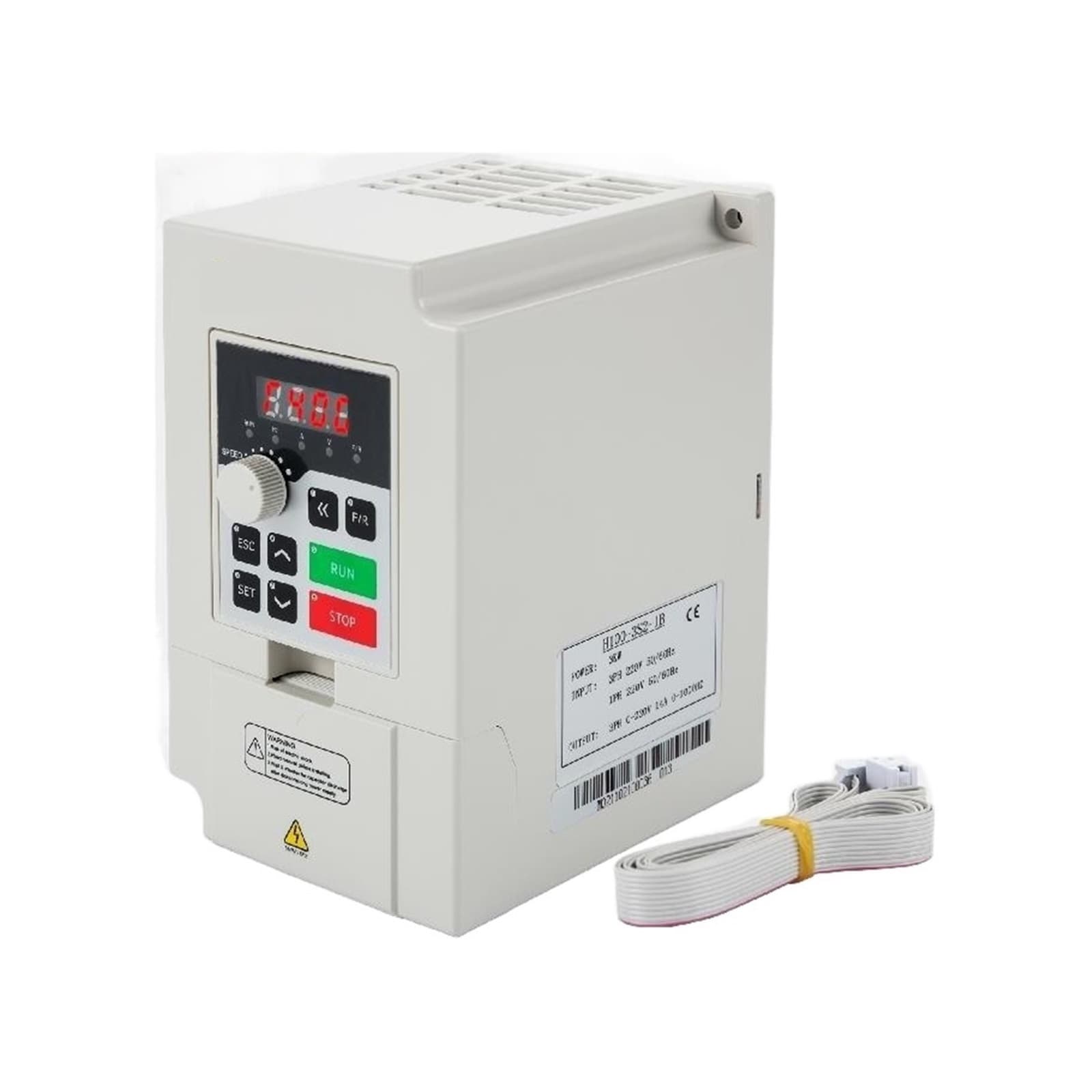

The 3 kW model weighs 2.43 lbs / 1.1 kg and measures 5.9 x 3.54 x 4.6 in / 150 x 90 x 118 mm. The 4 kW and 7.5 kW models each weigh 5.73 lbs / 2.6 kg and measure 8.7 x 4.6 x 5.8 in / 220 x 118 x 148 mm. The listed 2.2 kW weight is 2.43 lbs / 1.1 kg, and its dimensions begin 5.9 x 3.54 x 4.6 in / 150 x 90 x. Each listed package contains 1 drive inverter, 1 English manual and 1 extension wire.
