CWR Electronics 53475 Multicolor Sonar sku-34565605

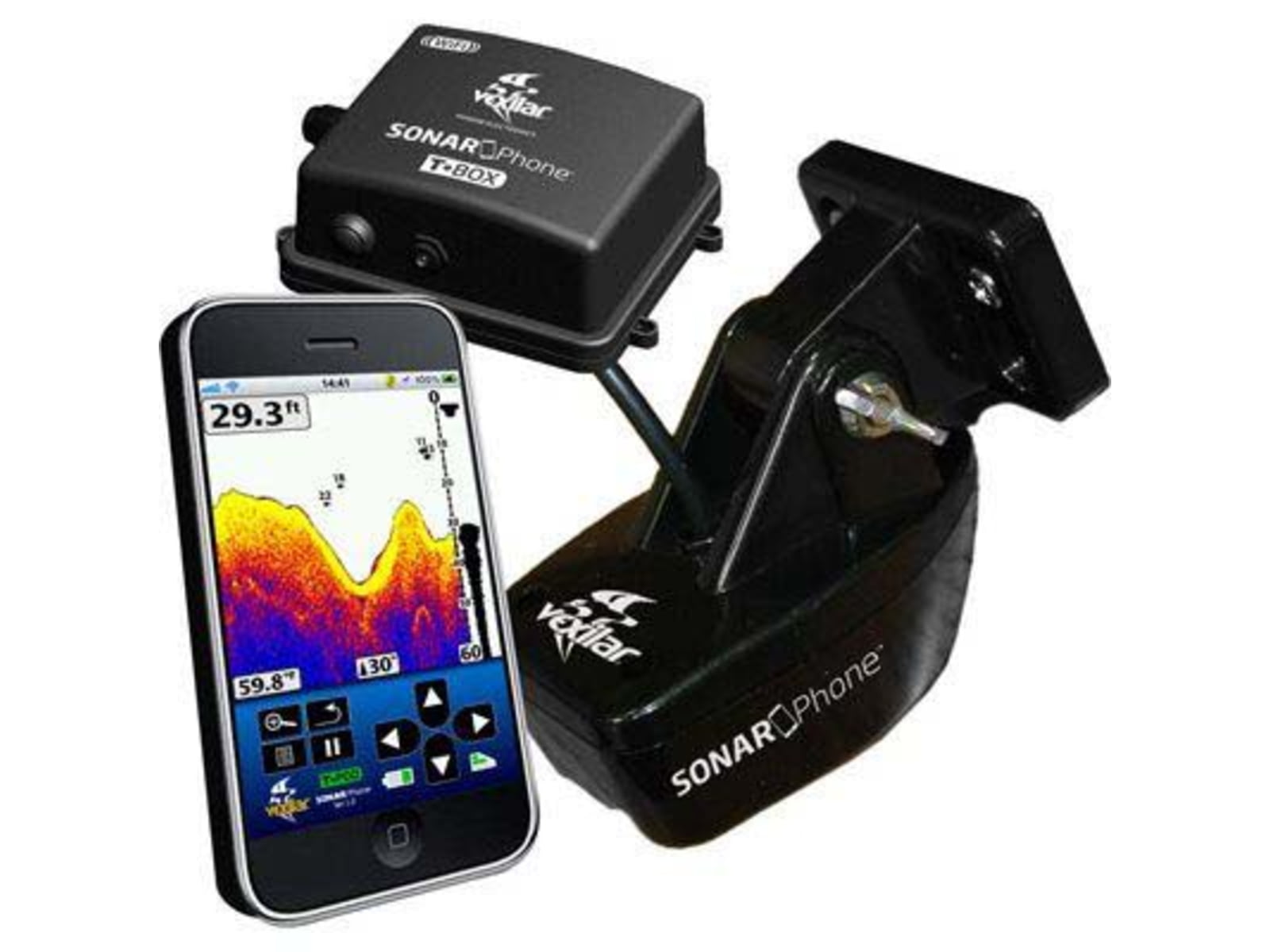

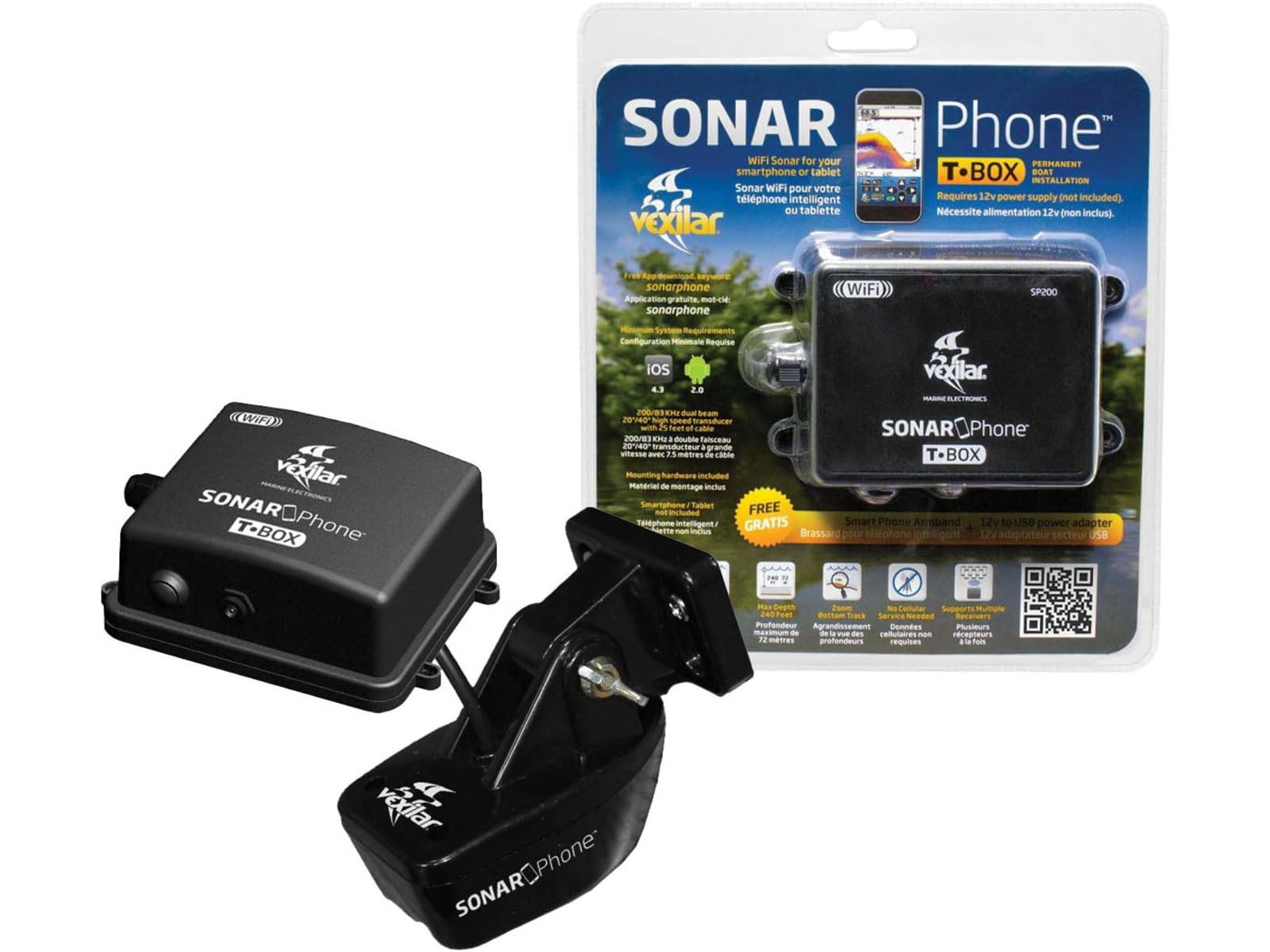

CWR Electronics model 53475 is a Multicolor, Unisex Vexilar SP200 SonarPhone T-Box permanent-installation fishfinder in Fishing & Boating Clearance. SKU sku-34565605; UPC 052762130112; listed size 240'. It installs on boats with access to a 12 volt power supply, which is not included.

The T-Box creates a Wi-Fi hotspot to send sonar data to phones or tablets without cellular coverage and can share its signal with multiple users. The free app is available through the App Store and Google Play for iOS 4.3 and Android 2.0. The system uses a 200/83KHz dual-beam transducer with 20° or 40° cone angles. Maximum depth is 240' (73M); minimum depth is 2' (0.6M).

Its transom-mount skimmer transducer includes a temperature sensor and can also be installed inside a fiberglass hull, where temperature sensing is unavailable. Features include automatic ranging, water temperature and depth readings, fish icons, zoom, bottom tracking, noise rejection, surface clarity, a battery indicator and audible fish, shallow-water and low-battery alarms.

It uses 12V DC power, operates from -20 to 80°C and has a wireless range of 100 yards (90M). A 12V car-plug/USB adapter, transducer and 1-year warranty are included. Box dimensions are 5"H x 9"W x 11"L; weight is 1.95 lbs. California warning: this product can expose you to chemicals known to cause cancer, birth defects or other reproductive harm. See P65Warnings.ca.gov.

A brochure is available as a PDF.
