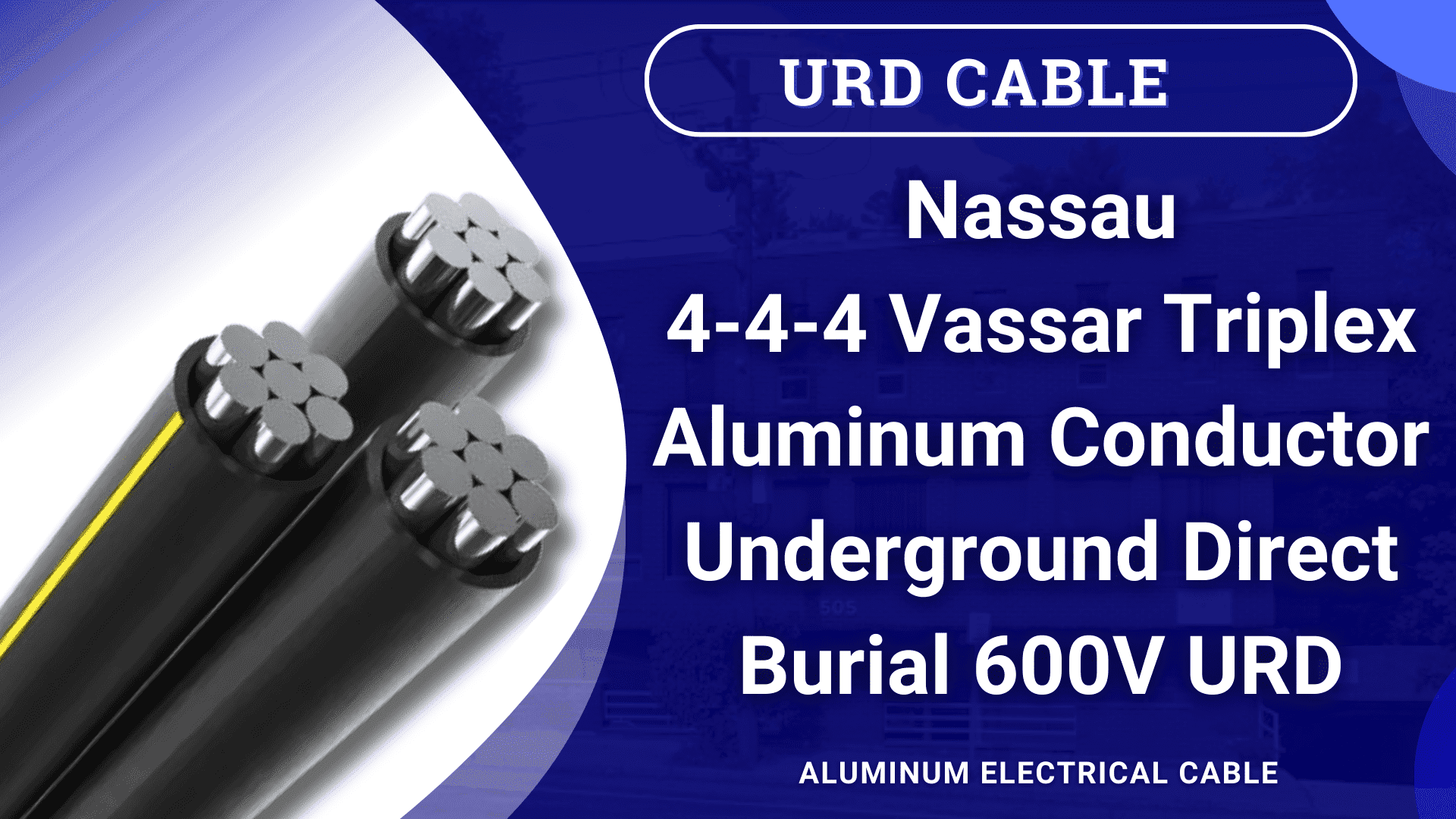

Vassar 175' 4-4-4 Triplex Aluminum URD Cable 600V — Direct Burial

Vassar 175' 4-4-4 Triplex Aluminum URD cable rated 600V for underground residential distribution and direct burial applications. Constructed with 4 AWG conductors and a 4 AWG neutral, this triplex assembly uses stranded aluminum conductors for flexibility and durability. Specifications: - Size AWG: 4 - No. of Strands: 7 - Neutral Conductor Size AWG : 4 - Stranding: 7 - Insulation Thickness (inches) : 0.060 - Insulation Thickness (mils): 60 - Single Phase Conductor Inches: 0.345 - Outside Diameter (inches) : 0.750 - O.D. Inches: 0.754 - Weight (Lbs/1000ft) : 200 - Weight lbs./1000ft: 200 lbs Electrical ratings: - Ampacity : 120 Amps - Ampacity: Direct burial: 125 Amps - Ampacity: In duct: 90 Amps This cable combines the listed conductor sizes, insulation thickness, and dimensional data to meet common URD requirements. Ideal for outdoor underground runs where a 600V, 4-4-4 triplex aluminum solution is required.
