Valcom VC-V-9983-W In-Wall Audio Mixers sku-109904231

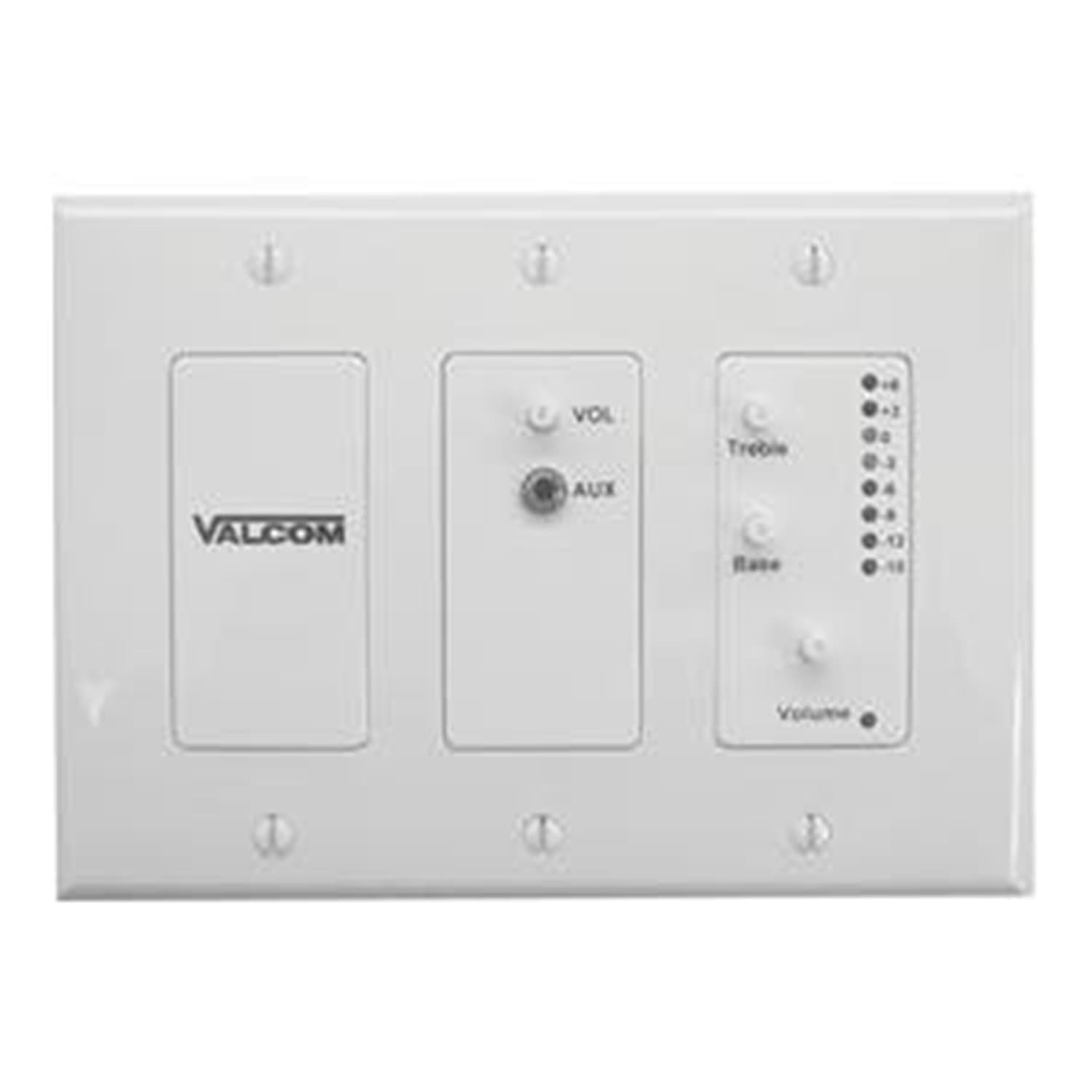

Valcom VC-V-9983-W is a Multicolor product listed under Audio Mixers, SKU sku-109904231, UPC 799111011974. This white, in-wall 2-channel mixer actively mixes 1 balanced microphone input and 2 auxiliary inputs. A building-page input can override the other sources by voice activation or switch. It mounts in a 4-gang deep electrical box and comes with a 4-gang white decorator-style faceplate.

Up to 3 VC-V-9984 remote modules connect to the main control module using two-pair structured cable; each adds 1 balanced microphone and 1 auxiliary input. A master volume control adjusts the final level, and an 8-segment LED meter shows signal levels.

The mixer has full-frequency output for speakers, modified output for horn loads and an optional switch-controlled compressor to even out loud and quiet inputs. It operates on 24 Vdc and requires 1 Valcom power unit. Its styling is intended for offices, conference rooms and restaurants.
