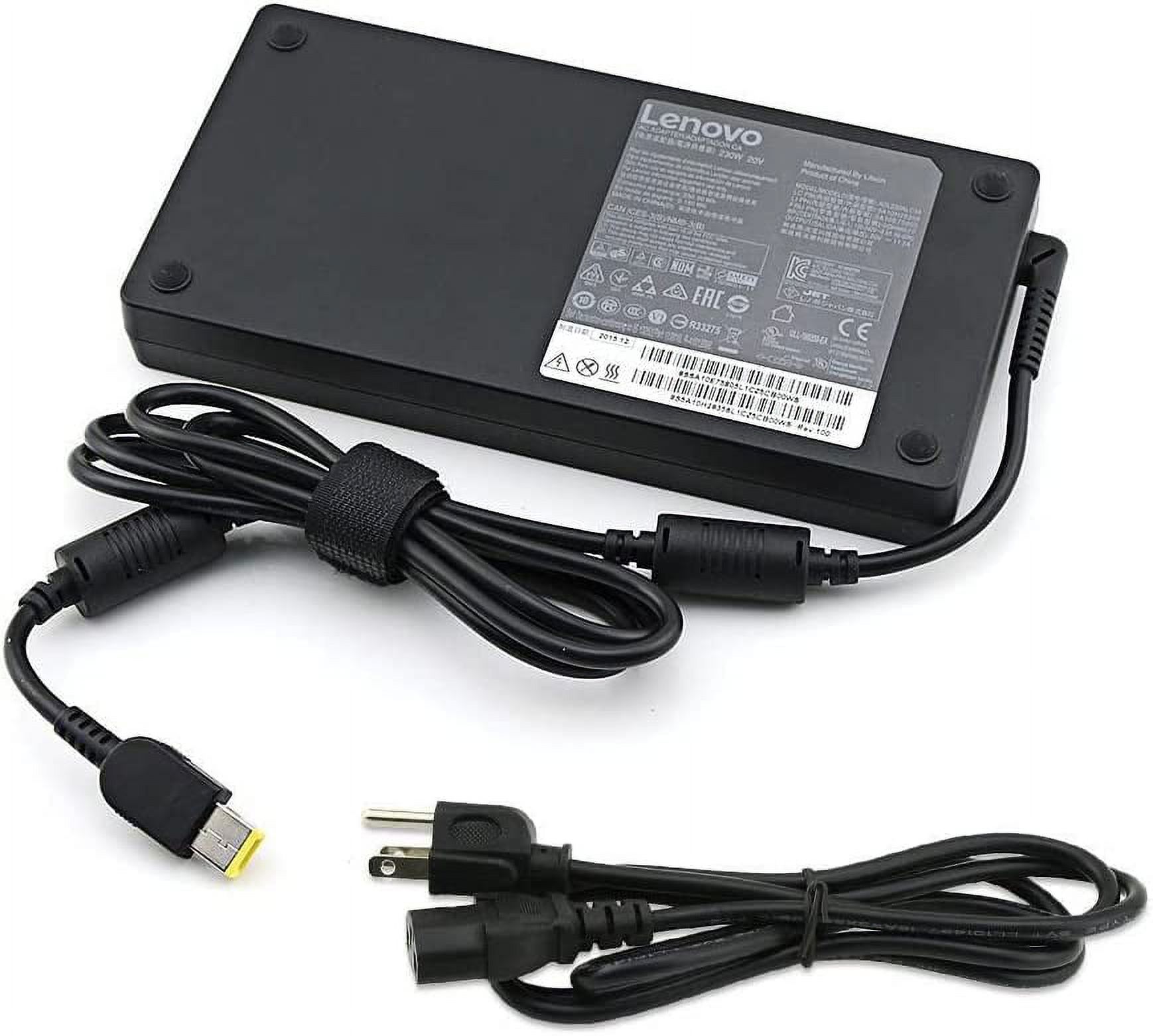

UpBright 20V AC/DC Adapter for Lenovo 40AN0230US ThinkPad Thunderbolt 3 Workstation USB Dock ADL230SCC3A — 20VDC 11.5A 230W (DC20V 1150mA 230.0W)

Overview: Replacement UpBright AC/DC power adapter compatible with Lenovo 40AN0230US (ThinkPad Thunderbolt 3 Workstation USB Dock) — model ADL230SCC3A. Built for reliable, long-term operation and engineered to meet the original equipment specifications. Rated outputs listed: 20VDC 11.5A 230W and DC20V 1150mA 230.0W. Electrical specifications: - AC input voltage: 100-240VAC (Global) - Input frequency: 47-63Hz - AC inrush current (max.): 20A/230V - Line regulation (full load): ±0.5% - Peak-to-peak ripple: <100MV - Setup rise / hold up time: 100ms, 50ms, 20ms - 240VAC input - Working temperature: 0-35℃-100% ,50℃-70% load Protection and performance features: - Overvoltage protection: 115%-135% rated output voltage - Overload protection: 115%-135% fold back current limiting with auto-recovery - Short circuit protection, over-temperature protection, and overvoltage protection included - Withstand voltage: I/P-O/P 3Kvac, 1 minute - Low interference and noise for stable operation - High efficiency and reliability using advanced technology Construction and safety materials: - PCB & cover manufactured from fireproofing materials - Temperature protection via NTC - Insulation paper used to isolate electrodes - Fire protection glue paper and silica gel applied for added safety Energy and efficiency note: - Power Exchange Savings more than 5658% (More power exchange savings means less power wasting and working more efficient with your computer). Compatibility and build: Solidly made, fully compatible replacement part engineered to match the original adapter’s electrical and safety specifications.
