Universal Car 8-Probe Visual Reversing Radar with Dual 170 degree Wide-Angle HD Cameras

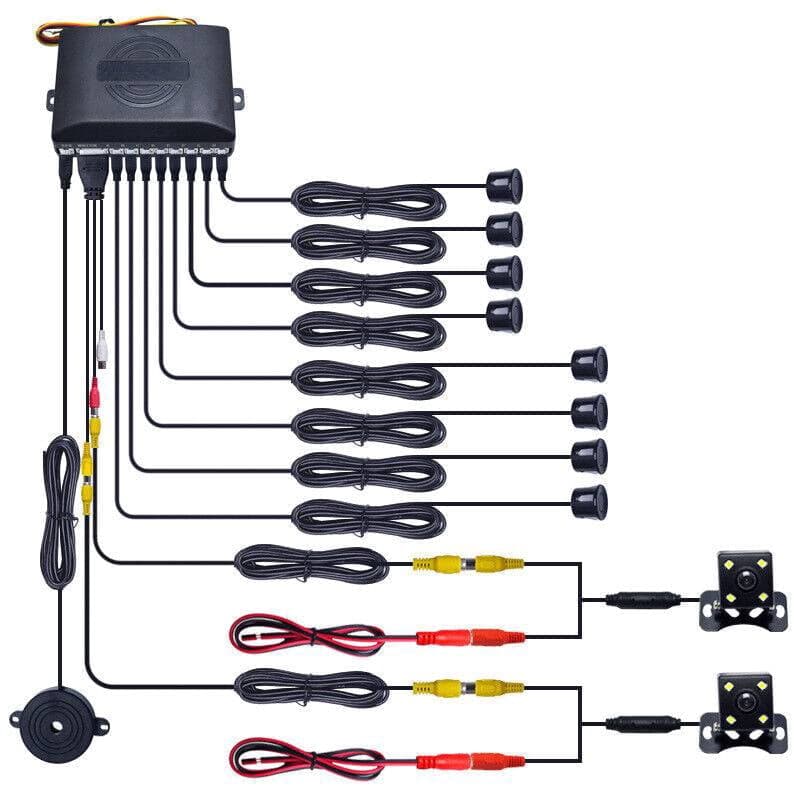

Overview: Complete universal reversing solution that combines an 8-probe visual parking radar and two 170 degree wide-angle high-definition cameras for front and rear coverage. The system shows real-time images on a monitor (monitor sold separately) while providing audible and visual proximity warnings. 1.8 Visual reversing radar — Key features: - Supports power-on self-test for all parking sensors - Displays the camera image on-screen together with measured distance to obstacles - Left/right directional guidance with distance alarm and buzzer - Rear detection distance: 0.4m-2.5m; Front detection distance: 0.3m-0.8m - Two-way camera video input and one-way composite video output Radar Specifications: - Rated voltage: DC12V - Working range: 10.5V-16V - Rated current: 40-800mA - Detection distance: 0.4m-2.5m (rear) / 0.3m-0.8m (front) - Ultrasonic frequency: 40KHz - Operating temperature: -40 ° C to + 80 ° C - Sensor color options: white, black, gold, silver, blue, green, orange, yellow, red, gray Radar Packing List: - 1X radar host box - 8X radar sensor (front: 4/rear: 4) - 1X Buzzer Speaker - 1X composite video cable - 1X1.5m RCA cable - 1X power cord - 1X hole saw (22mm diameter) High-Definition Camera — Specifications: - Image mode: Reverse image / mirror image - Night edition with 4 LED lights - Waterproof grade: IP68 - Image feature: CCD (Made in Japan) - Television system: NTSC - Effective pixel: NTSC: 728 * 582 - Field Angle of View: 170 ° - Horizontal resolution (TV cable): 480TV cable - Minimum illumination: 0.6Lux/F1.2 - Current consumption: up to 120mA - Power supply: DC12V - Operating temperature: -20 ° C to + 70 ° C, maximum Rh95% - Storage temperature: -40 ° C to + 80 ° C, maximum Rh95% Camera Packing List: - 2X170 degree wide-angle camera - 2X power cord - 2XRCA cable Attention: The 8-probe reversing radar requires two cameras (front and rear) and a display to show the visual feed. The monitor is optional and must be purchased separately.
