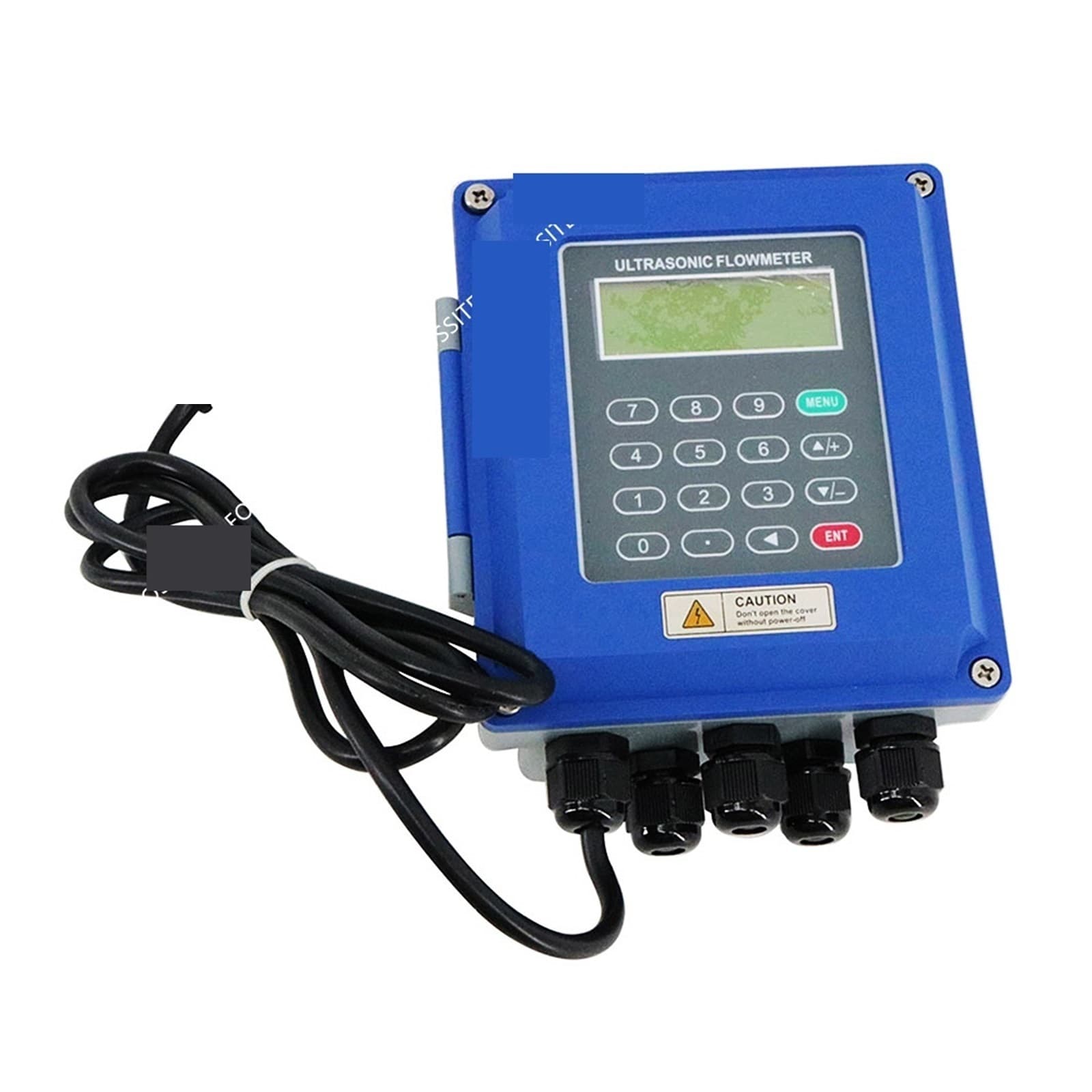

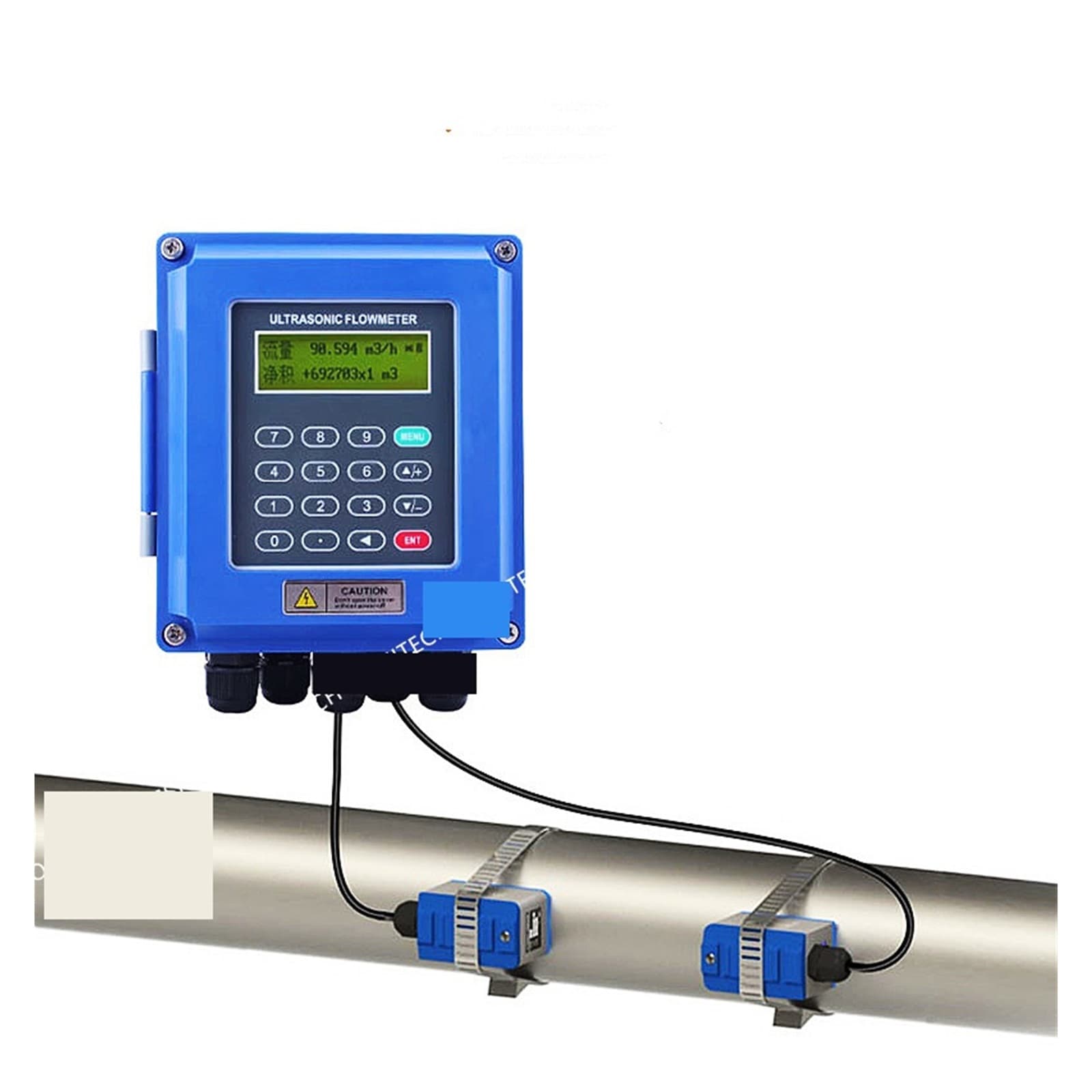

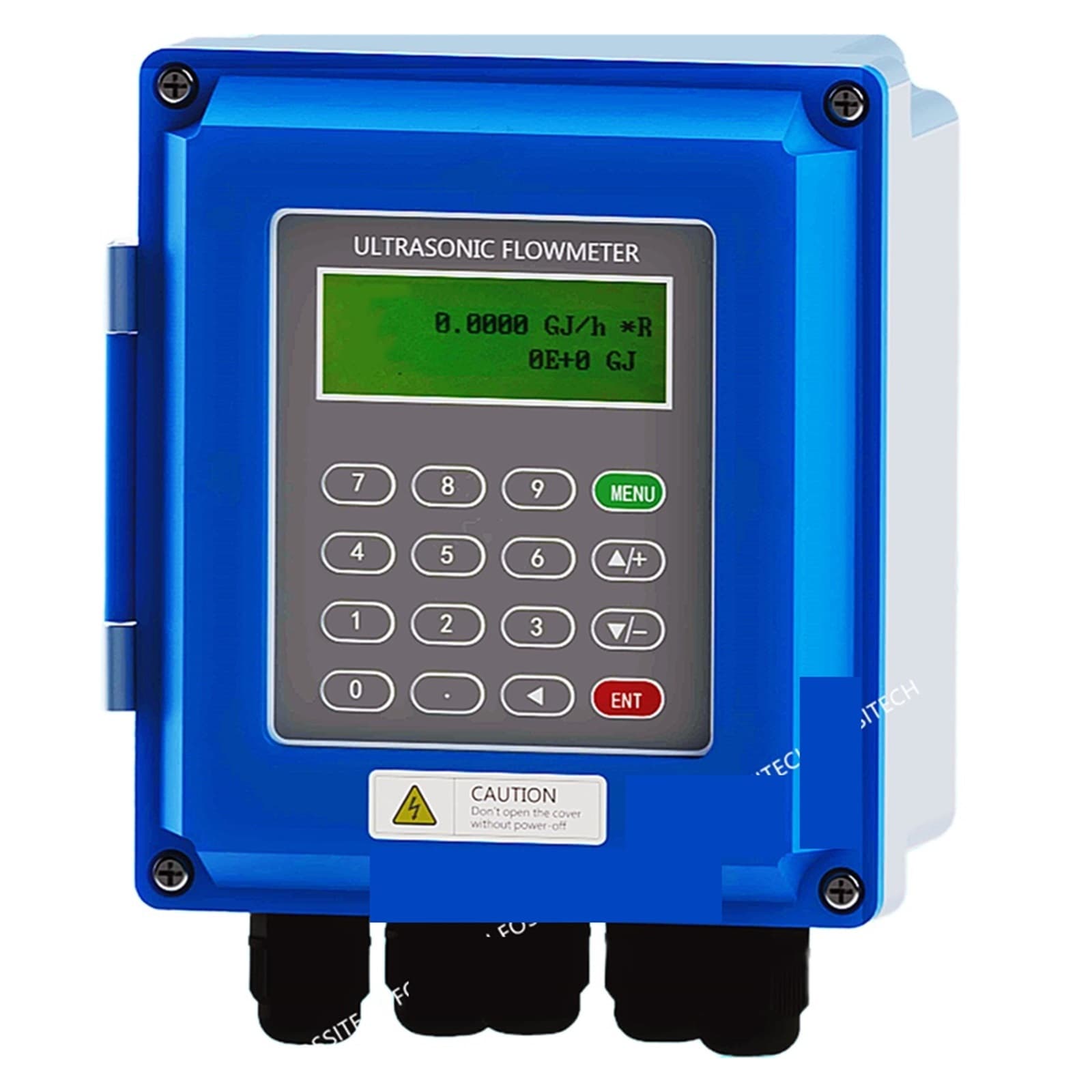

Ultrasonic Flow Meter Water, TUF-2000B TS-2 / TM-1 / TL-1-HT Sensor, Liquid Flow Meter Wall-Mounted

Ultrasonic Flow Meter Water TUF-2000B TS-2 / TM-1 / TL-1-HT Sensor Liquid Flow Meter Wall-Mounted Introduction: TUF-2000B Flowmeter can be virtually applied to a wide range of long-term online measurement. Convertor protection class IP67,transducer protection class IP98.A variety of liquid applications can be accommodated: ultra-pure liquids ,portable water,chemicals,raw sweage,reclaimed watere,cooling water,river water etc Parameters: Convertor Principle Transit-time ultrasonic flowmeter Accuracy ±1% Display 2x20 character LCD with backlight, Pipe diameter 15-6000mm Measuring Medium Type of liquid Single liquid can transmit sound wave; such as water (hot water ,chilled water, city water, sea water, waste water, etc); sewage with small particle con tent, oil(curde oil, lubricating oil, oil, fuel oil, etc); chemicals(alcohol, etc); plant effluent; beverage; Ultra-pure liquids, etc Temperature -30-160 Turbidity No more than 10000ppm and less bubble Flow rate 0-±7m/s Temperature Convertor; -20-60; Flow Transducer: -30-90/160(Optional) Humidity Convertor: 855RH; Flow Transducer: can measure under water, water depth2m Working Environment Temperature Convertor; -20-60; Flow Transducer: -30-90/160(Optional) Humidity Convertor: 855RH; Flow Transducer: can measure under water, water depth2m Power Supply DC8-36V or AC85-264V(Optional) Power Consumption 1.5W Dimension 132*150*85mm(convertor) fuel flow meter, flow meter, flow meter water, flow meter digital,water flow sensor,rv flow meter
