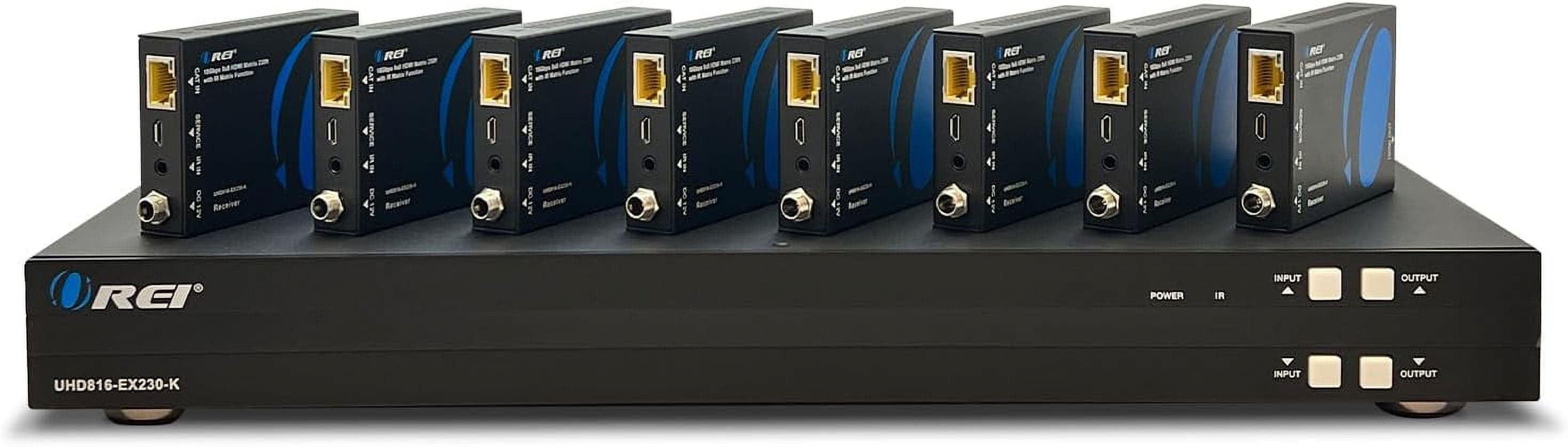

UHD816-EX230-K 8x8 HDMI Matrix Extender with IR over CAT5e/6/7 — 4K@60Hz (YUV 4:4:4), HDMI 2.0b, HDCP 2.2/1.x
4.4(5 ratings)High-performance 8x8 HDMI matrix extender (UHD816-EX230-K) designed to deliver multi-room 4K video distribution over structured cabling. The unit is HDMI 2.0b and HDCP 2.2/1.x compliant and provides up to 4K@60Hz (YUV 4:4:4) resolution on every HDMI and CAT port. Hardware and I/O: Eight HDMI inputs feed eight mirrored HDMI + CAT outputs, enabling simultaneous HDMI and CAT signal delivery. The HDMI ports support 18Gbps lossless compressed video bandwidth and full HDR support including HDR, HDR10, HDR10+, Dolby Vision, and HLG. Long-distance CAT extension: Each CAT output can extend a video link up to 230ft/70m using a single CAT6 cable (compatible with CAT5e/6/7). All CAT ports also provide 12V PoC for powering compatible receivers. Audio and control features: HDMI audio pass-through supports up to 7.1CH HD audio (LPCM, Dolby TrueHD, and DTS-HD Master Audio). The system includes advanced EDID management and CEC control to simplify source/display compatibility and behavior. A one-way IR matrix function is supported for remote control routing. Management options: Operate and configure the matrix from front panel buttons, the supplied IR remote, RS-232, over LAN, or via the Web GUI for flexible installation and control.
