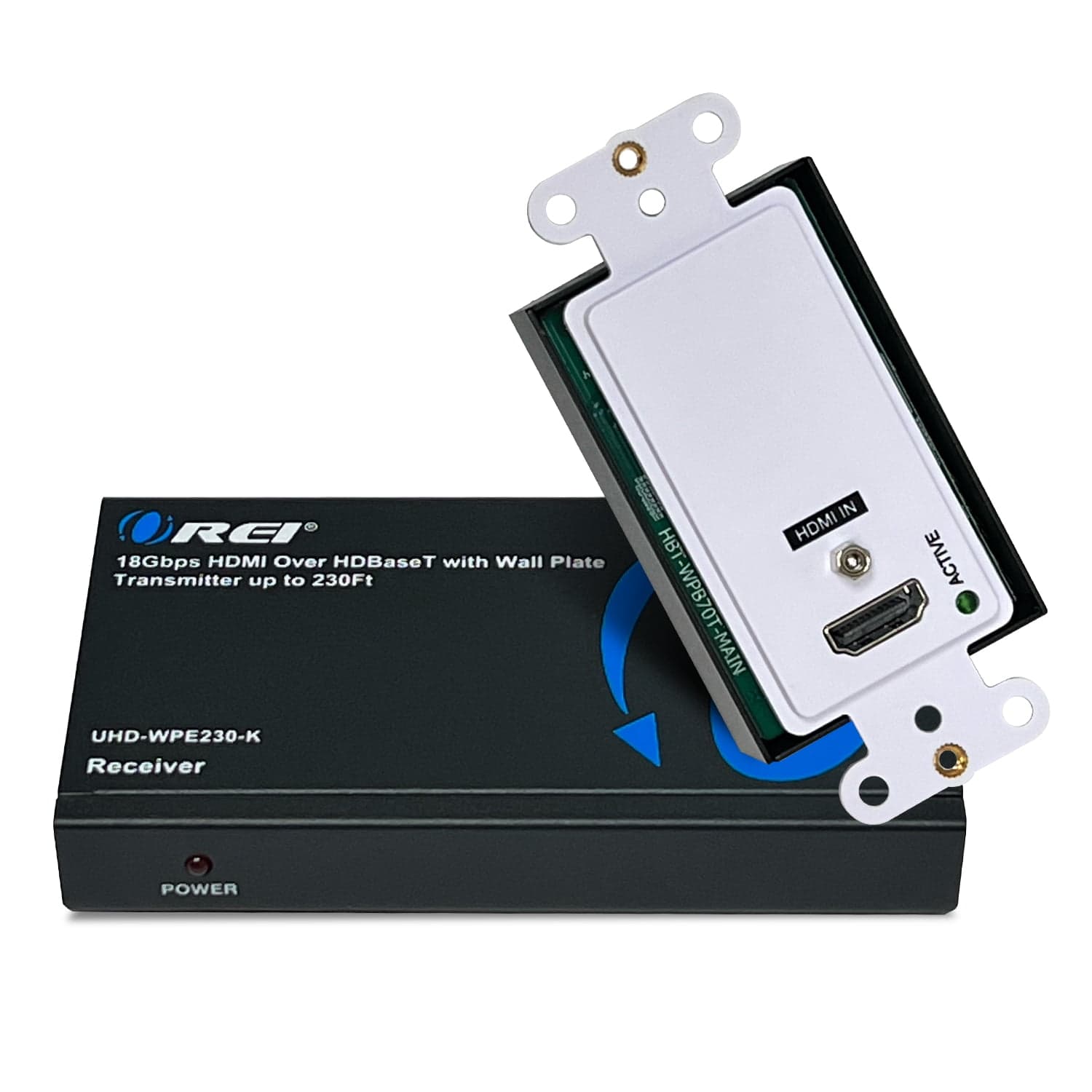

UHD-WPE230-K 4K@60Hz HDMI/USB-C HDBaseT Extender — Wall Plate Transmitter, Bidirectional IR & RS-232, CAT6/6a/7 up to 230ft

Compact HDBaseT extender kit (UHD-WPE230-K) that transmits HDMI 2.0b 18Gbps video with HDCP 2.2 support. Delivers high-resolution formats including 4K@60Hz(4:4:4), 4K@30Hz, 1080p@120Hz and 2K@60Hz while supporting up to 7.1 channels of high-definition audio. Uses a single CAT 6/6a/7 cable to carry signals up to 230ft/70m. The transmitter mounts in a 1 Gang US Decora Wall Plate and provides one HDMI input; USB-C source compatibility is indicated in the product title. Integrated two-way control passes both infrared and RS-232 alongside the video feed. POC (Power Over Cable) is supported so either TX or RX can be powered by a 24V1A power supply while the opposite unit requires no separate adapter; POC Power consumption is less than 10W. Transfer the Bidirectional Infrared control signal together with the HDMI signal. Transfer Bidirectional RS-232 control signal together with the HDMI signal.
