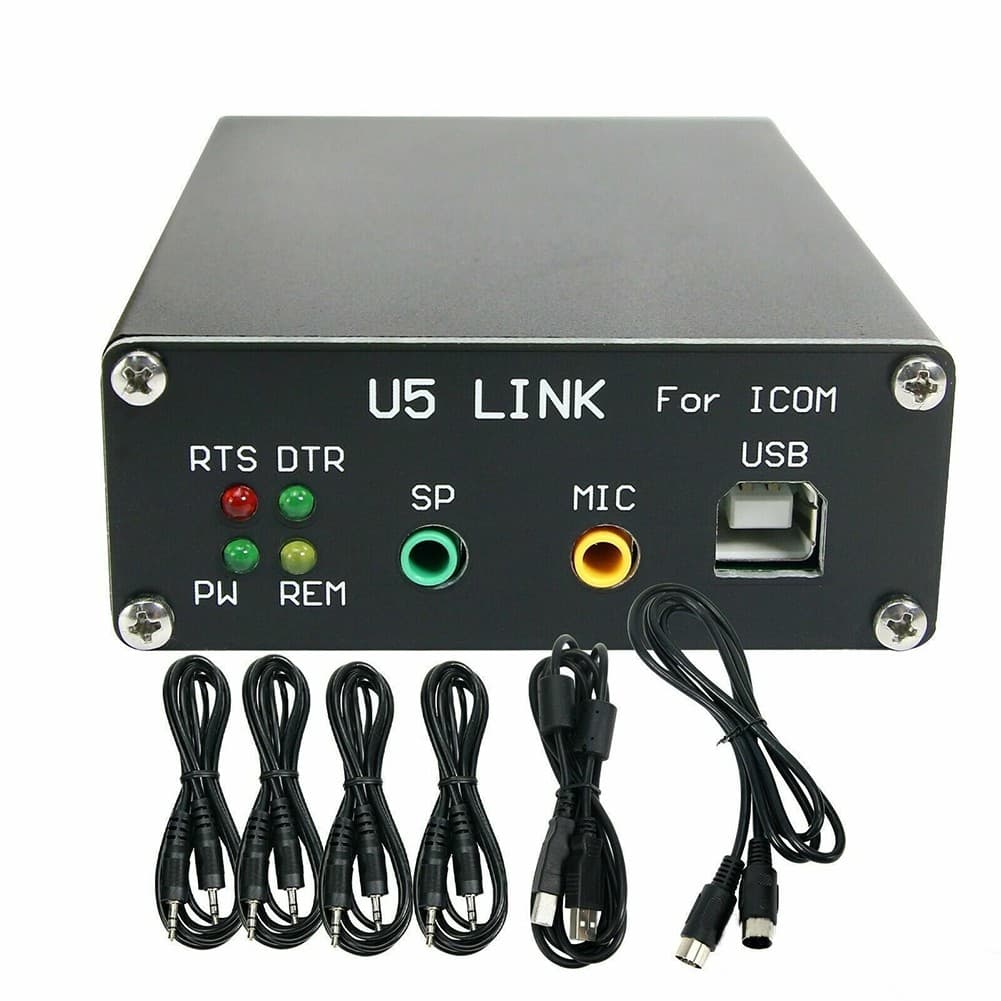

U5 Link for ICOM radio connector with power interface DIN8-DIN8 pc66

The latest version of the U5 ICOM radio connector housing is upgraded to black. Using imported advanced USB interface chip, plug and play. A cable is included in the package for easy use. It is a complete full model. The advanced design and compact size make it suitable for various application environments and compatible with multiple working modes.Supported software:Applicable to HRD/DM780/LOGG32/NIMM/WriteLog/ECHOLINK/EasyPal/SSTV/Cw_player/APRS/AGWTracker/MMTTY/EXTFSK/MMVARI/MIXW, etc.Specification:Performance introduction:- Imported high-end FT-232RL USB interface chip.- Imported 6N137 high-speed communication optocoupler, with speed up to 115200.- Contains data cable and connection cable (can be used for power supply).- Support radio remote control interface: full photoelectric isolation; CIV remote control supports 115200 stable high-speed communication.- Supported signals are complete: including TXD RXD RTS DTR CTS signals.- Provides an isolated power trigger interface, supporting PTT input and PTT output control.- Supports SQL control and CTS signal introduction.- for Customized high-quality sound changes.- Plug and play, no setup required, no external power supply required.- Standardized voice/data radio interface: ACC (DIN 8 specification).- Professional wave soldering processing, high technical level.- Improved ground wiring structure.Download USB driver:pan.baidu.com/s/1jGFt9PWPackage Included:- 1 x ICOM U5 link- 1 x USB cable with large magnetic ring- 2 x audio cables- 1 x CIV remote control cable (same as audio cable)- 1 x ICOM data cableDIN13-DIN8 data cable:- Suitable for ICOM IC-703, 706, 706MK2, 706MK2G, 718, 78, 7000, 7200, etc.DIN8-DIN8 data cable:- Suitable for ICOM IC-707, M710, 725, 725A, 726, 728, 729, 735, 736, 737, 738,746, 746PRO, 756, 756PRO, 756PRO2, 756PRO3, 761, 775, 781, 910, 7400, 7600, 7800, etc.Note:1. The real color of the item may be slightly different from the pictures shown on website caused by many factors such as brightness of your monitor and light brightness.2. Please allow slight manual measurement deviation for the data.
