Tyan Tempest CX S7126 S7126GM2NRE EATX Server Motherboard — LGA4189 | Intel C621A | DDR4 ECC RDIMM | DDR4-3200 | PCIe Gen4 | SATA & NVMe M.2 | 10GBase-T+

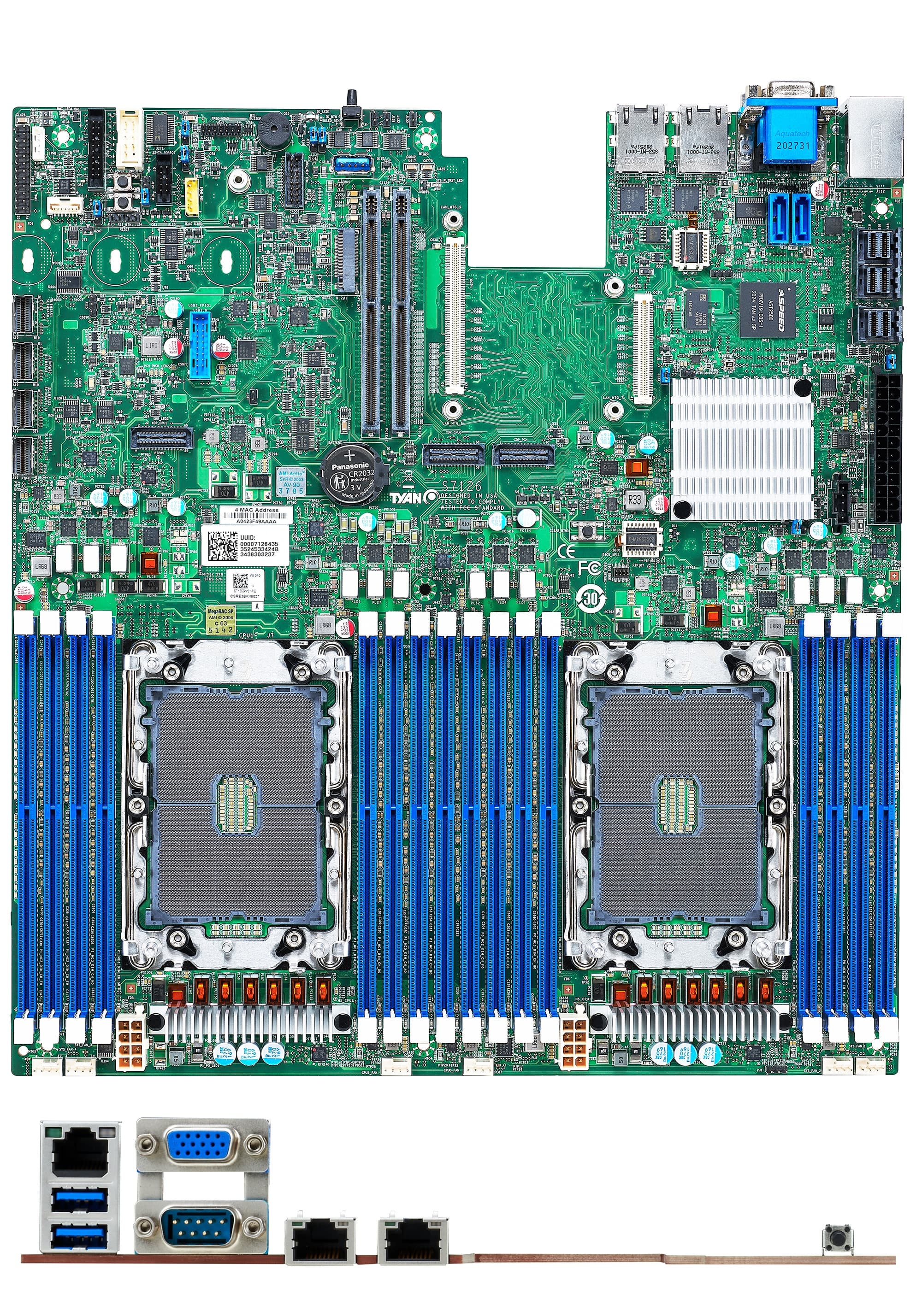

Full-height EATX FF server board (12" x 13.1") based on the Intel C621A chipset for LGA4189 processors. Designed for heavy-memory workloads, it offers 16 DIMM slots supporting DDR4 ECC RDIMM modules at DDR4-3200. Expansion and storage: 64 PCIe Gen.4 lanes are exposed via riser cards, including a PCIe x16 OCP v2.0 LAN mezzanine slot (Type 1). For NVMe storage and add-in cards it provides four PCIe x4 SlimSAS connectors and one M.2 slot compatible with NVMe 22110 / 2280 / 2242 modules. Networking and management: dual 1000Base-T LAN ports plus a dedicated 1000Base-T IPMI port are onboard for connectivity and remote management. System management is handled by an AST2500 BMC with IPMI 2.0 and Redfish support.You may also like Tyan Tempest HX S5642 S5642AGMNRE Motherboard (SSI CEB) - Intel C621A, LGA4189, DDR4 ECC RDIMM/LRDIMM 3200, 3x PCIe Gen4 x16 + 2x PCIe Gen4 x8.
