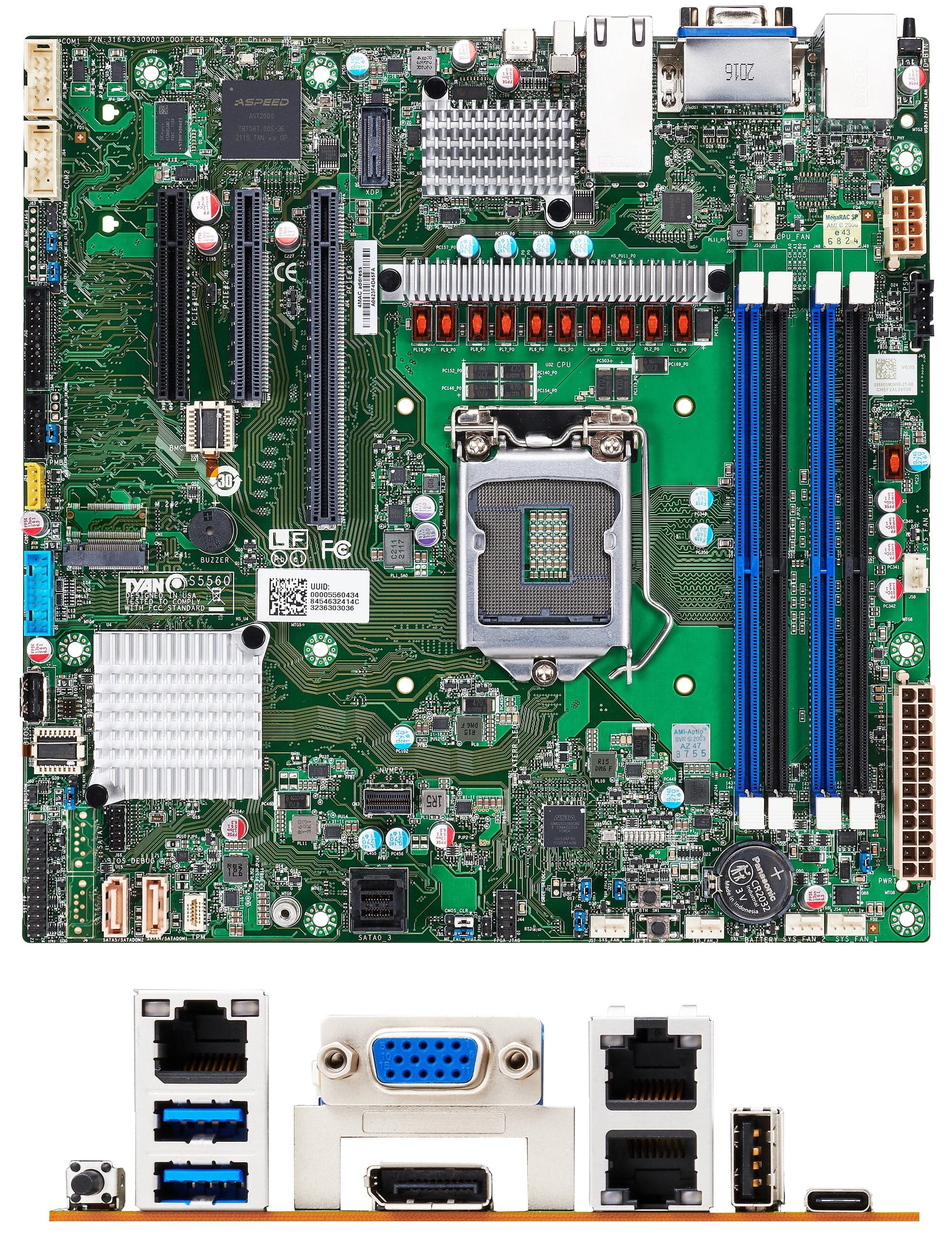

Tyan Tempest CX S5560 S5560GM2NRE-2T Micro-ATX Motherboard — Intel C252, LGA 1200, DDR4-3200 ECC UDIMM (128GB), 2x 10GBase-T

Compact 9.6" x 9.6" μATX server board built on the Intel C252 PCH with an LGA 1200 CPU socket. Memory support includes DDR4 3200 ECC UDIMM up to 128GB. Storage options: six SATA 6G ports and a single NVMe M.2 slot compatible with 22110 and 2280 modules. Networking and management: two 10GBase-T LAN ports plus one dedicated 1000Base-T IPMI port. Expansion is provided by two PCIe Gen.4 slots and one PCIe Gen.3 slot. Remote management is handled by an AST2600 BMC with Redfish support, and a VGA output is available for local display.
