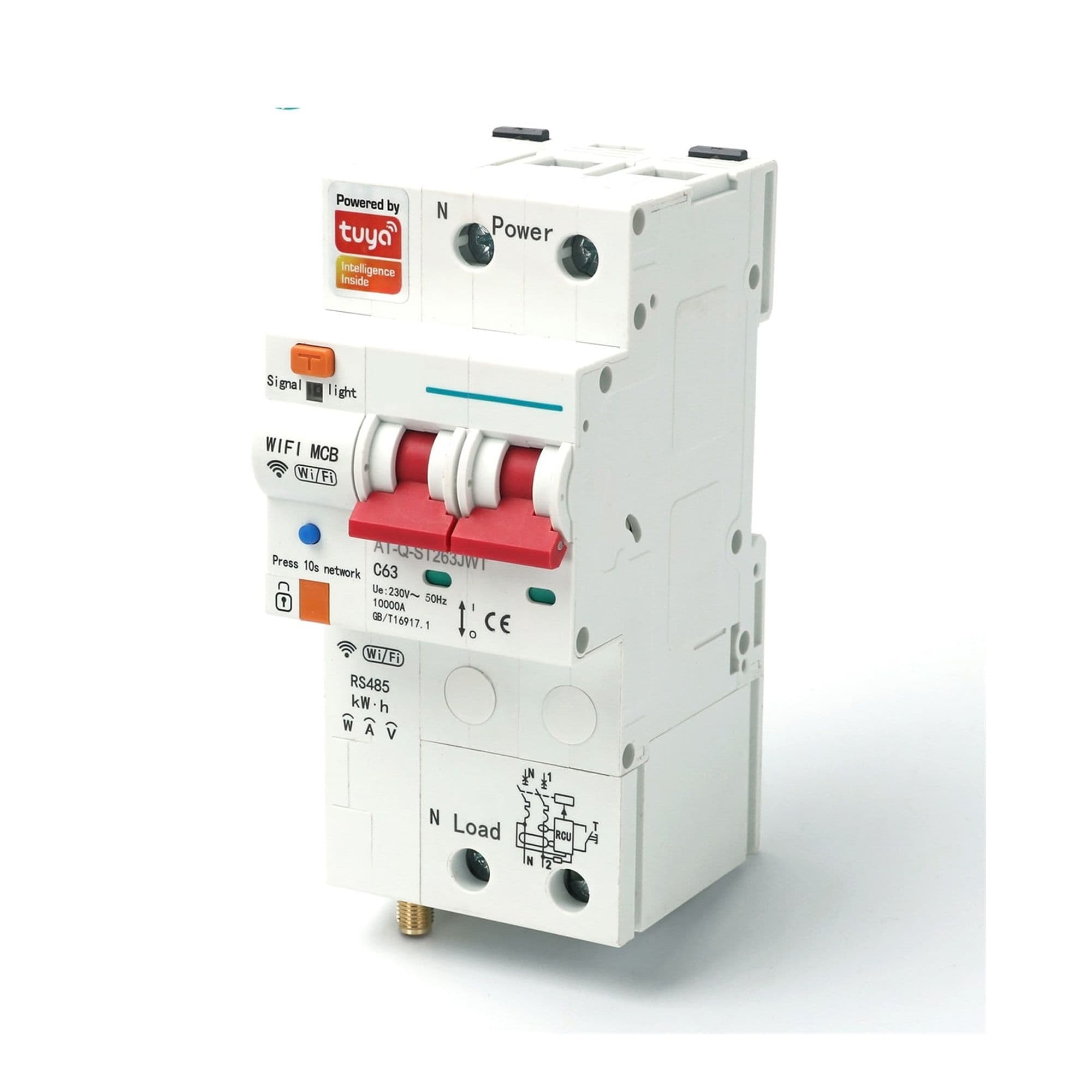

TUYA Smart Metering Circuit Breaker Switch Leakage Protection Power Energy Consumption KWh Meter Voltmeter Ammeter -------- ,Long Lasting

Features: 1. overload 2. short-circuit 3. isolating 4. voltmeter 5. ammeter 6. energy meter 7. leakage protection 8. Undervoltage 9. Prepaid recharge function Description: Preset power/current/voltage threshold values by app, Once the real-time power/current/voltage reaches the threshold values, The connected electrical appliances will be automatically turned off APP:TUYA Built-in -jamming chip to enhance the stable transmission and reception of signals, to prevent clutter interference. Guaranteed to increase the service life of equipment even under overpressure conditions EMC electromagnetic interference performance Experienced rapid transient burst immunity test, surge test, electrostatic discharge test, etc. : 2.4 Ghz Remote control : By smartphone application from anyway (the smartphone must connect to the internet in or 3g/4g) Function : switch on / switch off / timer schedual / smart scene Specifications: Rated frequency: 50/60Hz Number of poles: 2P/4P Rack rated current: 63A Rated current: 10A,16A,25A,32A,40A,63A,80A,100A Rated impulse withstand voltage: 6000V Implementation standards: GB10963.1, IEC60898-1, GB/T21706 Control mode: working mode, pairing mode Rated short-circuit breaking capacity: Icn=6kA Ics=6kA Operating temperature: -25 ° C ~ +65 ° C Mechanical life: in line with GB10963.110000 times Electrical life: in line with GB10963.1 6000 times Installation category: 1, ll Temperature rise test: 60k Salt spray test: in line with GB/T 2423.1724h Package Included: 1*Circuit Breaker Related Products:smart breaker,smart circuit breaker,wifi metering circuit breaker,energy monitor,power monitor,power consumption monitor,electric meter,smart meter
