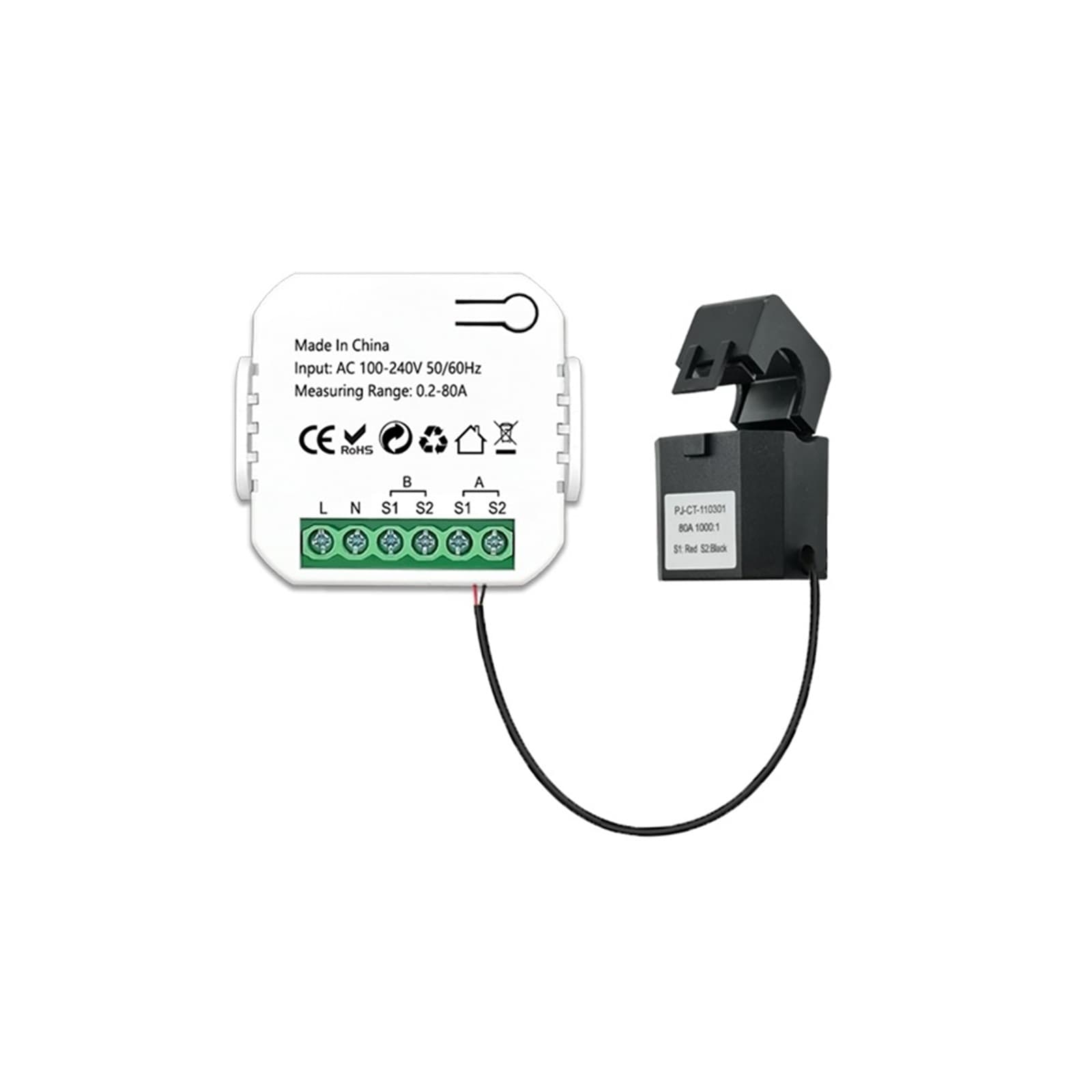

Tuya Smart 2 Way Energy Meter Bidirection 1/2 Channel With Clamp App Monitor Solar Produced And Consumed Power -------- ,Long Lasting

1 Channel and 2 Channel is Available 2 Channels For Reverse and Forward direction 1 Channle or 2 Channels are available to Choose And you can read from App for each Channel - Real-time total power of 2 channels of reverse and forward direction - Power for Channel A and B Separately(W) - Current(mA) - Voltage(V), - Power factor, and Frequency(Hz) Electricity Statistic for each channel in Forward and Reverse direction. Hourly Elec. (KWh) Daily Elec. (KWh), Monthly Elec. (KWh) -Yearly Elec. (KWh) Technical data: Rated Voltage:100-240V AC 50/60Hz Measurable Current Range: 0.2A-80A Frequency: 2.4GHZ (Not Support 5Ghz) Ambient Temperature Range:-10°C ~ 55°C App can display Channel A and B Real-time power, current, voltage, power factor and frequency for Forward and Reverse direction clrealy The meter allows to do calibration Allow to Do Calibration The device is able to do calibration by adjusting the percentage Electricity Statistic Channel A , B Separately and Total daily monthly, yearly Reverse and Forward Direction Automation , It allows to make a Scene for this device working with other tuya devices Set Automation for the Measured Device , For example, If Power or Current Is over the Value, then other tuya device starts to work . Wiring Diagram 1. To measure the power 'from Grid' and 'To Grid' Please note to make sure the circuit mesaured is in the same phase as the circuit power to the module. 2. Measure the power consumption. Please note to make sure the circuit mesaured is in the same phase as the circuit power to the module. Non-connect to Be Safe, Easy and Safe to Install No need to change the wires, Just put the wire into the clamp, then it can measure, very easy. Small Size Module , Easy to Install We guarantee good quality, every product will be tested before delivery. Not before Order Related Products:smart breaker,smart circuit breaker,wifi metering circuit breaker,energy monitor,power monitor,power consumption monitor,electric meter,smart meter
