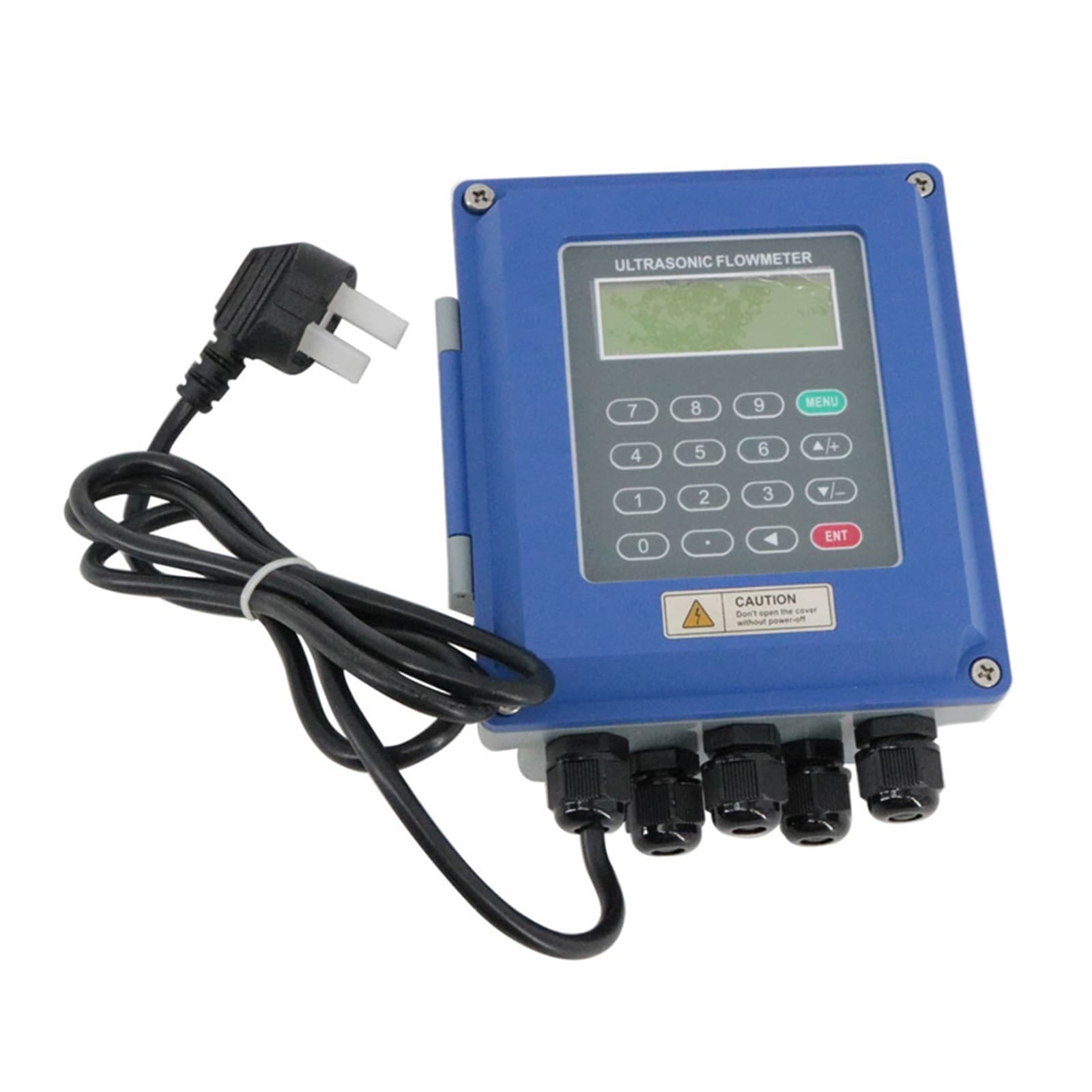

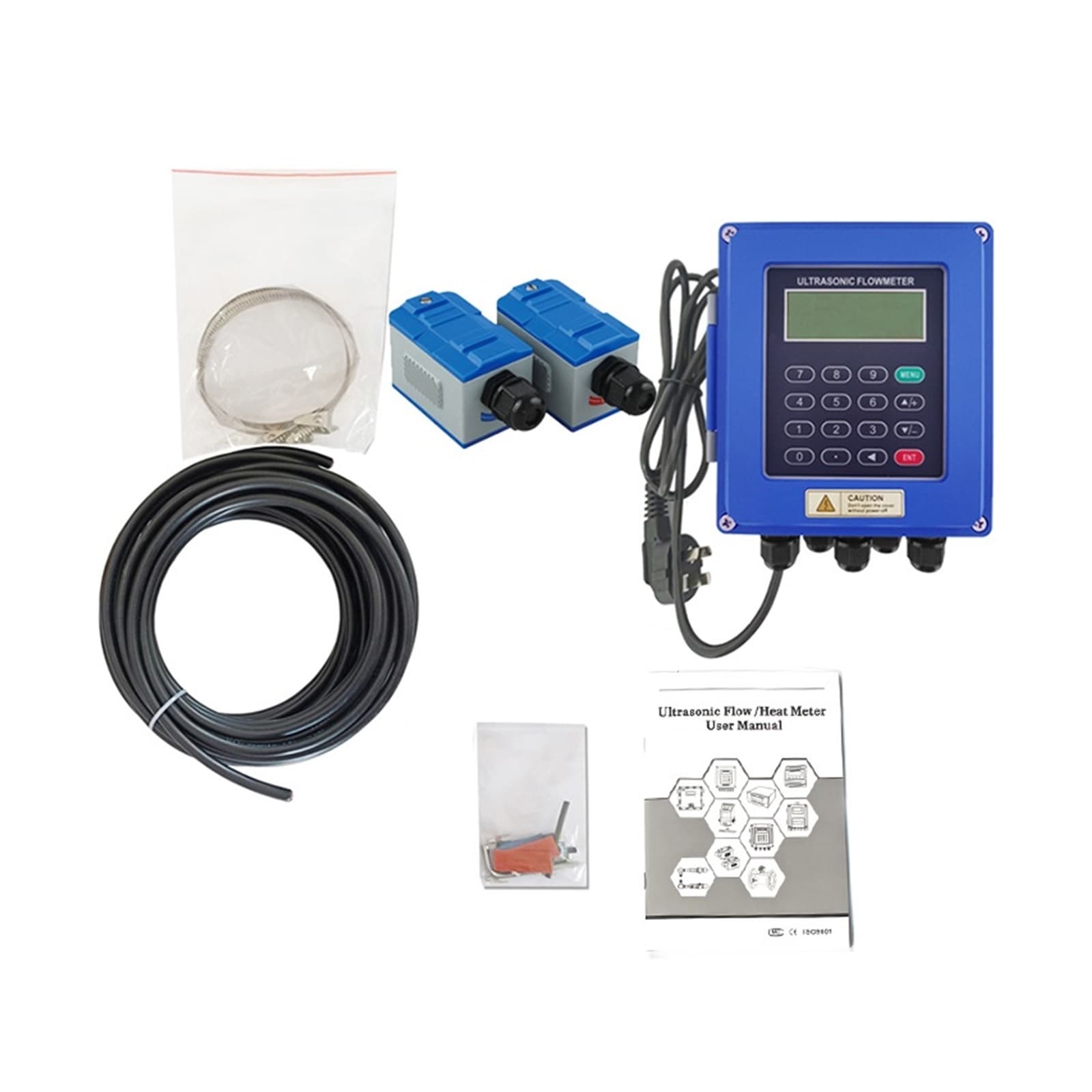

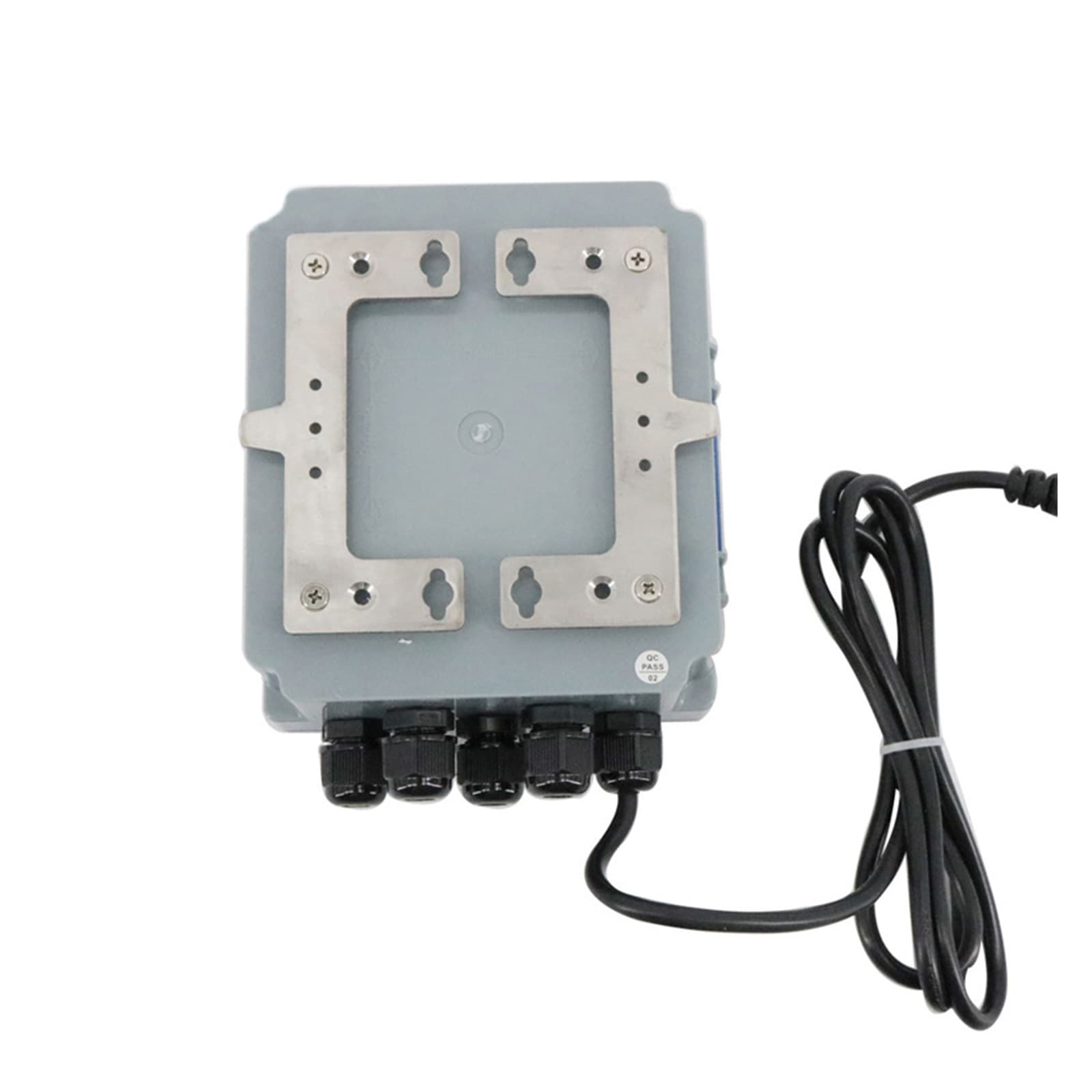

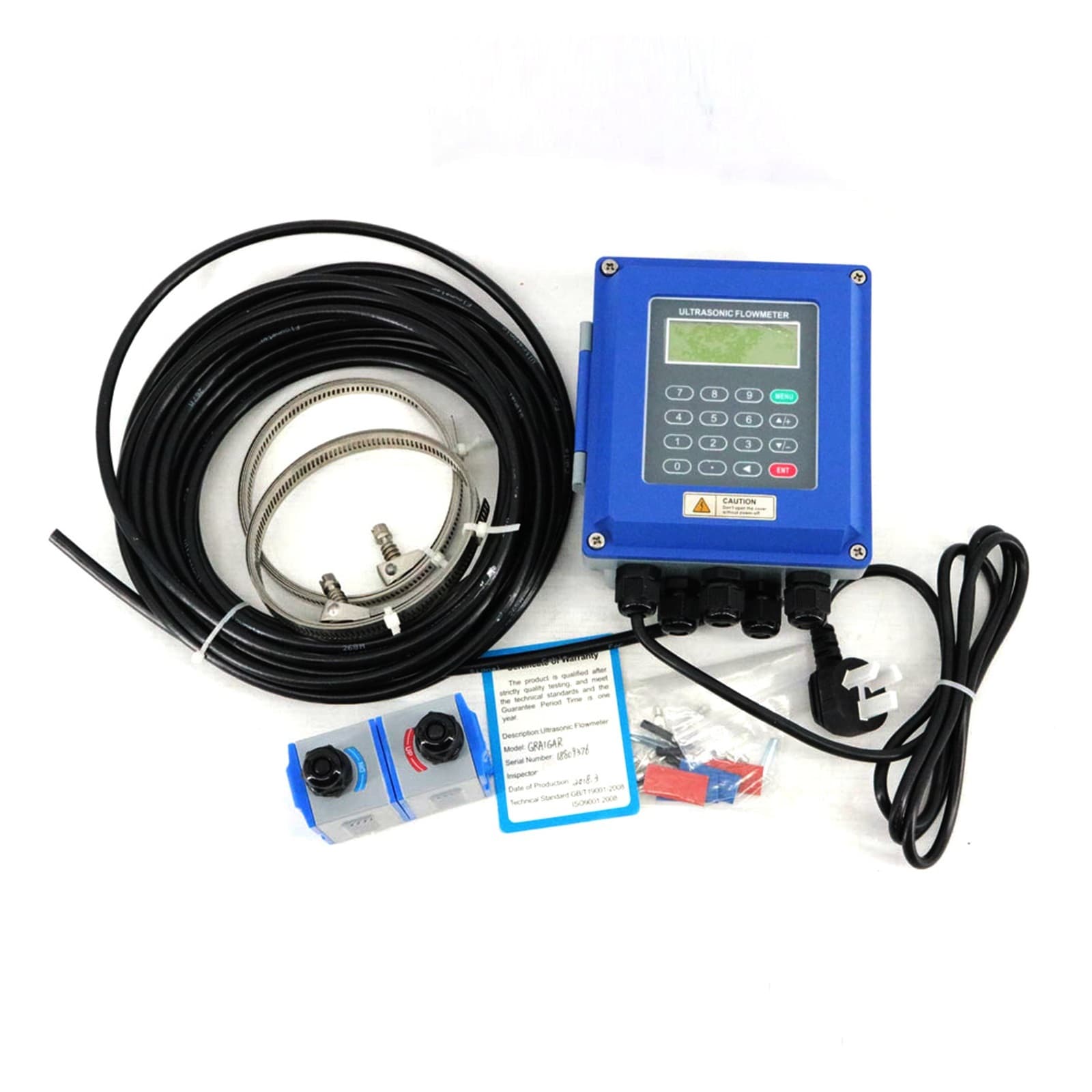

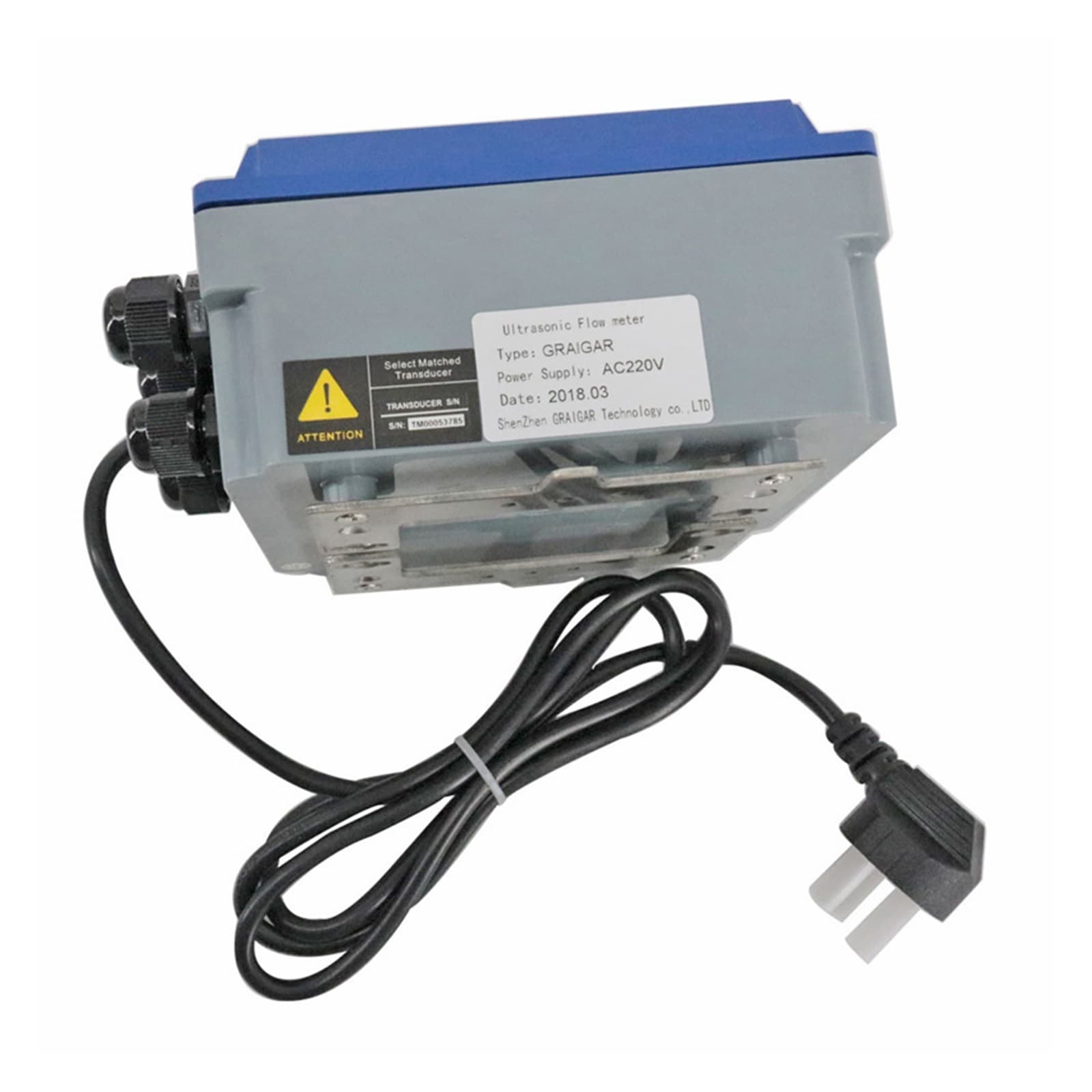

TUF-2000B-TM-1 Transducer, DN50mm-DN700mm Ultrasonic Liquid Flowmeter, Wall Mounted Type Water Flow Meter

TUF-2000B-TM-1 Transducer DN50mm-DN700mm Ultrasonic Liquid Flowmeter Wall Mounted Type Water Flow Meter Introduction: TUF-2000B Flowmeter can be virtually applied to a wide range of long-term online measurement. Convertor protection class IP67,transducer protection class IP98.A variety of liquid applications can be accommodated: ultra-pure liquids ,portable water,chemicals,raw sweage,reclaimed watere,cooling water,river water etc Parameter: Items Performance &Parameter Convertor Principle Transittime ultrasonic flowmeter Accuracy 1 Display 2x20 character LCD with backlight Signal output 1way 4-20mA output, electric resistance 0-1K, accuracy0.1% 1 way OCT pulse output(Pulse width-1000ms, default is 200ms)) 1 way Relay output Straight pipe Transducer installation should be satisfied: upstream10D, downstream5D, 30D from the pump. Measuring Medium Type of liquid Single liquid can transmit sound wave; such as water (hot water ,chilled water, city water, sea water, waste water, etc); sewage with small particle con tent, oil(curde oil, lubricating oil, oil, fuel oil, etc); chemicals(alcohol, etc); plant effluent; beverage; Ultra-pure liquids, etc Temperature -30-90 Turbidity No more than 10000ppm and less bubble Flow rate 0-±7m/s Temperature Convertor; -20-60; Flow Transducer: -30-90/160(Optional) Humidity Convertor: 855RH; Flow Transducer: can measure under water, water depth2m Working Environment Temperature Convertor; -20-60; Flow Transducer: -30-90/160(Optional) Humidity Convertor: 855RH; Flow Transducer: can measure under water, water depth2m Power Supply DC8-36V or AC85-264V Power Consumption 1.5W Dimension 132*150*85mm(convertor) Standard Packing: TUF-2000B host 1 piece TM-1 Transducer (DN50mm~700mm)1 pair Clamp Fixture 1 set 5m Transducer Cable 1 pair English User Manual 1 piece Thermoplastic tube 1 set Certificate of conformity 1 piece Notes: You need to apply the coupling agent on the contact surface of the transducer and the pipeline, as shown in the figure: Because the coupling agent is a colloid. We cannot send it to you through logistics. Hope you can understand! Thanks!
