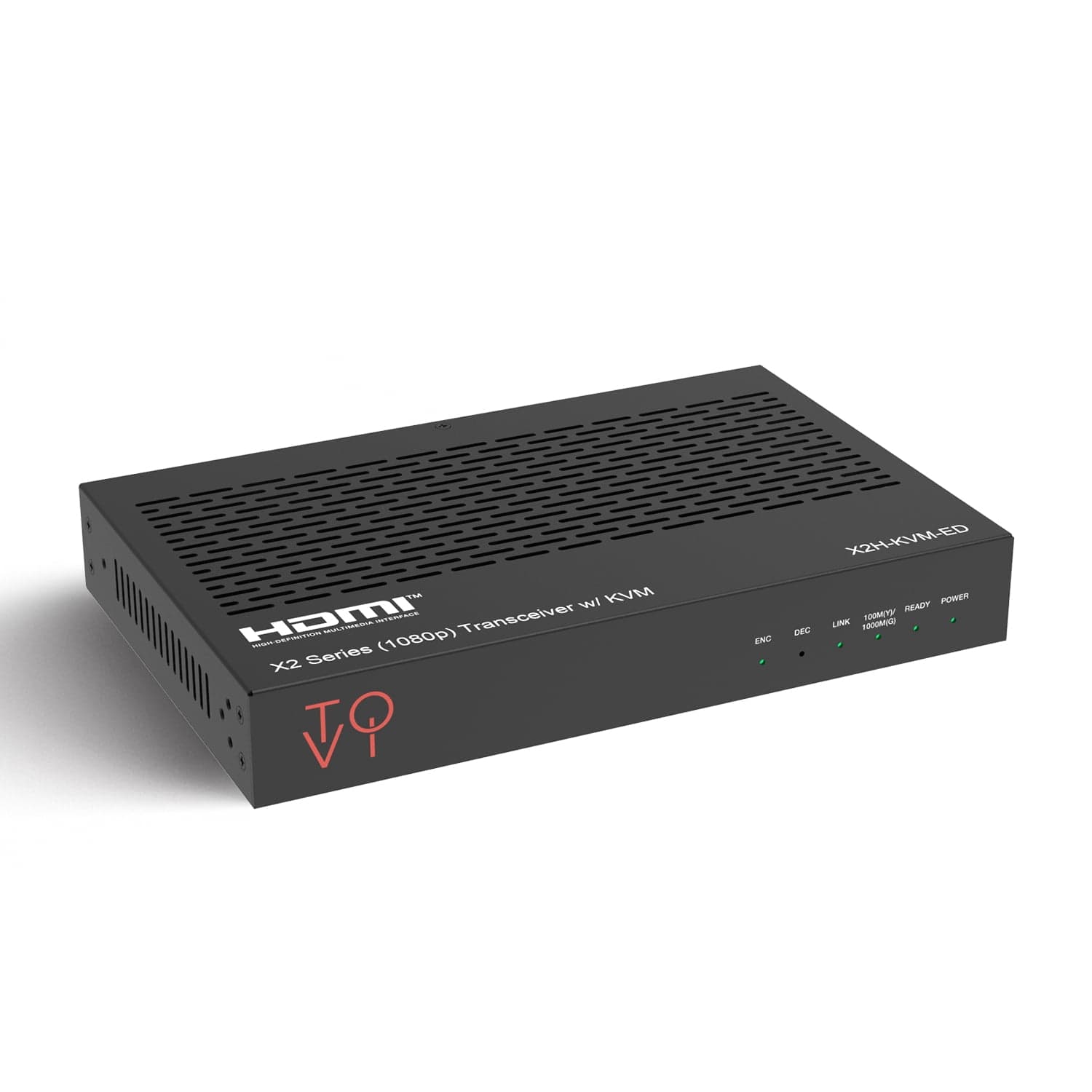

ToVi X2 1080p Transceiver — Video Wall & KVM (X2H-KVM-ED)

Overview: The ToVi X2 X2H-KVM-ED is a dual-role 1080p transceiver engineered for video wall installations and KVM control applications. It combines an integrated encoder and decoder in a single unit and supports both Fiber Optic and RJ45 transmission. Compatibility & Video: Fully HDMI 1.4 and HDCP 1.4 compliant for protected content. Supports resolutions up to 4K@30Hz and 1080p@60Hz with a 4.95Gbps bandwidth to preserve signal fidelity. Uses 4:2:2 encoding/decoding for accurate color reproduction. Distance & Connectivity: Capable of transmitting A/V signals up to 328ft/100m. Offers HDMI local loop-out plus audio extraction for on-site monitoring and flexible audio routing. Audio: LPCM 2.0CH audio is supported with 48kHz sampling rate for clear, high-fidelity sound. Display & Layout Features: Enables high-definition background images, multi-screen splicing, and advanced multi-window roaming and splicing. Each decoder can manage up to 16 sources with dynamic window arrangement and overlay capabilities, including scrolling text and character overlays for alerts and labels. Network & Protocols: Supports H.264/H.265 for smooth integration with IP cameras and surveillance systems. Video wall and signal routing operate over a 1G network, enabling point-to-point extension, multicast distribution, and matrix switching. KVM & Control: Built-in KVM functionality allows one-to-one or one-to-many PC control from a single user station. Control options include KVM, a mobile app, or compatible control servers (X2UH-CB). User rights management provides secure, centralized access control across endpoints. Power: Standard PoE (802.3af Class 3) simplifies installation by providing power over the network without requiring external power adapters.
