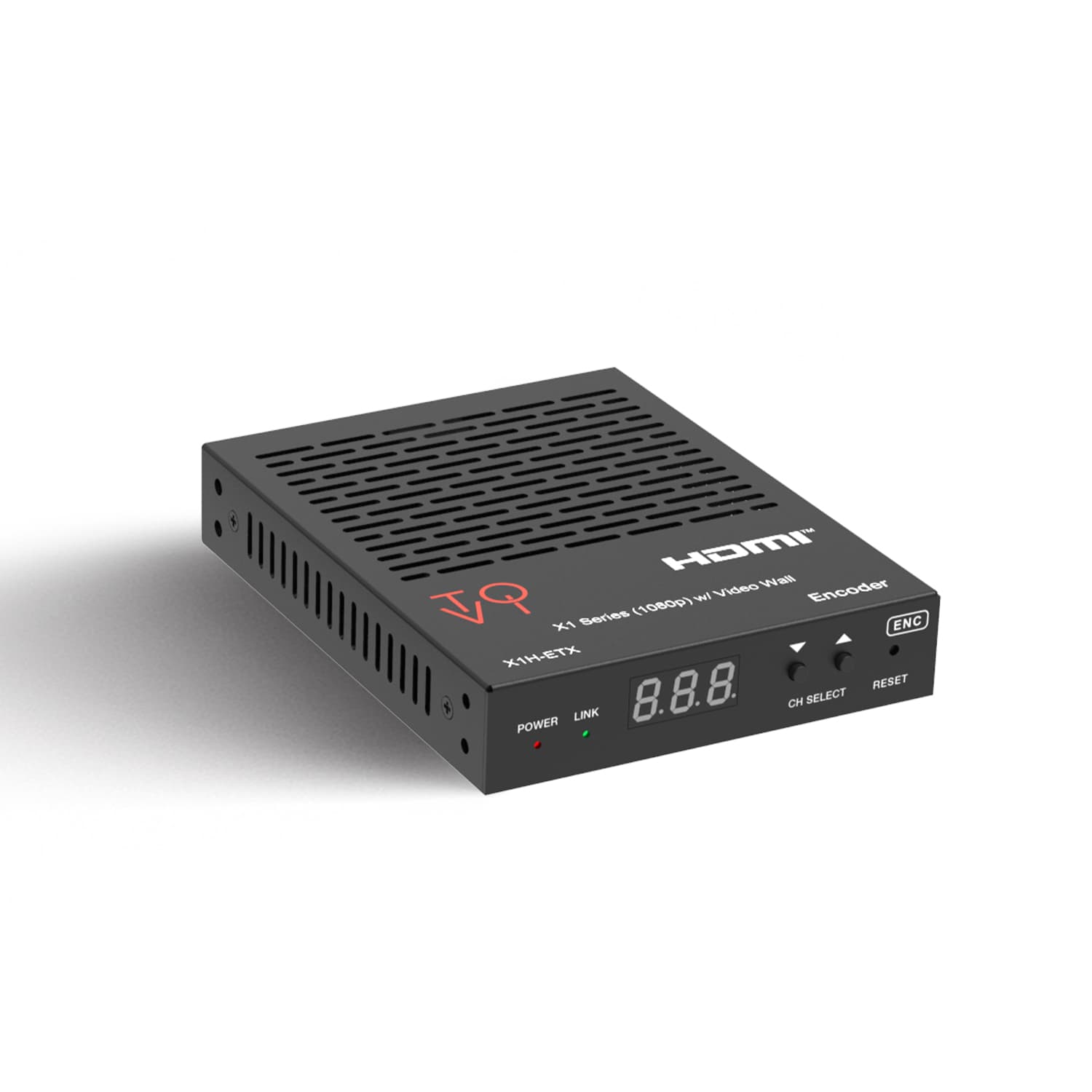

ToVi X1H-ETX 1080p HDMI Encoder for Video Walls (HDMI 1.3 / HDCP 1.4)

The ToVi X1H-ETX is an HDMI encoder built for video-wall and large-scale AV distribution applications. It accepts standard HDMI sources (HDMI 1.3) and is HDCP 1.4 compliant, delivering up to 1920×1200@60Hz with full 4:4:4 color fidelity and a 4.95Gbps video bandwidth for stable, high-quality picture reproduction. Long-distance signal extension is supported over Cat5e/6/6a/7 cabling up to 328ft/100m, and the unit can be deployed across a 1G network to provide flexible AV distribution including multicast, matrix switching, and video walls up to 9×9. Intelligent video-wall management tools enable custom layouts and simplified configuration of multi-screen setups. Audio is handled via LPCM 2.0CH (32/44.1/48KHz), with both embedding and extraction capabilities so audio can be merged with or separated from the video stream as required. The encoder supports main and sub stream encoding to accommodate different network conditions and client requirements. Control and configuration are available through multiple methods: front-panel buttons, RS-232 (with pass-through, guest mode, and single-device control options), TCP/IP, a Web GUI, or the dedicated Control Box (X1H-CB). Stream parameters and system settings can be adjusted through the Web GUI or the X1H-CB for convenient management. Installation is simplified with Power over Ethernet (PoE), enabling single-cable power and data. The device is designed for smart network deployment to provide a quick, flexible, and reliable AV distribution system.
