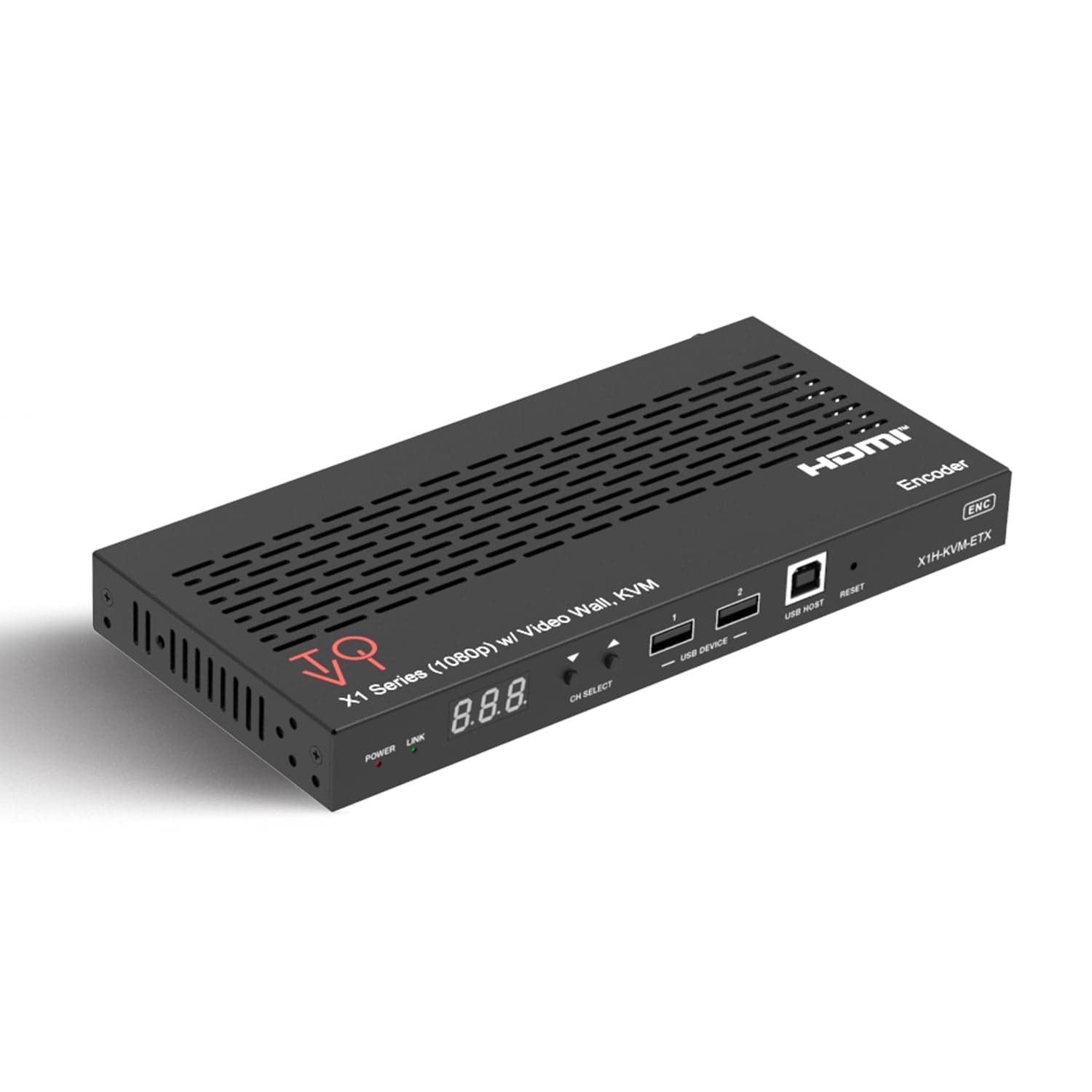

ToVi X1 1080p HDMI Encoder with KVM & Video Wall Support (X1H-KVM-ETX)

The ToVi X1 encoder (X1H-KVM-ETX) is an HDMI 1.3 / HDCP 1.4 compliant unit designed for 1080p AV distribution with integrated KVM capabilities. It handles video up to 1920x1200@60Hz (4:4:4) and provides a 4.95Gbps video bandwidth for reliable full-HD performance. HDMI signals can be extended up to 328 ft (100 m) over CAT 6/6A/7 cabling, and the device can be deployed across a 1G network switch in point-to-point, multicast, distributed matrix or video wall modes (up to 9x9). Advanced video wall management tools enable creative multi-screen layouts, and a local HDMI loop output lets you monitor the source at the encoder in real time. Audio embedding and extraction are supported via analog inputs/outputs, while USB/KVM extension permits remote control of PCs and servers with one-to-one or one-to-many USB device connections. The unit also passes bi-directional IR and RS-232 for full remote control, and offers dual stream encoding (main + sub) to optimize network load. Control options include front panel buttons, IR, RS-232, TCP/IP, Web GUI or the optional controller box (X1H-CB). PoE Support (802.3af, Class 3 PD Mode) and a smart network design simplify installation and enable fast, modular system integration.
