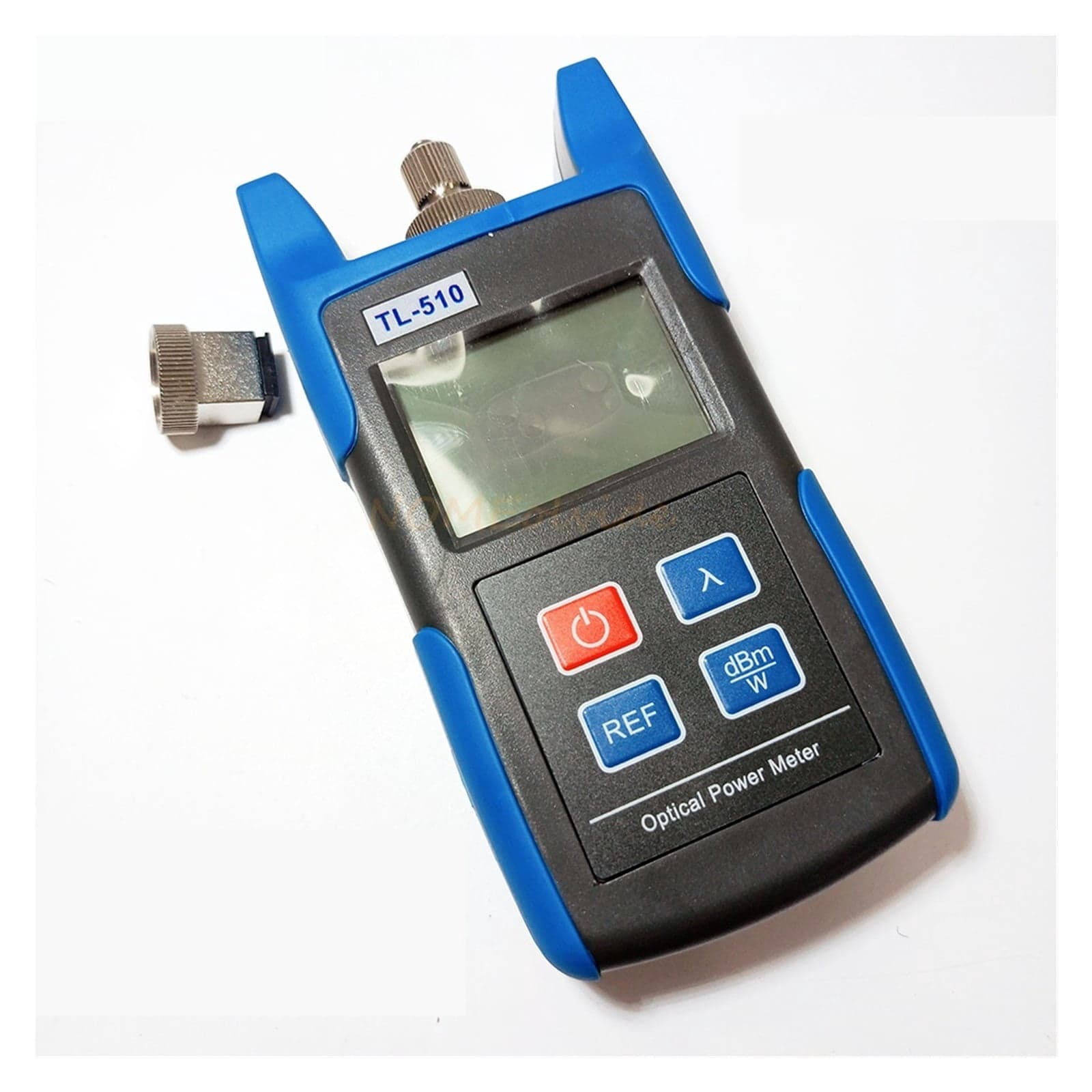

TL-510 Mini Handheld Optical Fiber Power Meter — OPM with SC/FC Interfaces

Compact TL-510 handheld optical power meter designed for precise fiber testing. It measures optical power from -70dBm to +10dBm and supports wavelengths across 800nm to 1700nm, including common fiber wavelengths: 850nm, 1300nm, 1310nm, 1490nm, 1550nm and 1625nm. The detector uses an InGaAs probe and delivers a measurement accuracy of less than ±3% at -10dBm. Dual display modes let you view results in linear or logarithmic formats: the linear mode provides 0.1% resolution while the logarithmic mode resolves to 0.01dBm. Built as a rugged mini OPM for field and lab use, the unit accepts SC and FC connectors and operates reliably between -10°C and +50°C, with a storage temperature range of -20°C to +70°C.
