Thinkcar TKT05 Black OBD2 sku-383243869 850022568060

The Thinkcar Thinktool Pro is a handheld, multi-module OBD2 scanner tablet for full-system diagnostics on cars and trucks. Model TKT05 is listed under Diagnostic and Test Tools as sku-383243869; UPC 850022568060. The listed color is Black, while the specifications describe red and black.

Its software supports more than 115 vehicle brands and over 10,000 models from 1996 onward, with coverage described as growing. Compared with the original, the Pro edition has updated software, a larger screen and battery, and 32-gig memory. Automated detection, testing, reporting and printing can run without human intervention. ThinkFile gathers repair data and reports in one place.

Active testing and key or ECU coding are supported, along with TPMS sensor activation, matching and learning. The tool supports OE-level functions including AutoAuth, component functions for some foreign vehicles, and modules such as a printer and work light. It has more than 31 reset functions, including headlight and throttle matching, brake pad zeroing and ABS emission reading and clearing.

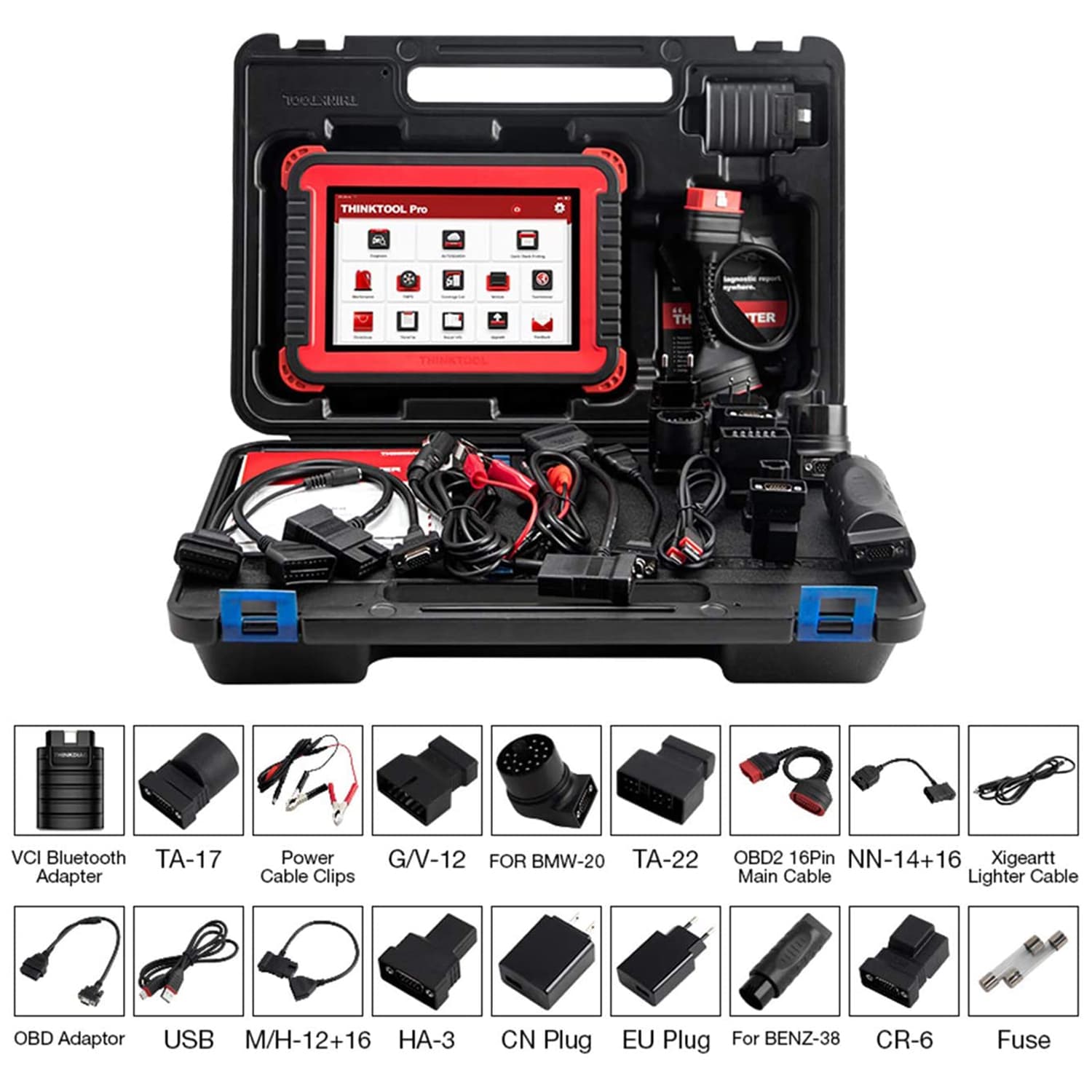

It includes 5 free diagnostic software for the first year, a carrying case and necessary connectors. Thinktool Pro does not support programming. The screen is 8 inches with 1280*720-pixel resolution. Voltage is 9 to 18 volts; memory is 32 gigabytes; battery capacity is 6,000 milliamp hours. Dimensions are 12 x 10 x 1 inches, weight is 7 pounds, and the manufacturer warranty is 1 year.
