The ROP Shop 3600 PSI 2.5 GPM Horizontal Triplex Pressure Washer Pump for Dewalt DH3028, DXPW3025

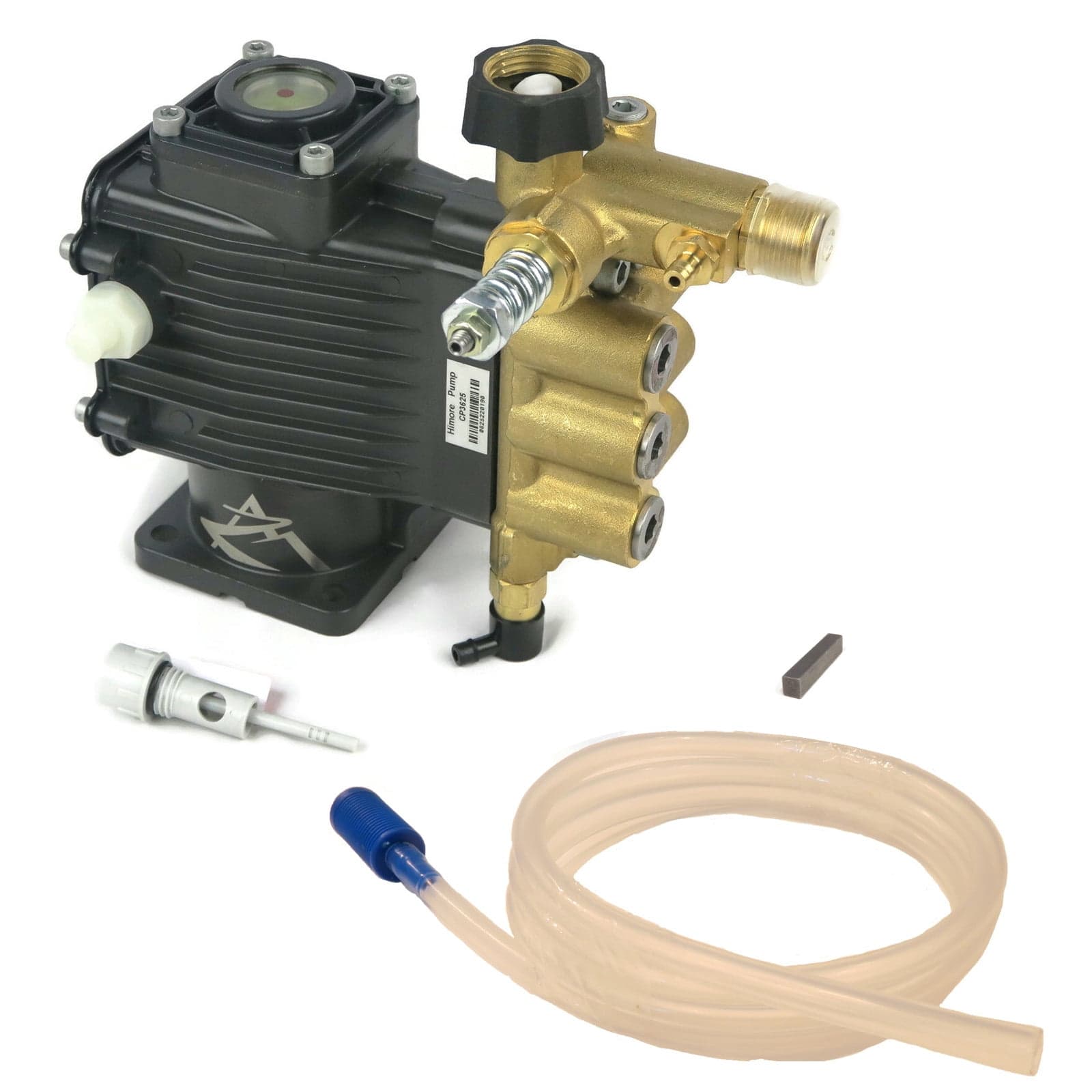

Overview: Replacement horizontal triplex pressure washer pump from The ROP Shop designed to fit Dewalt DH3028 and DXPW3025 models. Built for heavy-duty cleaning with a chemical injector, unloader valve and a pre installed thermal release valve. Key specifications: - Max Pressure: 3600 PSI - Max Flow: 2.5 GPM - Max Pump Speed: 3500 RPM - Minimum HP: 6.5 HP (pump requires at least 6.5HP to handle rated PSI) - Max Temp: 140° F - Male Outlet: 22mm Threaded - Inlet: Standard Garden Hose - Shaft Diameter: 3/4" - 4 Bolt Pattern: 2 9/16" Center to Center between Outer Holes What’s included: (1) Horizontal Triplex Pressure Washer Pump with Chemical Injector, Unloader Valve, Thermal Release Valve (pre installed), (1) Oil Reader, (1) Keyway, and (1) Hose — comes as shown in the first image. Installation notes: This unit is intended for horizontal mounting only and MUST have the oil dipstick pointing up when installed. The oil cap can be moved to the opposite side to permit alternate mounting orientation. The pump head CANNOT be flipped. Safety reminder: Do not operate this pump above its maximum PSI rating. Exceeding the rated PSI can cause pump damage (not covered by warranty) and may lead to serious bodily injury.
