The ROP Shop 3/4" Shaft 3000 PSI Horizontal Pressure Washer Pump for Briggs & Stratton 020655-0, 020364-0

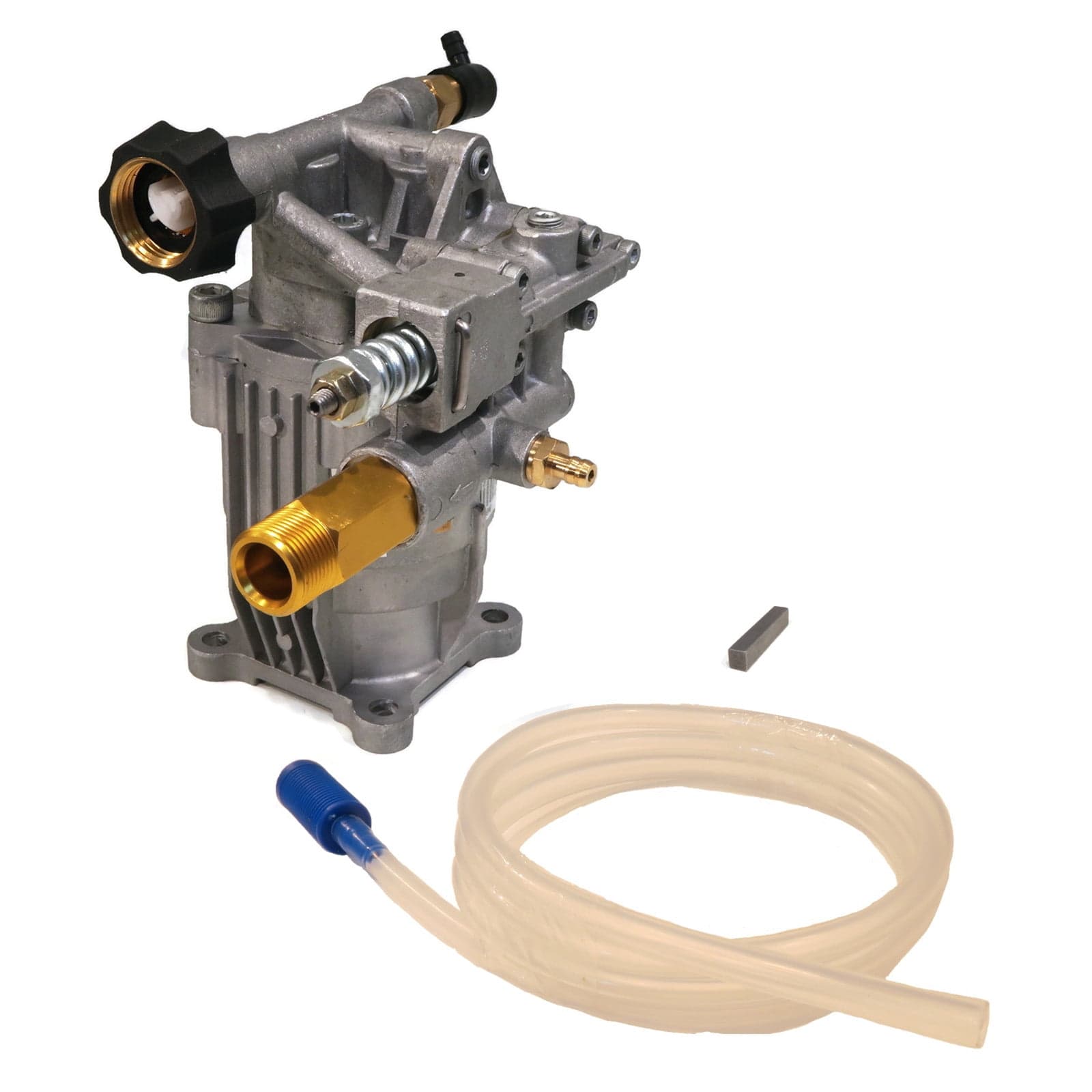

Replacement horizontal pressure washer pump compatible with Briggs & Stratton part numbers 020655-0 and 020364-0. Designed for up to 3000 PSI performance with a maximum flow of 2.5 GPM and a maximum pump speed of 3450 RPM. Shaft Diameter: 3/4". Four-bolt mounting pattern: 2 5/8" center-to-center between outer holes. Maximum water temperature rating: 140° F. Connections: inlet accepts a standard garden hose; outlet tube connection is 22mm male. Package includes (1) horizontal pressure washer pump with chemical injector, unloader valve, thermal release valve, and outlet tube — comes as shown in the first image. Refer to images 2 and 3 for additional details. Mounting and operation notes: the pump is intended for horizontal installation and may be oriented so hose connections remain accessible. The pump head cannot be flipped, though the unit itself can be mounted in different directions. A minimum of 6 HP is required to reach the rated PSI. Safety and warranty: do not operate this pump above its maximum PSI rating (3000 PSI). Exceeding the rated pressure can cause pump damage (not covered by warranty) and may result in serious bodily injury.
