Eugene Color Other Electrical Tools TF03K Battery Tester

Eugene Color Electrical Tools listing in Other color for the TF03K-A battery capacity tester, reference 12003186. The title lists DC10~120V and a 1m cable; the description lists DC8~120V, an 8~120V range and selectable 50A/100A/350A/500A versions. It is described for lithium iron phosphate, lead-acid and nickel-hydrogen rechargeable batteries.

The source lists 12.0mA working power consumption (20.0mA maximum), 5.0mA standby consumption (8.0mA maximum), a DC12V operating value (DC50V maximum), +/- 1.0% voltage and current acquisition accuracy, a 0~50C working range, and a 0.1-999Ah capacity setpoint. Backlight current is listed as 80mA (100mA maximum), or 50mA (60mA maximum) with the backlight off.

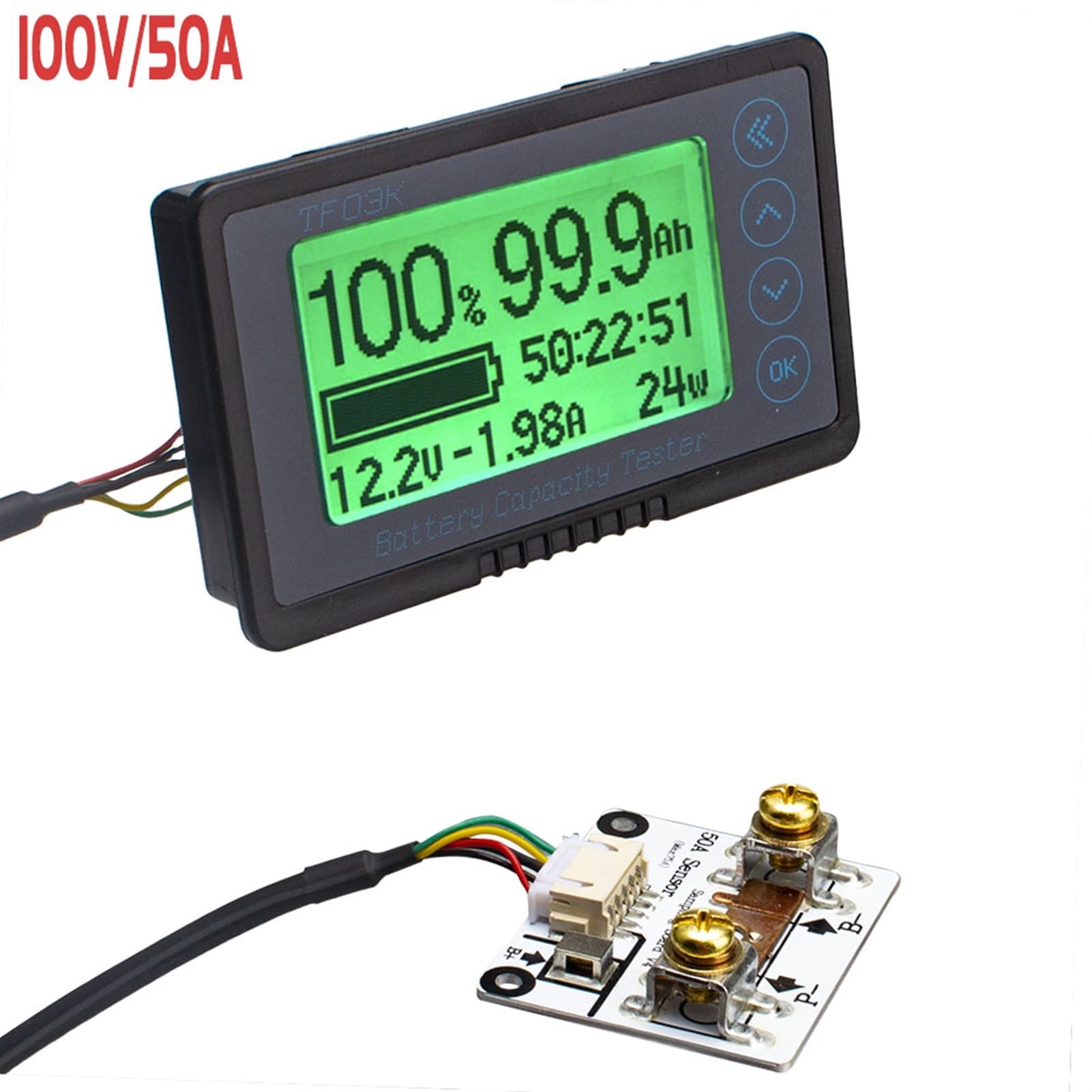

The meter uses a 4-line connection: 2 sampling lines and 2 power lines, with the sampler in the battery cathode circuit so charge and discharge current passes through it. The package lists 1 tester, 1 external sampler, 1 x 1M shielded cable and 1 English manual.

The display shows 1. remaining battery capacity, 2. capacity percentage, 3. battery voltage, 4. battery current, 5. output power and 6. remaining charge or discharge time. The meter measures 86x54x22mm, the PCB with LCD screen measures 82x50x18mm, the display window measures 65x37mm, and the sampler measures 122x60x22mm.

The source asks buyers to specify their preferred interface or receive the default TF03K-A.
