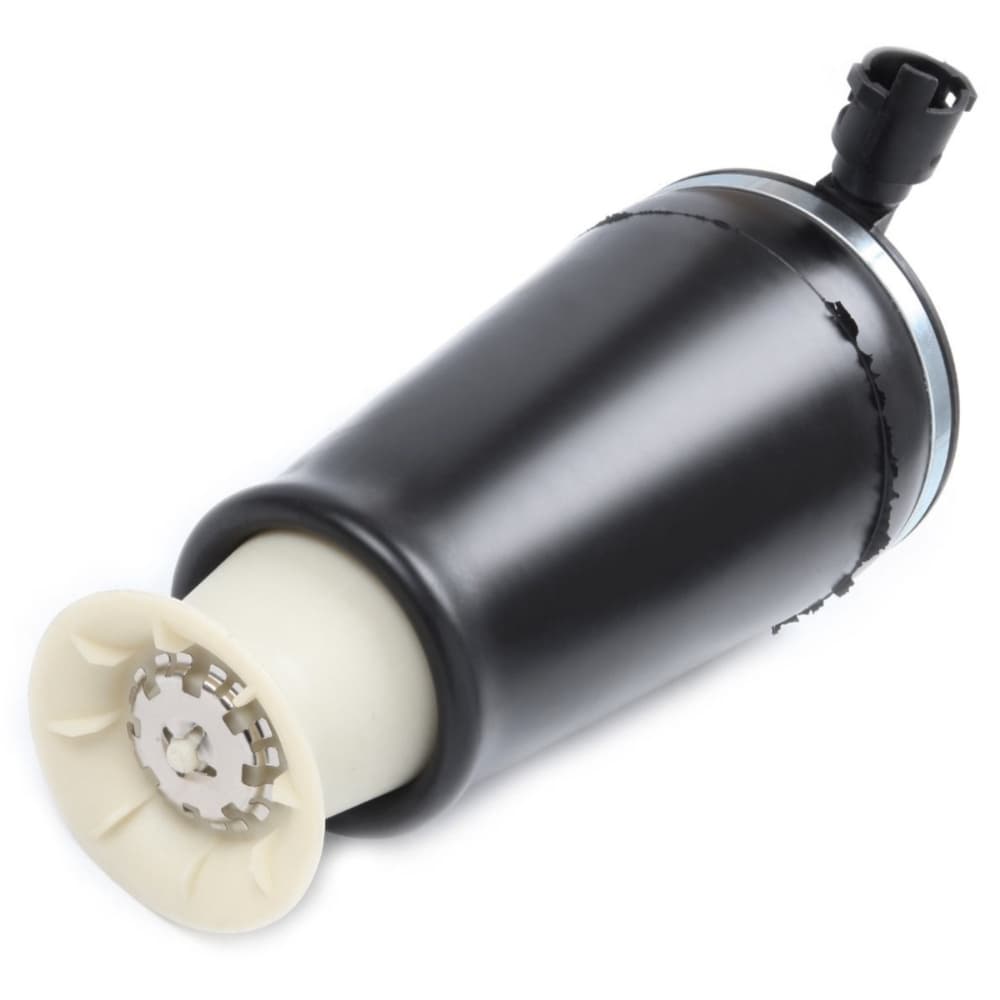

Teledu Rear Pair Air Suspension Spring For Lincoln Town Car Ford Crown Victoria

2.Set the steering to straight ahead 3.Raise vehicle 4.Remove rear wheel 5.Remove air spring solenoid retaining-clip 6.Rotate solenoid counterclockwise to the first stop, and then carefully pull out to vent the air pressure from the air spring. After air spring is deflated, turn again and remove solenoid from air spring 7.With pliers, or a suitable hooked tool, remove the clip that secures the top of the air spring to the chassis Note: To access the clip, go under the wheel arch, between the body of the vehicle and the chassis 8.Remove the piston-to-axle spring seat clip.(air spring is held in place with a round retainer clip under the piston cap. To unsnap clip, gently pry between the piston and the axle. Clip will unsnap when pressure is applied) *Installation Guideline: 1.Change o-rings on the air spring solenoid 2.Install solenoid,and replace solenoid retaining-clip 3.Replace the top air spring retaining-clip 4.Clip the bottom of the air spring piston to the axle 5.Replace wheel assembly 6.Remove all safety stands and lower vehicle 7.Turn the air suspension switch back to the on position,and start vehicle.Vehicle should rise back to factory trim height * Removal Warning & Notice: Vent all air pressure from the air suspension system prior to disconnecting or removing any air suspension components. It is dangerous to remove air suspension components while under pressure. Failure to follow this instruction may result in serious personal injury Failure to observe the following instructions may result in a sudden failure of the air spring or suspension system Any rear spring which is unfolded must be refolded prior to being installed in a vehicle The air spring refolding procedure should only be used for an air spring which has never supported the vehicle\'s weight while in the incorrectly folded position Do not attempt to inflate any air spring which has been collapsed while uninflated from the rebound hanging position to the jounce stop When installing a new air spring, care must be taken not to apply a load to the suspension until springs have been inflated using the air spring fill procedure After inflating an air spring in the hanging position, it must be inspected for correct shape 1.NOTE: The vehicle must be positioned on a suitable lifting device prior to deflating the air suspension system With the vehicle in NEUTRAL, position on a hoist until the wheel and tire assemblies are slightly above the ground 2.Using the scan tool, vent the air springs 3.Remove the air spring retainer 4.Detach the air spring from the rear axle 5.Remove the air spring in the following sequence 1.Disconnect the air spring solenoid electrical connector 2.Compress the quick connect locking ring and pull out the air tube 3.Remove the air spring * Frequently Asked Questions : How to prevent the damage of air springs/How to extend the service life of air springs/struts etc.? An air strut with separable air springs A complete air suspension shock What is the difference between an air spring and an air strut? Which side of my car is the Right and Left? *OEM Part Number: 3U2Z5580AA,3U2Z5580BA,3U2Z5580PA F8MZ5560AA,F8VZ5560AA,FOVY5560A 6W1Z5560AA *Item Specifications: Key Words: Rear Pair Air Suspension Spring Bags For 1990-2011 Ford Crown Victoria Lincoln Town Car Mercury Grand Marquis Marauder Package Includes: Pair for Rear Left & Right Air Suspension Spring Bags Brand: Unbrand Manufacturer Part Number: E805118CP01 Interchange Part Number: 3U2Z5580PA Air Suspension Spring Bags Other Part Number: 3U2Z5580AA 3U2Z5580BA Air Ride Spring Bags Placement on Vehicle: Left, Right, Rear Fitment Type: Direct Replacement Included Hardware: Mounting Hardware Adjustable: Yes Superseded Part Number: 6W1Z5560AA F8MZ5560AA F8VZ5560AA Shocks Strut Custom Bundle: Yes Type: Air Suspension Spring Features: Sealed Manufacturer Warranty: 1 Year Material: Iron,Aluminium Alloy,Rubber Size: Single Dimension(CM) 37.00(Length)*18.00(Width)*18.00(Height) Single Weight(KG): 1.520 Upper Mounting Isolator Included: No Isolator Required Lower Mounting Isolator Included: No Isolator Required Upper Mount Type: Base Cup Lower Mount Type: Base Cup
