Team Blacksheep Crossfire Diversity Nano RX sku-624970651

Team Blacksheep Crossfire Diversity Nano RX is a compact diversity R/C receiver listed in Play Vehicles & Toy Cars as sku-624970651, UPC 741587428244. It is intended for long-range miniquads and smaller wings and has 8ch outputs supporting PPM, SBUS and CRSF. Its chip-based, dual-input diversity design includes filtering for noise from onboard video systems and a power-redundancy circuit.

An optional 1s LiPo backup battery connects to its port; the battery is not included. The backup battery can keep the receiver running for a full day after the onboard electronics stop working. With backup power, beacon mode can transmit GPS coordinates and RF signals to help locate an aircraft, including one without GPS. The receiver charges the backup battery when the rig is powered.

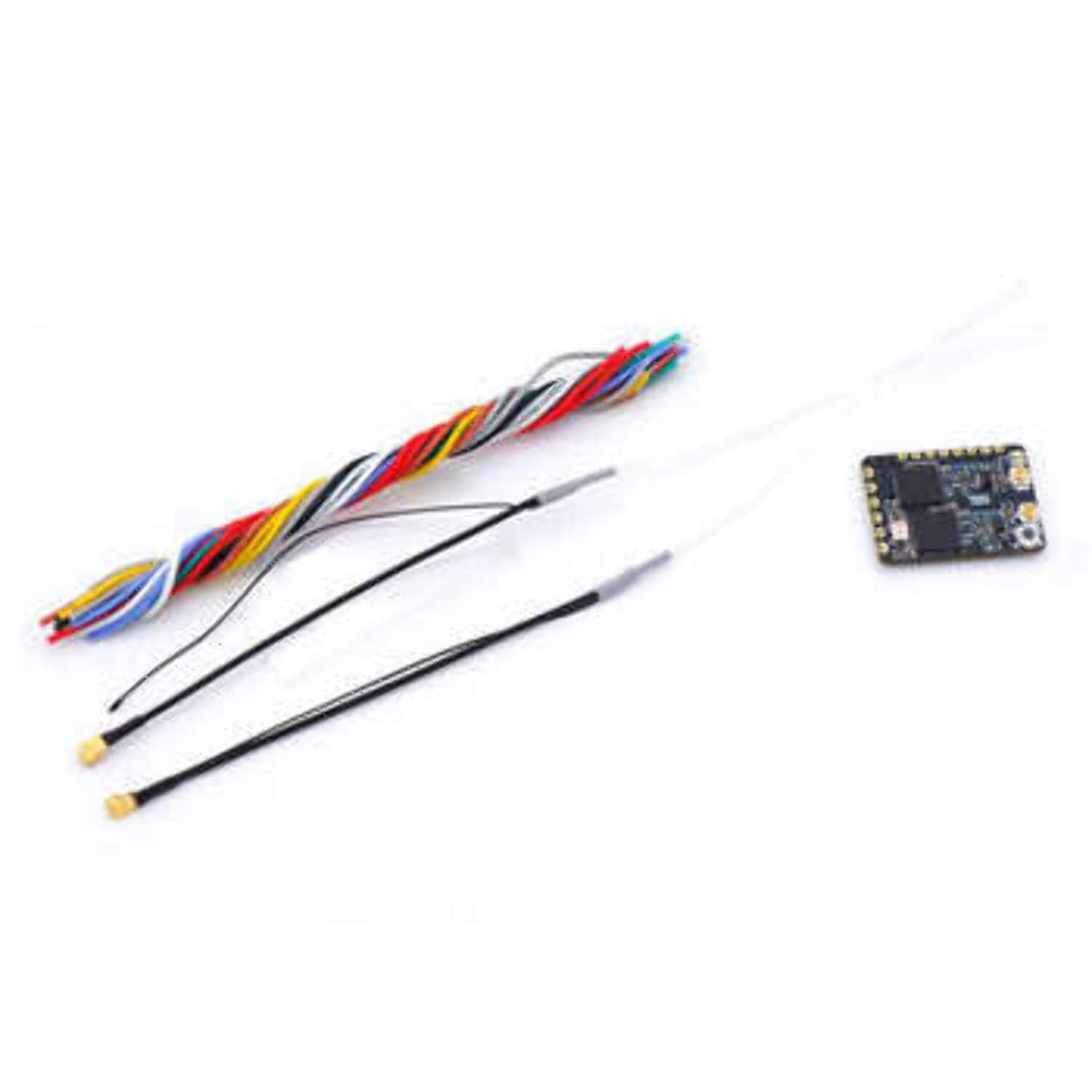

Update a Crossfire transmitter to V2.88 or above before binding; the receiver specification also lists required firmware V2.87. The receiver weighs 1.8g and measures 24mm x 18mm. Input power is +3.3V to 8.4V. The package includes 1x receiver, 2x Crossfire Micro Receiver antennas, 1x spare shrink tube and 14x 30awg silicon connection wires.

A declaration of conformity, quickstart guide/manual and FCC certification are listed as downloads.
