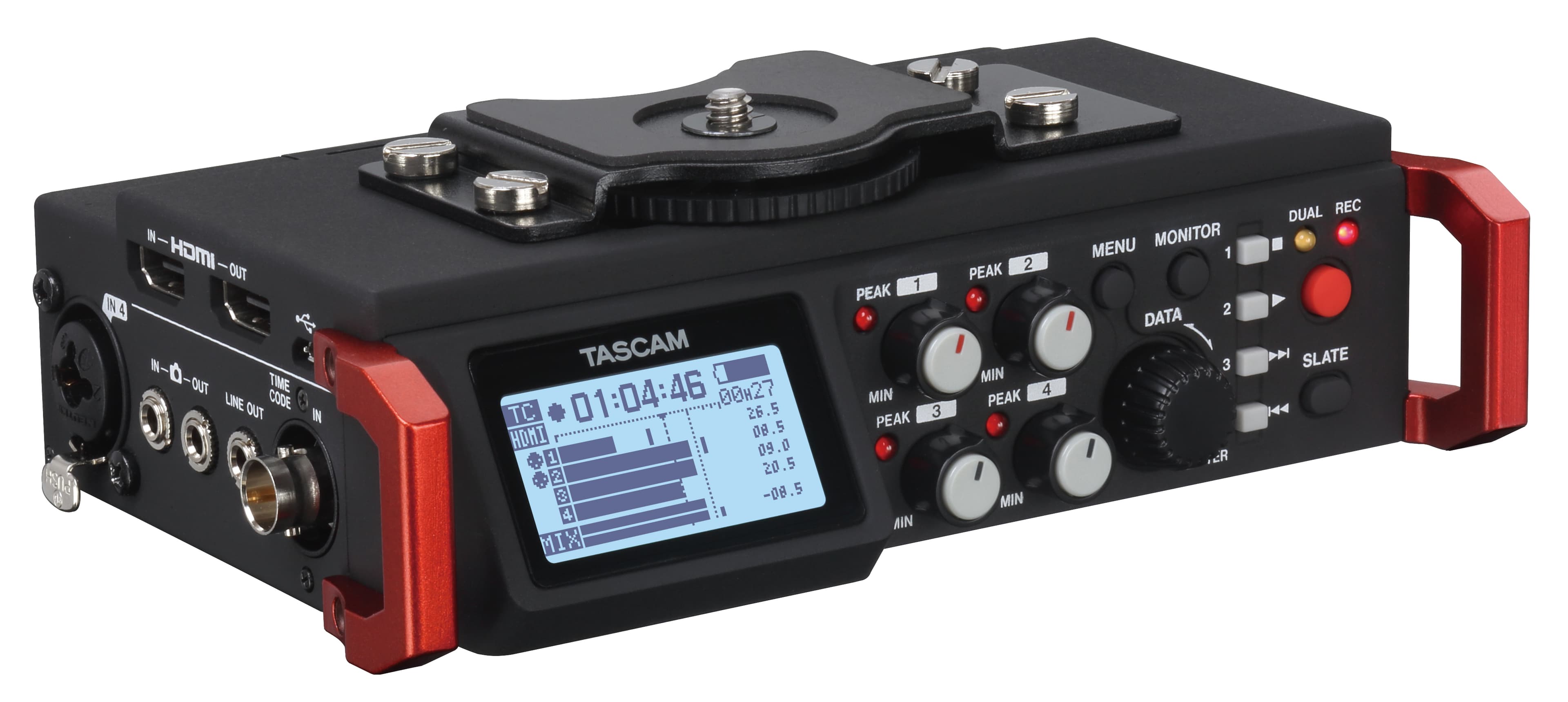

Tascam DR-701D 6-Track Field Recorder for DSLR

SD/SDHC/SDXC cards used for recording media 6 maximum simultaneous recording tracks MONO, STEREO, 2MIX, DUAL MONO, DUAL ST and DUAL2MIX recording modes Recording formats: 16/24-bit, 44.1/48/96/192kHz (WAV/BWF) (192kHz only for two-track recording) Built-in original TASCAM HDDA mic preamps provide high audio quality Input levels can be adjusted separately for each track XLR/TRS inputs support +4dBu line level and 24/48V phantom power Clock and record start/stop can be synchronized with a camera using the HDMI port DR-701D audio signal can be output to an external camera or recorder from the HDMI OUT or line output Cascade function using HDMI connections allows multiple DR-701D transport and monitoring operations SMPTE Timecode can be input through the TC IN connector to add recording start times to files Timecode generator (RTC) allows recording start times to be added to files even when there is no timecode input Plug-in power mics and high output mics (EXT IN 1/2) supported OUT (CAMERA OUT) connector can output audio mixed by the DR-701D to a DSLR camera IN (CAMERA IN) connector enables monitoring the sound from a DSLR camera through the DR-701D High quality audio output through a line output jack separate from the headphones jack Headphones jack with 50mW+50mW maximum output Tripod attachment threads (bottom), camera screw attachment that can be installed or removed with a coin (top) and shoe mount (top) included Handles on the left and right sides of the front protect the control surface and also enable attachment of a shoulder strap Transport and SLATE buttons made of rubber suppress noise during operation HOLD switch prevents misoperation 128×64-dot graphic LCD with backlight LED lights have high visibility even in direct sunlight High-speed transfer of files to computers possible using USB 2.0 Micro-B type USB cable included Powered by 4 AA batteries, USB bus power or a PS-P515U AC adapter (sold separately) BP-6AA external battery pack (sold separately) enables operation for even longer times Optional RC-3F foot switch and RC-10 wireless remote control can be connected (both sold separately) Built-in mixer enables pan and level adjustments as well as solo monitoring and can output a mix of 4 channels GANG function allows the levels of multiple channels to be controlled simultaneously Individual channel trim settings shown 5-position low-cut filter (50/80/120/180/220 Hz) cuts unwanted low frequencies Multiband limiter automatically adjusts input overloads (stereo-linking possible with 1/L and 2/R) Delay function can compensate for distances between mics (+/-150 ms) Mid-side decoder function enables use with mid-side stereo mics Slate tone insertion functions (AUTO/MANUAL) Slate tone insertion points can be selected (recording start or recording start and stop when slate AUTO function used)
