TAMP125 4G/LTE 5G MIMO Antenna Module — 600~960 / 1710~6000MHz, 4x4 & 2x2 MIMO, (4) SMA

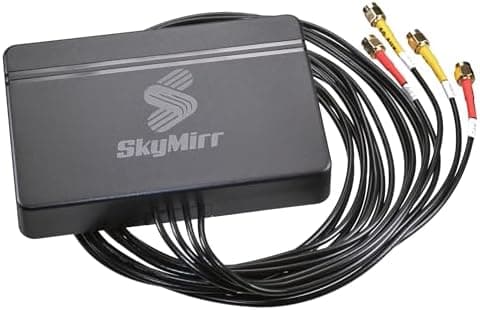

Typical applications: 4G / 5G cellular routers or CPEs. The TAMP125 antenna module measures 125 mm x 80 mm x 22 mm (excluding cables and connectors). It provides multi-band coverage across 600~960MHz, 1710~2170MHz, 2500~2690MHz and 3300~6000MHz. MIMO capability includes 4x4 MIMO for 1710~6000MHz and 2x2 MIMO for 600~960MHz. Peak gain reaches up to 2.7 dBi. Connectivity is via (4) SMA connectors. RoHS Compliant.
