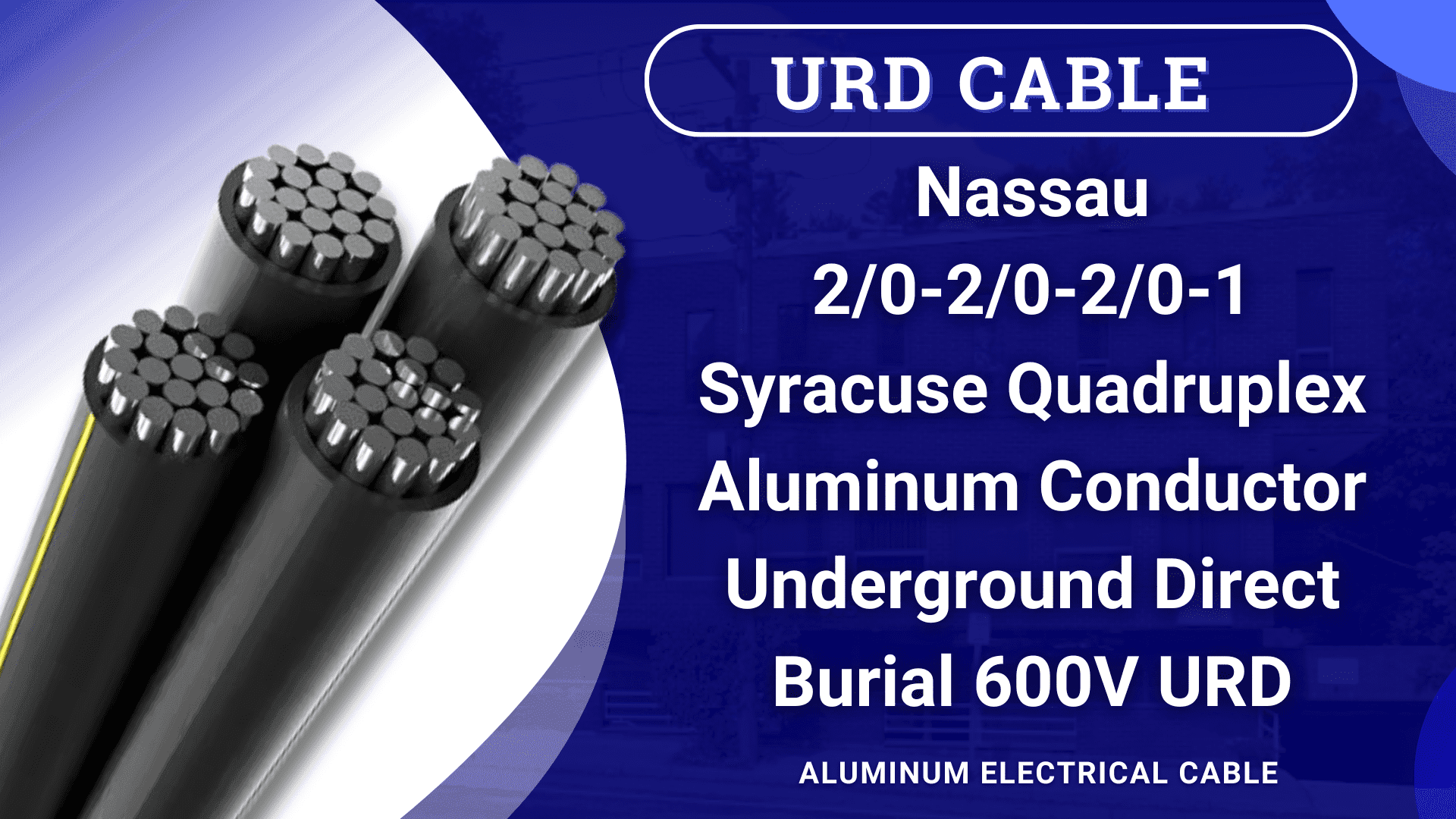

Syracuse Aluminum URD Quadruplex Cable 2/0-2/0-2/0-1, 600V — 1000 ft

600 Volt Syracuse aluminum URD quadruplex cable supplied in a 1,000 ft length. Configuration: three 2/0 AWG phase conductors with a 1 AWG neutral. Conductor construction: 19-strand aluminum for the 2/0 conductors. Insulation thickness: 80 mils. Physical dimensions: single-phase conductor diameter 0.555 in; overall cable O.D. 1.340 in. Weight: 664 lbs per 1,000 ft. Ampacity: 225 Amps for direct burial installations and 170 Amps when run in duct.
