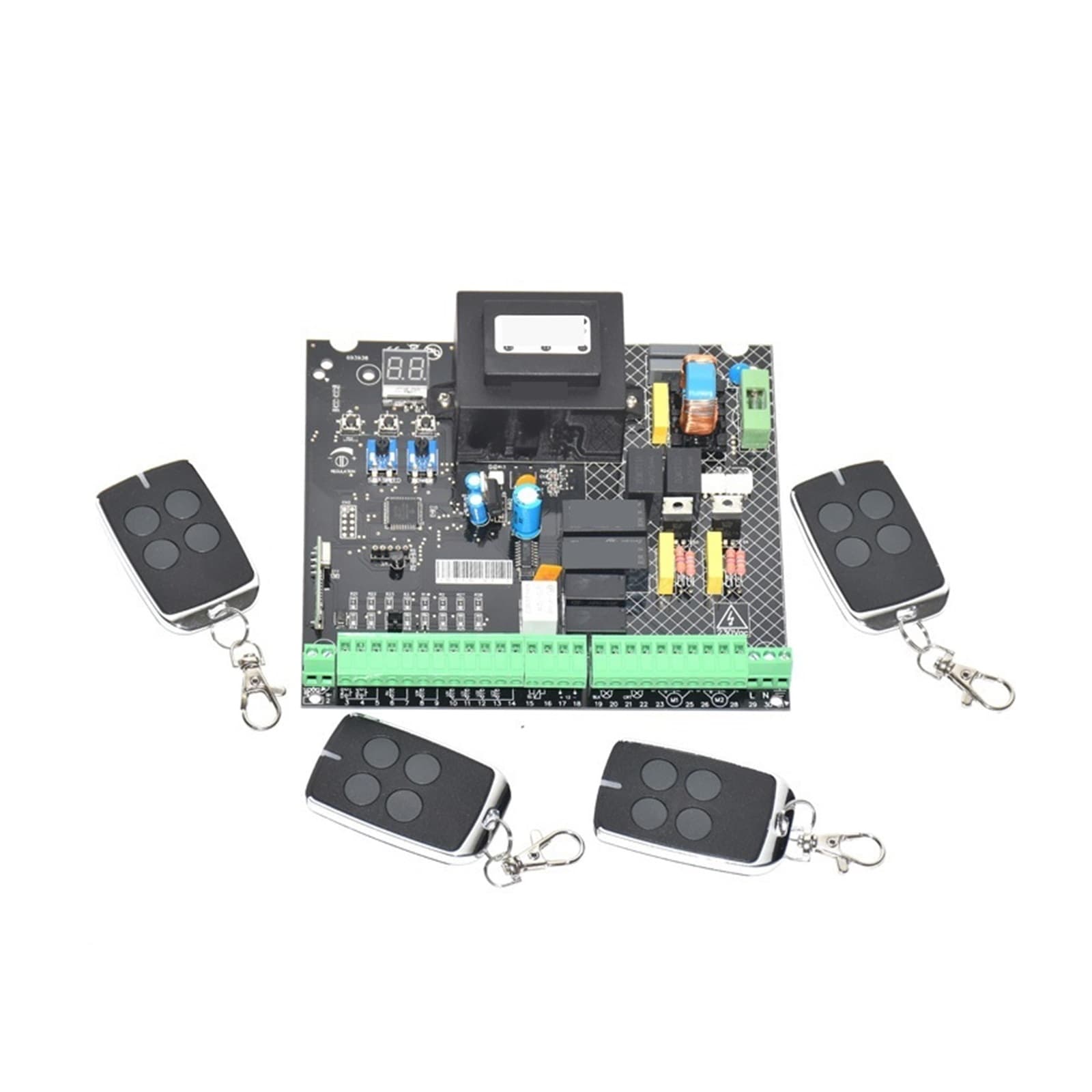

Swing Door Opener Motor Circuit Board Controller Card For AC Swing Linear Motor Actuators

Swing Door Opener for AC Swing Linear Motor Actuators It can only be used with our remote control; Receiving Antenna: 1. Antenna, 2. Antenna Ground External button switch: 3. Door open button (normally open), 4. Door close button (normally open), 8. Stop button (normally open), 5. Common terminal Infrared protection device: 6. Infrared photoelectric cell in front of the door (normally closed), 7. Infrared photoelectric cell behind the door (normally closed), 9. Common terminal Host limit: 10, host 1 open limit switch (normally closed), 11, host 1 close limit switch (normally closed), 12, host 2 open limit switch (normally closed), 13, close limit switch host Limit switch 2 (normally closed) Output power: 17-18 mains (24 Vac) External accessories: 15-16 electric lock (12Vac), 19-20 alarm light (220Vac), 21-22 spotlight (220Vac) Host wiring: 23-24-25 (common terminal) host 1, 26-27-28 (common terminal) host 2 Input power: 29-30 input power (220 Vac), 31 ground protection Adjustment knob:
