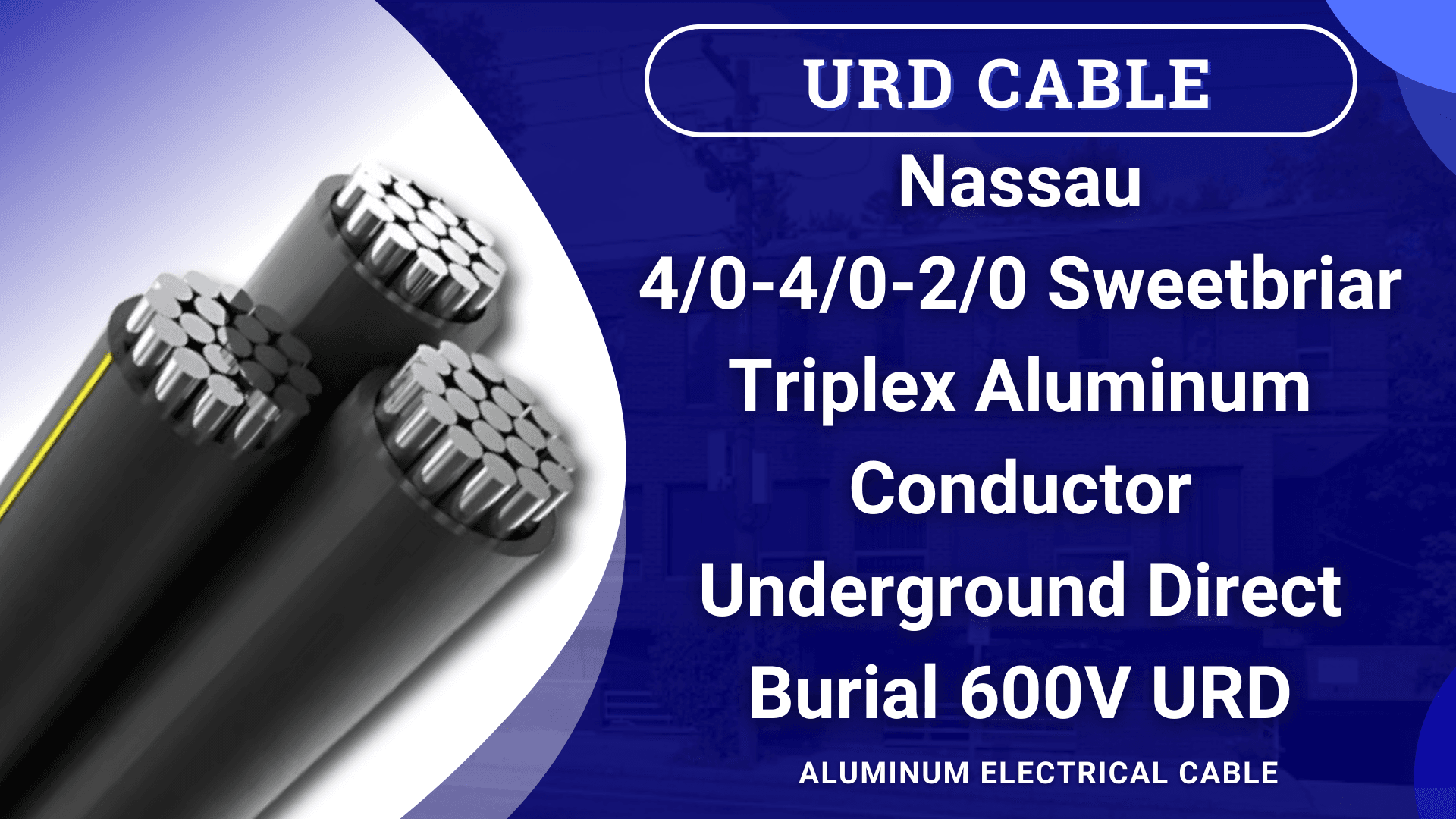

Sweetbriar Triplex URD Aluminum Cable 200' Direct Burial 4/0-4/0-2/0

Overview: Sweetbriar triplex URD aluminum cable supplied in a 200' length for direct-burial installations. It features two 4/0 AWG phase conductors with a 2/0 AWG neutral. Conductor construction: Phase conductor size: 4/0 AWG (19-strand). Neutral size: 2/0 AWG. Insulation & dimensions: Insulation thickness: 80 mils. Single-phase conductor diameter: 0.672 inches. Overall outside diameter (O.D.): 1.389 inches. Weight & ampacity: Cable weight: 739 lbs. per 1000 ft. Rated ampacity when installed direct burial: 315 Amps; when run in duct: 240 Amps.
