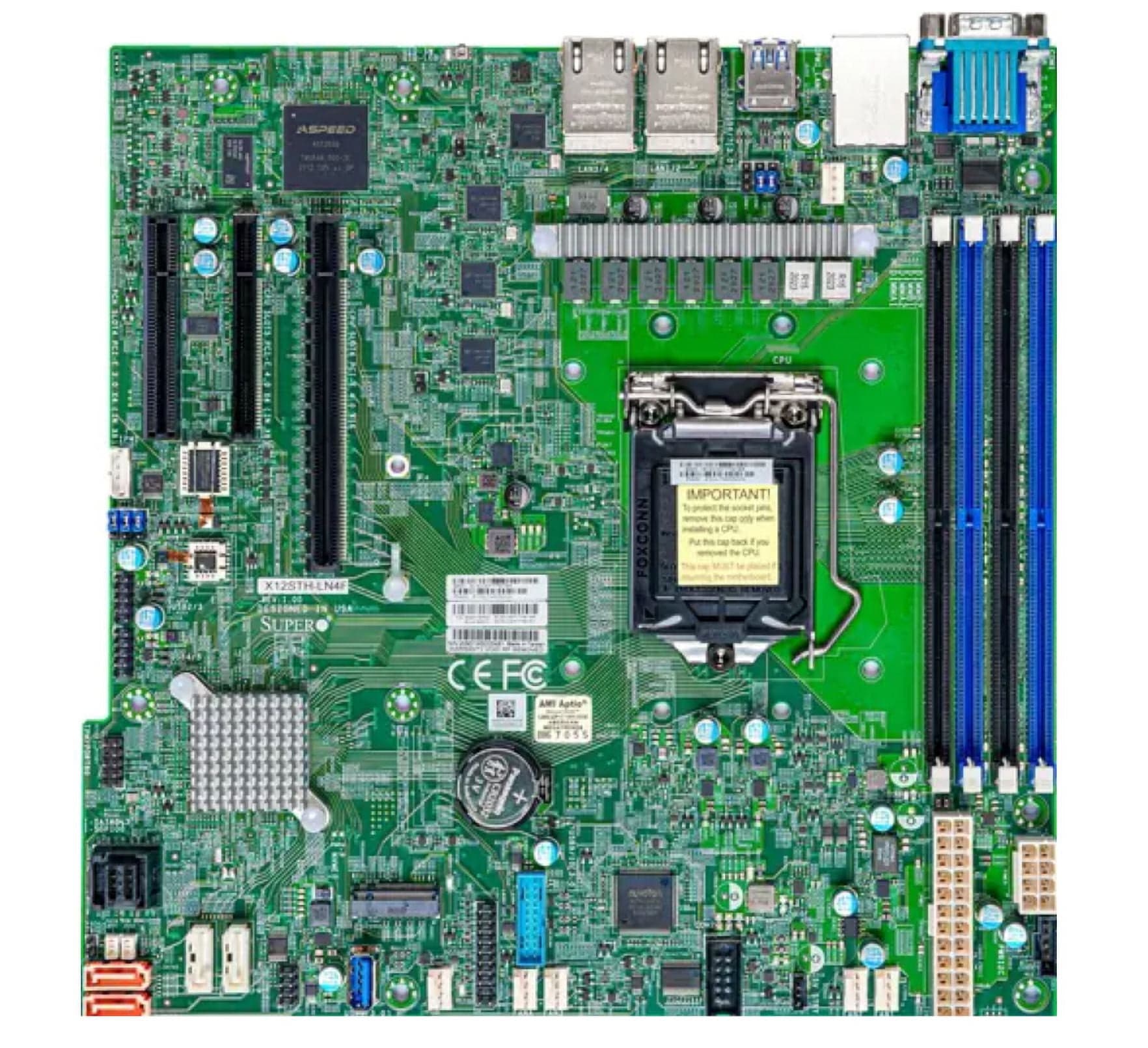

Supermicro X12STH-LN4F Micro-ATX Motherboard - Intel C256, LGA-1200 (Socket H5), DDR4-3200 ECC, PCIe 4.0, Quad LAN - *NEW* Full Warranty

Overview: The Supermicro X12STH-LN4F is a Micro-ATX server/workstation board built on the Intel® C256 chipset that supports Intel® Xeon® E-2300 processors and 10th Generation Intel® Pentium® processors in a Single Socket LGA-1200 (Socket H5). Supported CPUs can draw up to 95W TDP. Memory: Four DIMM slots accept up to 128GB ECC UDIMM at DDR4-3200MHz. Expansion: One PCIe 4.0 x16 slot, one PCIe 4.0 x4 (in x8 slot) and one PCIe 3.0 x4 (in x8 slot) provide flexible add-in card options. Storage: M.2 support via PCIe 3.0 x4 with M.2 form factors 2280 and 22110 and M-Key. The Intel® C256 controller offers eight SATA3 (6 Gbps) ports with RAID 0,1,5,10 support. Networking & I/O: Quad LAN is provided with Intel® Ethernet Controller I210. Onboard I/O includes 1 VGA, 2 COM ports and a TPM header. Two SuperDOM connectors with built-in power are available. USB: 5x USB 3.2 Gen1 (2 rear, 1 Type-A, 2 via header) and 6x USB 2.0 (2 rear, 4 via headers). Graphics: Supports Gen12 integrated GPU. This listing is for a *NEW* Supermicro X12STH-LN4F motherboard and includes full warranty coverage.
