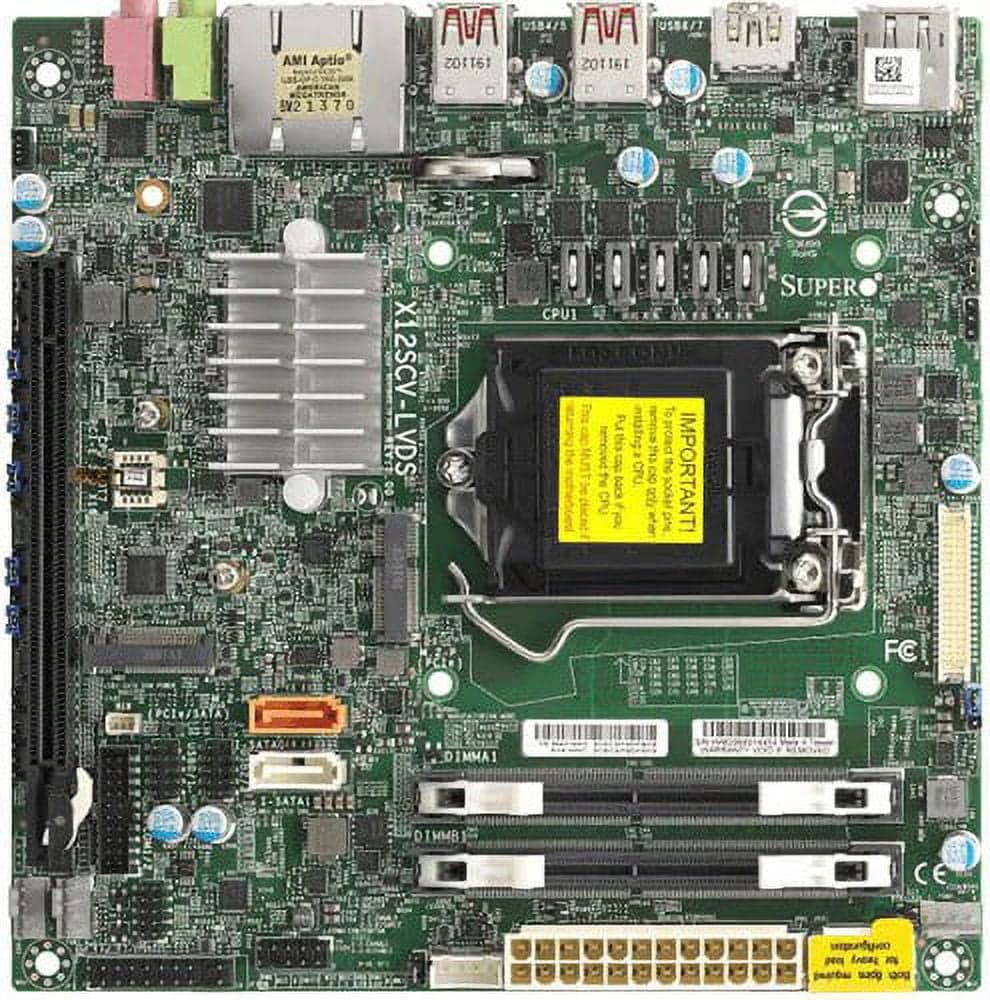

Supermicro X12SCV-LVDS Mini-ITX Motherboard — LGA1200 (Comet Lake), Intel W480 PCH, PCIe 3.0 x16 — Full Warranty

Compact Mini-ITX Supermicro X12SCV-LVDS built on the Intel® W480E (Comet Lake) platform for LGA1200 systems. Supports 10th Generation Intel® Core™ i9/Core™ i7/Core™ i5/Core™ i3 and Intel® Xeon® W-1200 processors in a single Socket LGA-1200 (Socket H5); CPU TDP support up to 65W. Memory: Two SO-DIMM slots supporting up to 64GB DDR4 ECC/non-ECC at DDR4-2933MHz. Expansion and storage: One PCIe 3.0 x16 slot (16/NA or 8/8). One M.2 M-Key slot (PCIe 3.0 x4) supporting 2242/2280 devices and one M.2 E-Key slot (CNVi/PCIe 3.0 x1/USB) for 2230 modules. Intel® W480E provides 2 SATA3 (6 Gbps) ports with RAID 0 and 1 support. Networking: Includes a Single LAN with Intel® PHY I219LM LAN controller and a Single LAN with Intel® Ethernet Controller I210-AT. Display outputs: 2 HDMI ports, 1 DisplayPort (DP) port and 1 LVDS port. Capable of driving 3 independent displays using HDMI 2.0a/HDMI1.4/DP/LVDS. Form factor: Mini ITX. Full Warranty included.
