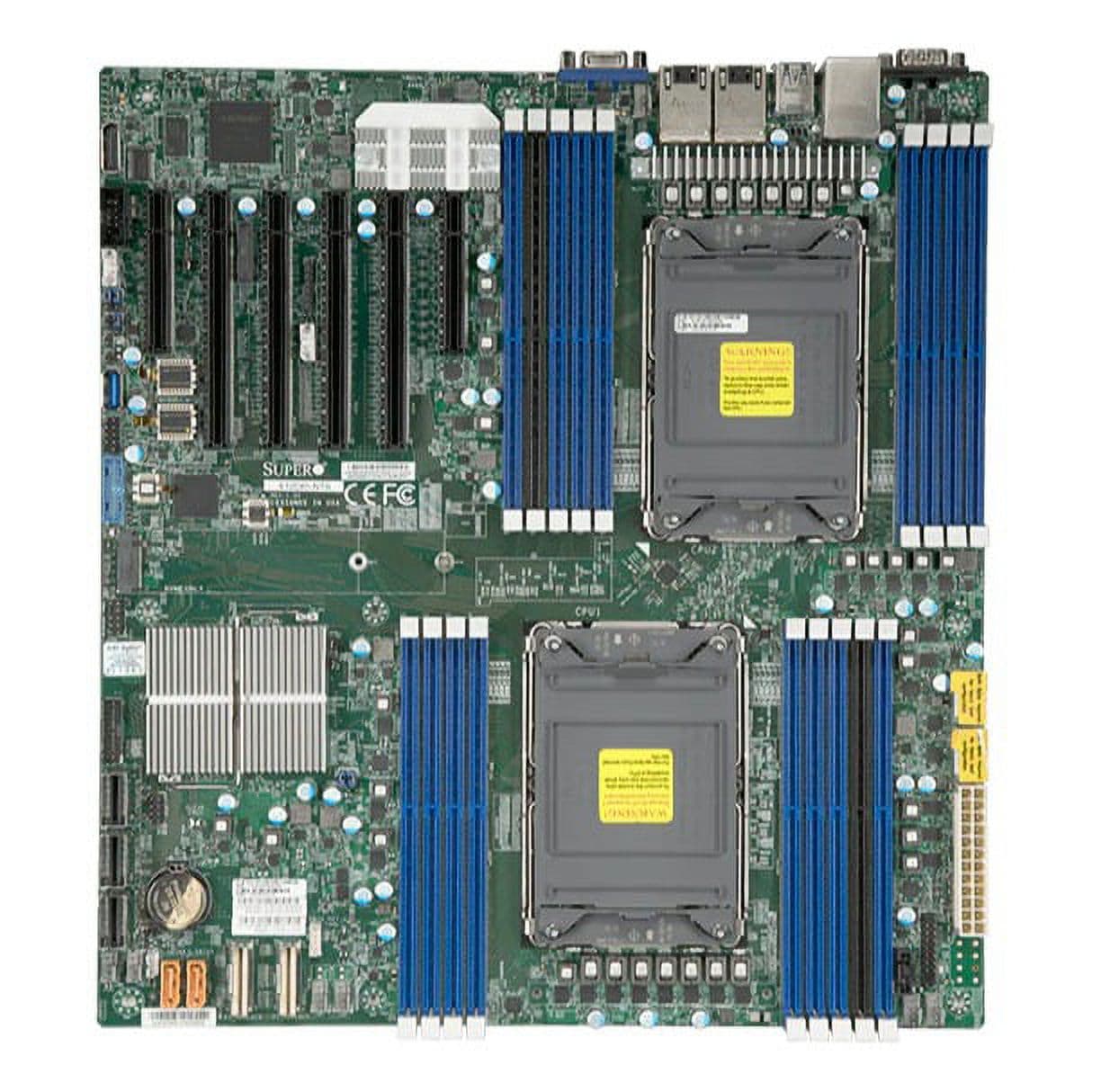

Supermicro X12DPI-N6 EATX Server Motherboard — Intel C621A, Dual LGA-4189 (Socket P+), DDR4-3200MHz, 3rd Gen Intel Xeon Scalable

Platform and CPU: Built for 3rd Gen Intel Xeon Scalable processors in a dual-socket LGA-4189 (Socket P+) configuration. Supports CPUs with up to 270W TDP and features 3 UPI links running up to 11.2 GT/s. Chipset: Intel C621A. Memory: 18 DIMM slots supporting DDR4-3200MHz. Memory configurations include up to 4TB 3DS ECC RDIMM, up to 4TB 3DS ECC LRDIMM, or up to 4TB Intel Optane Persistent Memory 200 Series (DDR4-3200MHz). Note: P1-DIMMB2 and P2-DIMMB2 are reserved for Intel Optane Persistent Memory 200 Series only. Expansion: PCIe 4.0 expansion includes 2 x PCI-E 4.0 x8 slots, 4 x PCI-E 4.0 x16 slots, and 2 x PCI-E 4.0 NVMe x8 slots. Onboard storage: Intel C621A-managed 14 x SATA3 (6 Gbps) ports with RAID support for RAID 0, 1, 5, 10. Internal M.2: one M.2 (M-Key) supporting PCI-E 4.0 x4, compatible with 2280 and 22110 form factors. Networking and I/O: Dual Gigabit LAN powered by Intel i350 controllers. Video outputs include 2 VGA ports (one on the rear bezel and one on the front panel).
