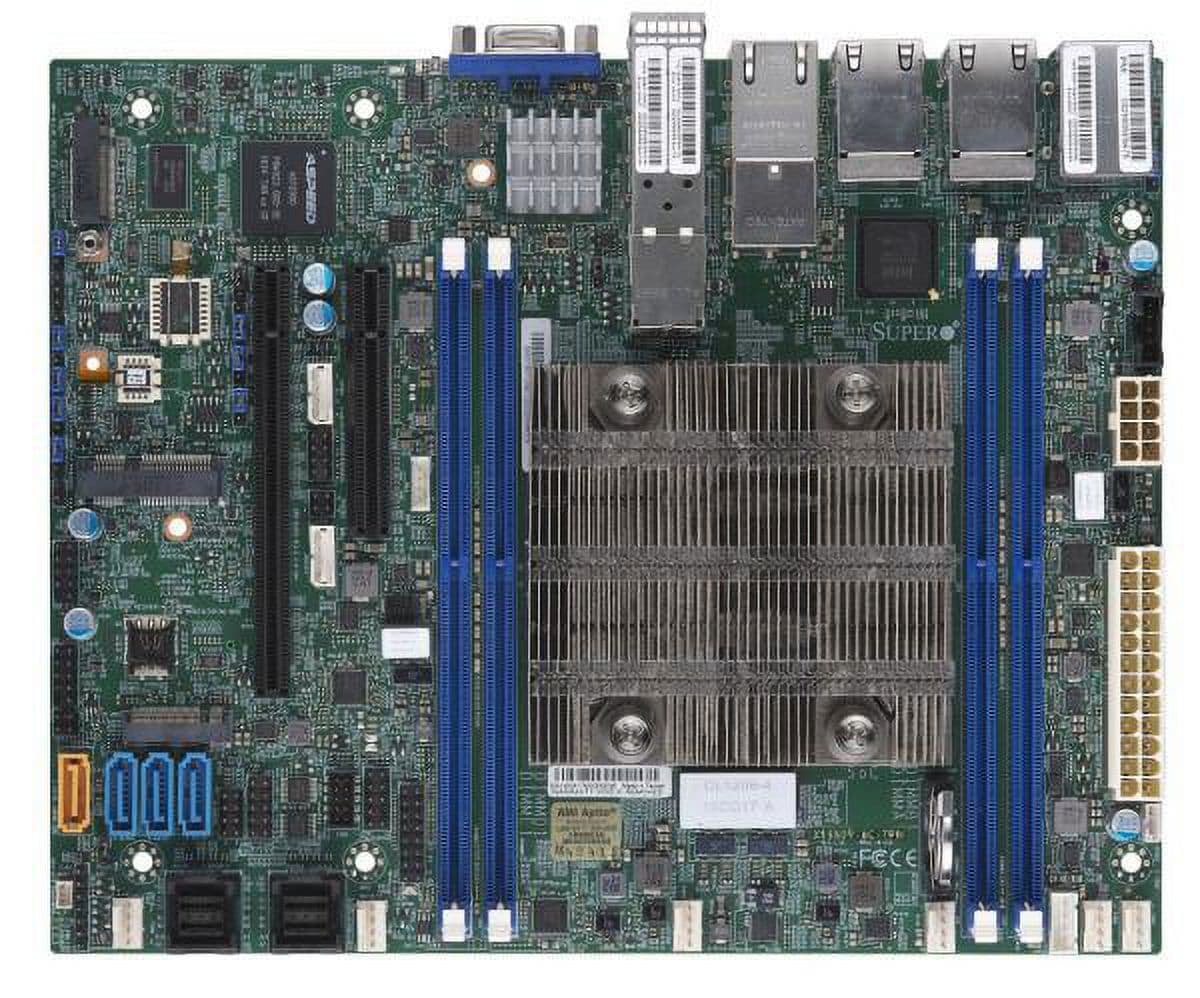

Supermicro X11SDV-8C-TP8F Flex ATX Motherboard — Intel Xeon D-2146NT, DDR4-2133MHz, Intel Quick Assist

Supermicro X11SDV-8C-TP8F Flex ATX board built around the Intel Xeon Processor D-2146NT. CPU TDP supports Up to 80W TDP and the platform includes Intel Quick Assist Technology. Memory: Up to 256GB Registered ECC RDIMM, DDR4-2133MHz; Up to 512GB LRDIMM LRDIMM, DDR4-2133MHz, in 4 DIMM slots. Expansion and internal I/O: 1 PCI-E 3.0 x8, 1 PCI-E 3.0 x16, 1 Mini-PCI-E, and 2 PCI-E 3.0 NVMe x4 Internal Port(s). Onboard M.2 and U.2: 1 M.2 M-Key SATA/PCI-E 3.0 x4, 2280; 1 M.2 B-Key SATA/PCI-E 3.0 x2, 3042; U.2 Interface: 2 PCI-E 3.0 x4. Storage controller: SoC controller for 12 SATA3 (6 Gbps) ports with RAID 0,1,5,10 support. Networking: Quad LAN with Intel Ethernet Controller I350-AM4, plus Dual LAN with 10G SFP+ LAN via SoC and Dual LAN with 10Gbase-T. Power and front/back I/O: Supports 12V DC power input and provides 1 VGA D-Sub Connector port. System on Chip.
